Price range: £61.50 through £126.10 ex VAT (£73.80 – £151.32 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Compression Boss Pipe, available in 70mm, 100mm, 150mm. Cast iron, supplied factory coated.
Product codes: HS3090 (70mm), HS4090 (100mm), HS6090 (150mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

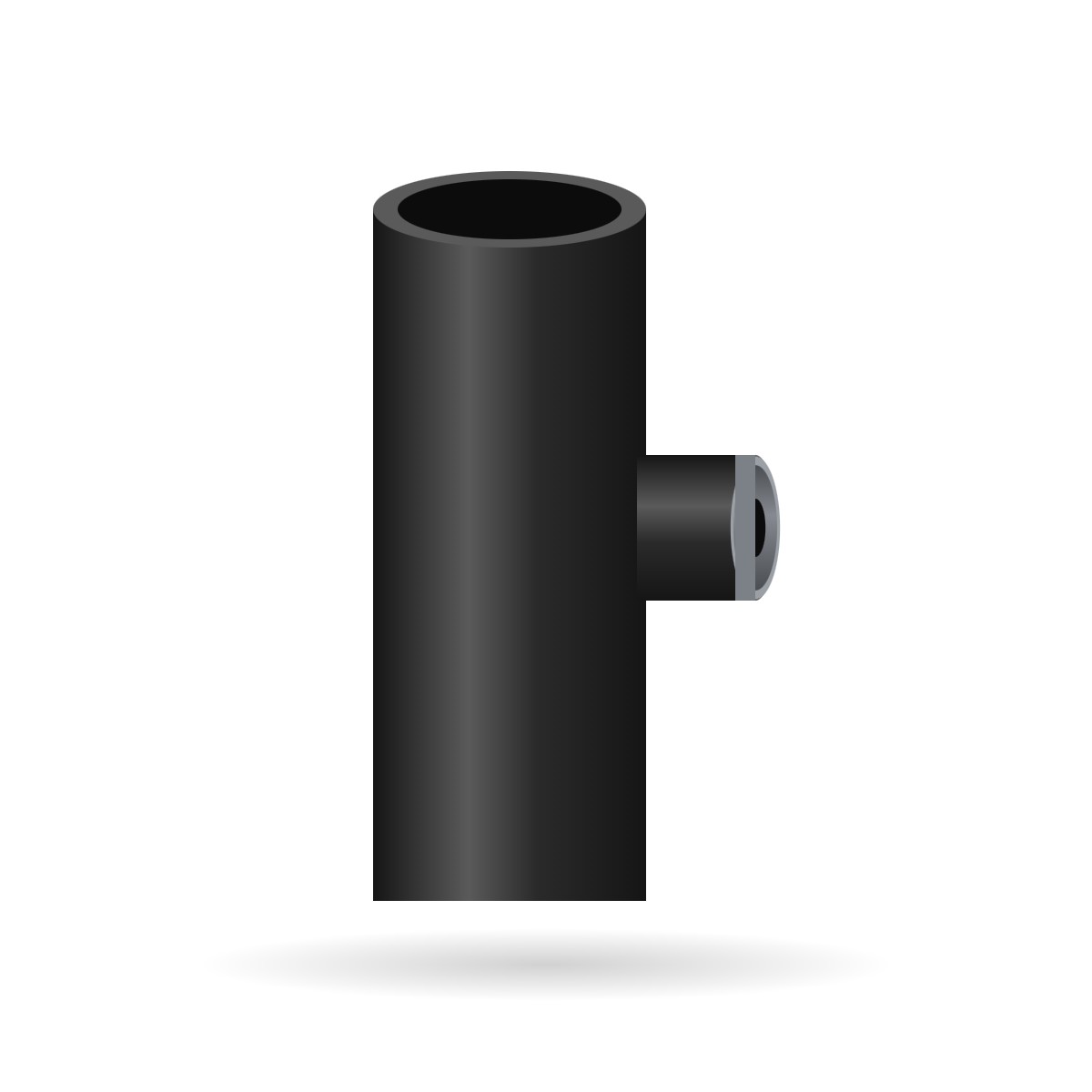

A pipe with a 50mm rubber compression boss. A plastic or copper waste pipe pushes straight into the boss and seals, with no threading or adaptor.
Available in 3 sizes, from 70mm to 150mm. Nominal weights run from 2 kg (70mm) to 4.2 kg (150mm).
Typical use: Connecting basin, bath or shower wastes into a cast iron stack.
| Size | Product code | Nominal weight |
|---|---|---|
| 70mm | HS3090 | 2 kg |
| 100mm | HS4090 | 2.5 kg |
| 150mm | HS6090 | 4.2 kg |
Often used with: Compression Boss Pipe Double, Manifold Connector, Double Spigot Pipe 3m, Rapid Connect Coupling.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 70mm (HS3090), 100mm (HS4090), 150mm (HS6090).
The rubber seal in the boss grips the waste pipe as it is pushed in. It gives a watertight joint without a threaded adaptor.
| Size | 70mm, 100mm, 150mm |
|---|
Prices are shown on each product page for both sizes and all three finishes. For project quantities, specification support, or conservation enquiries, call us on 0333 987 4452 or use the contact form on our website.
Cast iron hopper heads from Tuscan Foundry are available in Standard Black (a factory-applied primer and topcoat finish) and Heritage Colours. A linseed oil paint finish is also available, providing a vapour-permeable, historically authentic coating that is particularly appropriate for listed buildings and conservation projects. Full finish specifications are available from the team.
The H534 measures 430mm wide x 240mm deep x 366mm high, making it well suited to Victorian villas and townhouses.
Prices are shown on the product pages at tuscanfoundry.com. For volume orders or project pricing, please call 0333 987 4452 or use the contact form on our website.
Select your required size and finish options from the product page and add to cart for an instant price. For project quantities, bespoke requirements, or any specification queries, please call 0333 987 4452 or use the contact form at tuscanfoundry.com.
The H542A measures 240mm wide x 240mm deep x 290mm high, making it well suited to a compact square profile suited to smaller Georgian and Victorian properties, extensions and outbuildings.
The H540 measures 600mm wide x 340mm deep x 475mm high, making it well suited to substantial country houses, civic and ecclesiastical buildings.
The School Board Airbrick suits Victorian and Edwardian institutional, civic, and residential buildings where the square-grid airbrick pattern was standard — including school buildings, civic halls, estate housing, terrace houses, and warehouses. It is also appropriate on listed buildings and conservation area properties as a like-for-like replacement for worn square-grid cast iron vents.
Our cast iron hopper heads are available with 65mm, 75mm and 100mm round outlets, 75mm, 100mm and 125mm square outlets, and 100x75mm, 125x100mm and 150x125mm rectangular outlets, to match the downpipe already on site or specified for the project.
Yes. Cast iron is the material required by most conservation officers and listed building consents for the replacement or replication of traditional rainwater goods. Our hopper heads are produced in solid cast iron and we can assist with specification notes or material statements for planning purposes if required.
