£158.70 ex VAT (£190.44 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Manifold Connector. Cast iron, supplied factory coated.
Product code: HS4058.
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

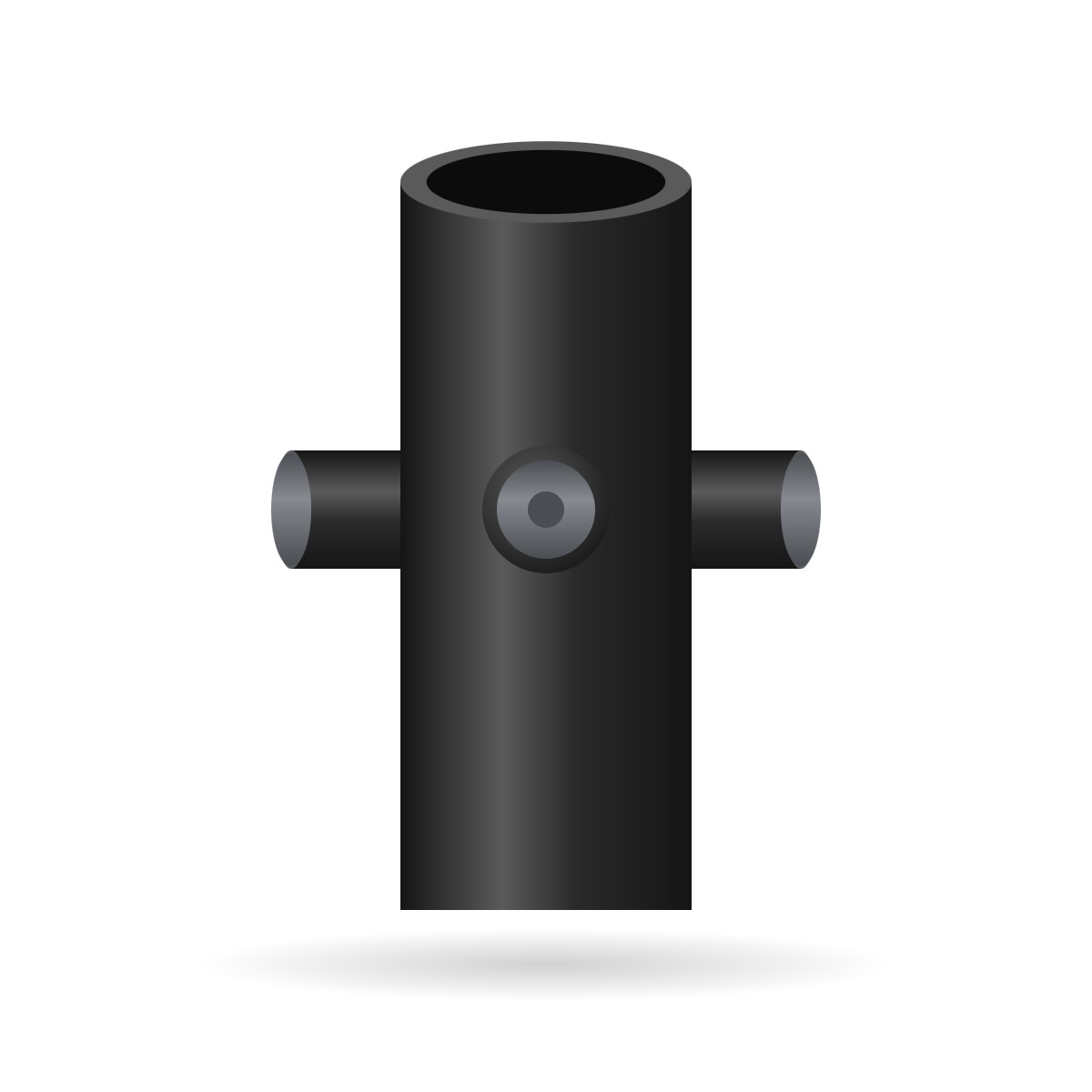

A 100mm manifold connector fitted with three rubber plugs. Each can be opened to take a 32mm or 40mm push-fit plastic or copper waste.
Product code HS4058. Nominal weight 3.5 kg.
Typical use: Several small waste connections into a stack at one level, typically in bathrooms and washrooms.
| Item | Product code | Nominal weight |
|---|---|---|
| Manifold Connector | HS4058 | 3.5 kg |
Often used with: Compression Boss Pipe, Double Spigot Pipe 3m, Rapid Connect Coupling.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
The product code is HS4058. Nominal weight 3.5 kg.
Up to three, one through each rubber plug. Unused plugs stay closed.
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
The Cast Iron Louvre Airbrick suits Victorian and Edwardian terraced housing, semi-detached properties, public houses, agricultural buildings, and workshop structures where the original airbrick was a louvre-face grille. The horizontal fin profile is widely found in British domestic and light industrial construction from the 1870s through to the 1950s.
Select your required size and finish options from the product page and add to cart for an instant price. For project quantities, bespoke requirements, or any specification queries, please call 0333 987 4452 or use the contact form at tuscanfoundry.com.
We do offer a range of Ogee patterned gutters in both straight and radius profiles. The straight profiles are much more common and as such cost less.
A hit and miss vent has a sliding plate on the reverse of the grille that can be moved to open or close the ventilation apertures. This allows airflow to be regulated without removing or replacing the grille. The vent can be fully open, partially open, or fully closed depending on ventilation requirements.
A corner hopper head collects rainwater from two gutters running at right angles and channels it into a single downpipe. They are typically required at internal roof valleys, on hipped roofs, and wherever two runs of gutter converge at a corner. The Regent H1A is designed specifically for this application and is sized to suit the most common gutter profiles.
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
Our cast iron hopper heads are available with 65mm, 75mm and 100mm round outlets, 75mm, 100mm and 125mm square outlets, and 100x75mm, 125x100mm and 150x125mm rectangular outlets, to match the downpipe already on site or specified for the project.
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
