Price range: £203.80 through £723.30 ex VAT (£244.56 – £867.96 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. High Pressure Stainless Steel Coupling, available in 50mm, 70mm, 100mm, 150mm, 200mm. Cast iron, supplied factory coated.
Product codes: HS2069 (50mm), HS3069 (70mm), HS4069 (100mm), HS6069 (150mm), HS8069 (200mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

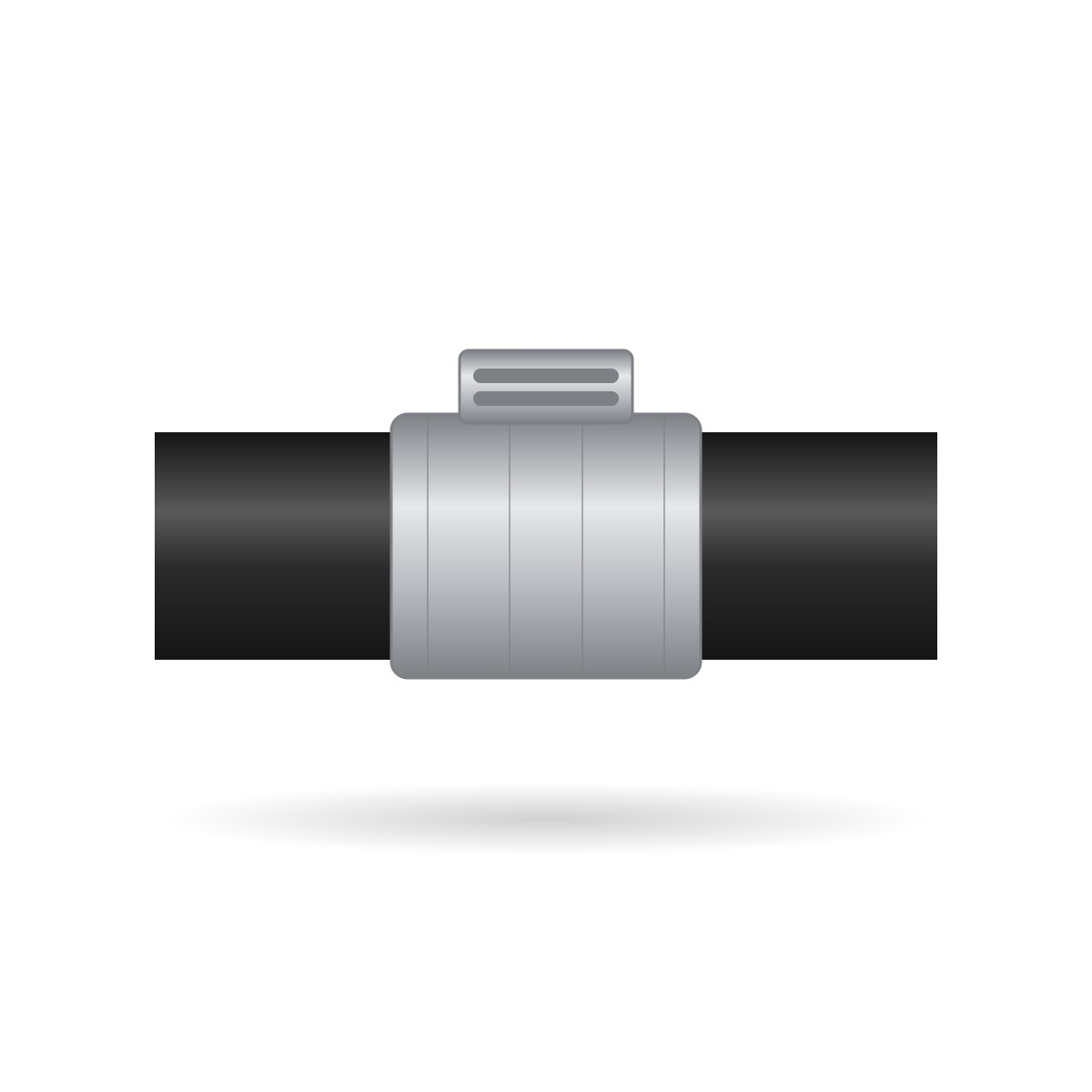

A heavy stainless steel coupling with a rubber sleeve, designed to hold joints that may come under internal pressure.
Available in 5 sizes, from 50mm to 200mm.
Typical use: Joints at the base of tall stacks, below changes of direction, in suspended drainage and anywhere surcharge is possible.
| Size | Product code |
|---|---|
| 50mm | HS2069 |
| 70mm | HS3069 |
| 100mm | HS4069 |
| 150mm | HS6069 |
| 200mm | HS8069 |
Often used with: Double Spigot Pipe 3m, Pipe Grip.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 50mm (HS2069), 70mm (HS3069), 100mm (HS4069), 150mm (HS6069), 200mm (HS8069).
Where the joint could be pressurised, for example at the foot of a tall stack, in suspended drainage that can back up, or near pumped discharges. Ordinary couplings can be pushed apart under pressure; these are built to resist it.
Follow the installation guidance for the pressure involved. In many cases the high performance coupling is used in place of a standard coupling plus grip.
| Size | 50mm, 70mm, 100mm, 150mm, 200mm |
|---|
