£97.10 ex VAT (£116.52 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Compression Boss Pipe Double, available in Opposed (100mm), At 90° (100mm). Cast iron, supplied factory coated.
Product codes: HS4091 (At 90° (100)), HS4092 (Opposed (100)).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

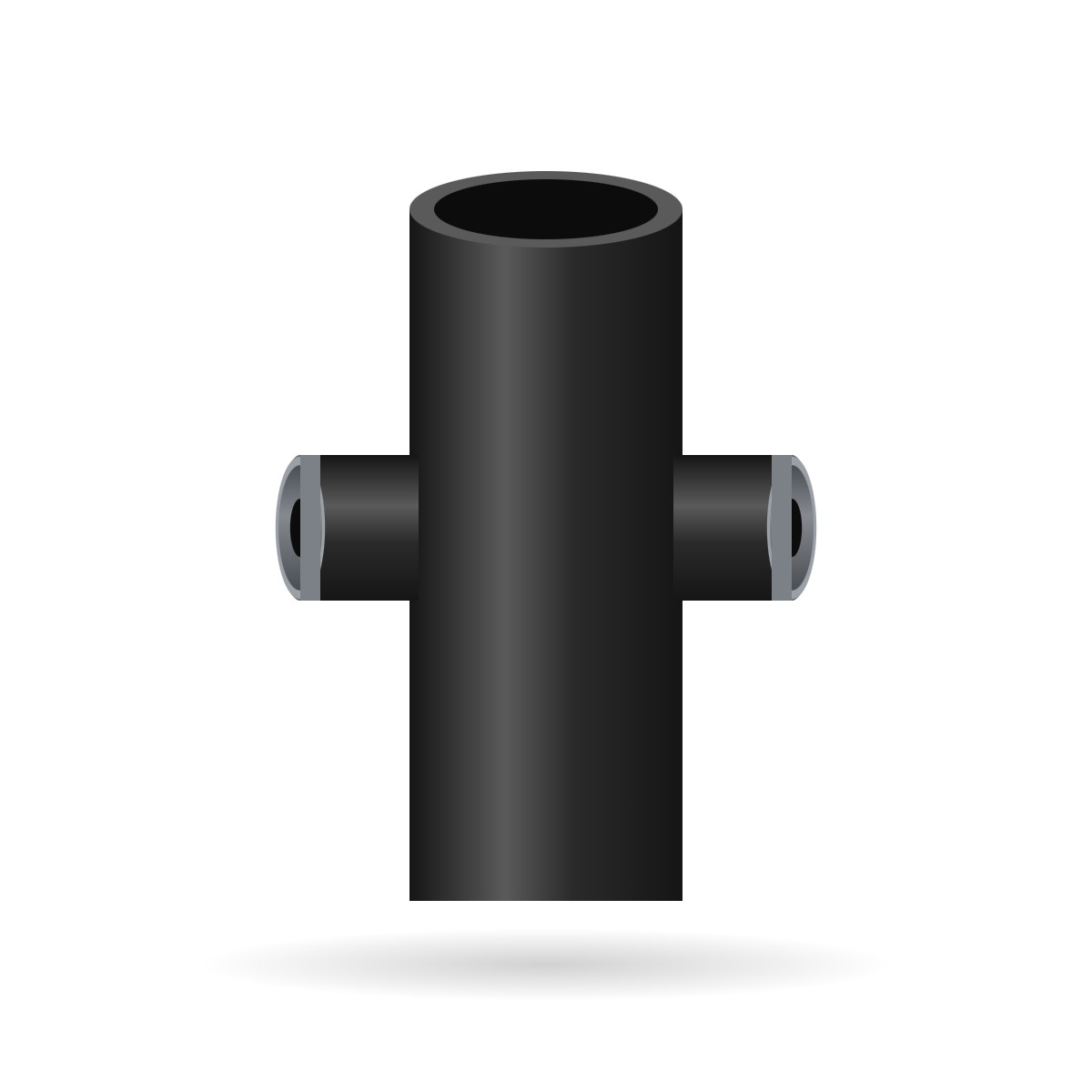

A 100mm pipe with two 50mm rubber compression bosses, either opposed or at 90°. Each boss takes a plastic or copper waste pipe directly, with no threading.
Available in 2 sizes, from At 90° (100mm) to Opposed (100mm). Nominal weights run from 3.2 kg (At 90° (100mm)) to 3.2 kg (At 90° (100mm)).
Typical use: Two waste connections, such as a basin and a bath, into a stack at one level.
| Size | Product code | Nominal weight |
|---|---|---|
| At 90° (100mm) | HS4091 | 3.2 kg |
| Opposed (100mm) | HS4092 | 3.2 kg |
Often used with: Compression Boss Pipe, Manifold Connector, Double Spigot Pipe 3m, Rapid Connect Coupling.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in At 90° (100mm) (HS4091), Opposed (100mm) (HS4092).
The rubber boss seal takes standard plastic or copper waste pipe. Check the outside diameter of your waste pipe against the boss seal before ordering.
Opposed bosses face in opposite directions, for appliances on either side of the stack. Bosses at 90° suit appliances on two adjacent walls.
| Size | Opposed (100mm), At 90° (100mm) |
|---|
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
