Established 1893 | BS 460:2002 Certified | UK & International Supply | Expert Technical Support | 0333 987 4452
Price range: £78.90 through £170.00 ex VAT (£94.68 – £204.00 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Pipe Grip, available in 50mm, 70mm, 100mm, 150mm, 200mm. Cast iron, supplied factory coated.
Product codes: HS2060 (50mm), HS3060 (70mm), HS4060 (100mm), HS6060 (150mm), HS8060 (200mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

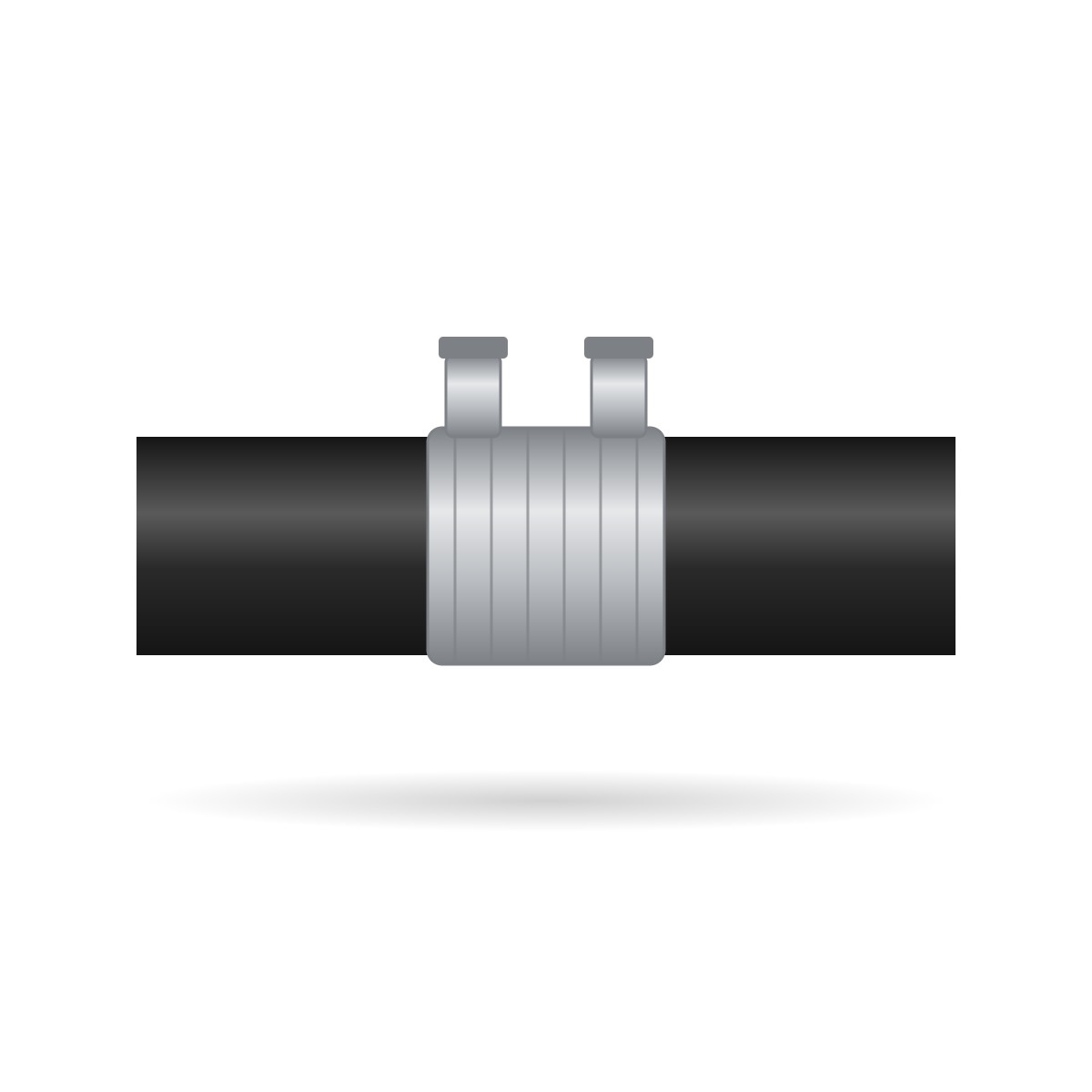

A zinc plated pipe grip that clamps over a coupled joint to stop the pipes being pushed apart.
Available in 5 sizes, from 50mm to 200mm.
Typical use: Joints that may come under internal pressure: the foot of tall stacks, below changes of direction and blank ends.
| Size | Product code |
|---|---|
| 50mm | HS2060 |
| 70mm | HS3060 |
| 100mm | HS4060 |
| 150mm | HS6060 |
| 200mm | HS8060 |
Often used with: Rapid Connect Coupling, Double Spigot Pipe 3m, High Pressure Stainless Steel Coupling.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 50mm (HS2060), 70mm (HS3060), 100mm (HS4060), 150mm (HS6060), 200mm (HS8060).
Wherever a joint could be pushed apart by pressure, such as at the foot of a stack, below a change of direction or behind a blank end. The installation guidance sets out where grips are required.
| Size | 50mm, 70mm, 100mm, 150mm, 200mm |
|---|
Eared LCC pipe is fixed through ears cast on the socket. Plain LCC pipe is fixed with holdfasts driven into the mortar joint, screw-to-wall holderbats, build-in holderbats or loose ears. Fix every length below the socket so each joint is supported. Traditional Express uses adjustable brackets.
Prices are shown on each product page. For project quantities, bespoke specifications, or conservation-related queries, please call us on 0333 987 4452 or use the contact form on our website.
Available in two sizes: 225mm x 82mm (single airbrick course height) and 225mm x 150mm (double course height). Both sizes fit standard brick coursing positions and install flush into the wall face.
Yes. Cast iron hopper heads are the historically correct choice for listed and period buildings, and a like-for-like cast iron replacement is generally accepted without objection by conservation officers. We manufacture to BS 460 for genuine heritage character and durability.
Prices are shown on the product page. For project quantities, multiple pattern orders, or a formal quotation, call 0333 987 4452 or use the contact form.
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Our cast iron hopper heads are available with 65mm, 75mm and 100mm round outlets, 75mm, 100mm and 125mm square outlets, and 100x75mm, 125x100mm and 150x125mm rectangular outlets, to match the downpipe already on site or specified for the project.
The Antique Black cast iron version is suitable for external use. The Polished Lacquered version is best suited to interiors or sheltered external locations where the polished finish will be protected from weathering. The Polished Brass version is suited to interior and semi-exposed locations. For external applications on exposed elevations, the Antique Black finish is the recommended specification.
Our cast iron hopper heads are available with 65mm, 75mm and 100mm round outlets, 75mm, 100mm and 125mm square outlets, and 100x75mm, 125x100mm and 150x125mm rectangular outlets, to match the downpipe already on site or specified for the project.
Select your required size and finish options from the product page and add to cart for an instant price. For project quantities, bespoke requirements, or any specification queries, please call 0333 987 4452 or use the contact form at tuscanfoundry.com.
