Price range: £16.90 through £25.50 ex VAT (£20.28 – £30.60 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Fix Connector, available in 50mm, 70mm, 100mm. Cast iron, supplied factory coated.
Product codes: HS2068 (50mm), HS3068 (70mm), HS4068 (100mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

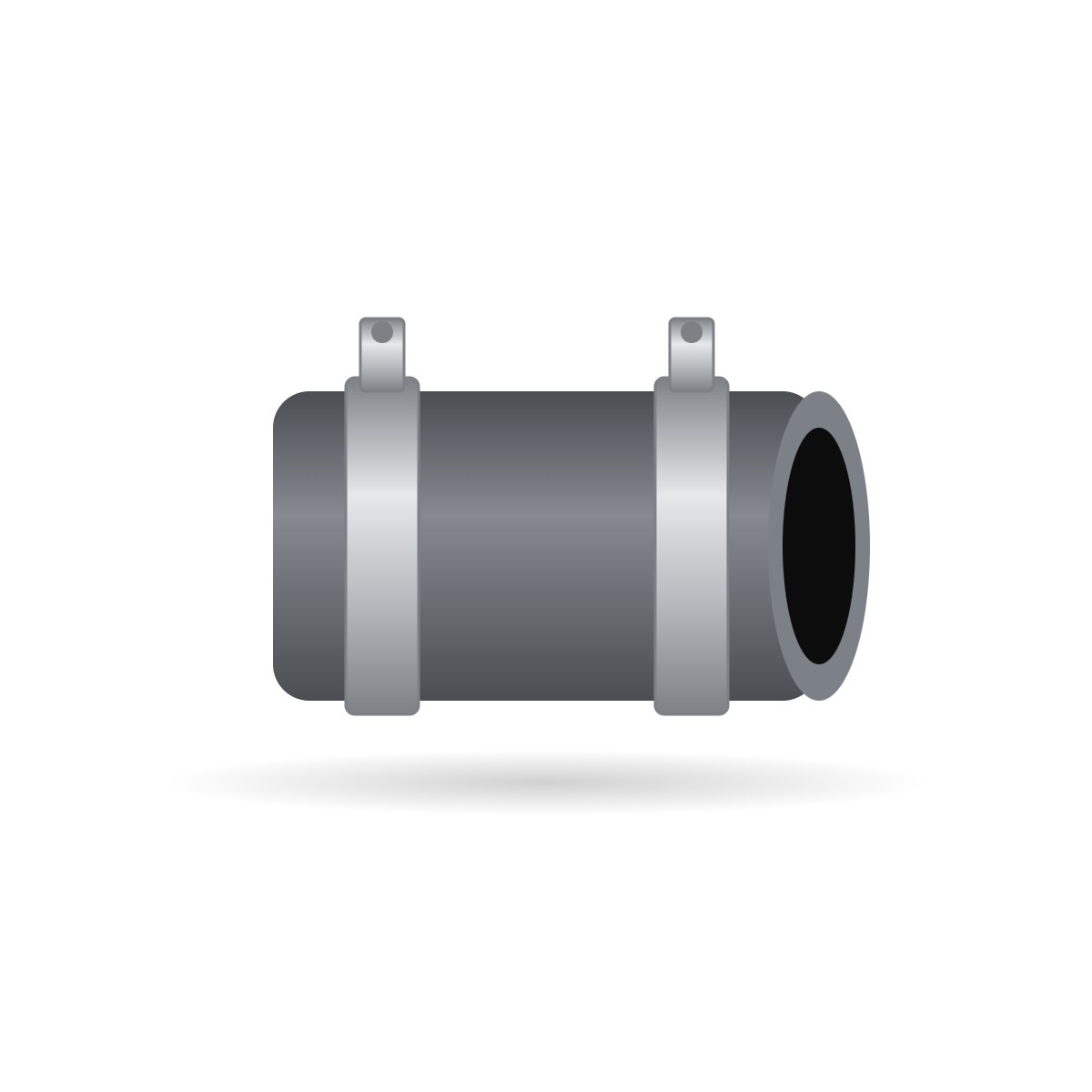

A rubber connector that joins cast iron pipe to pipe of a different material or outside diameter, such as plastic waste pipe or existing pipework. Each size accepts a range of outside diameters.
Available in 3 sizes, from 50mm to 100mm.
Typical use: Connecting waste branches or existing pipework into a cast iron stack.
| Size | Product code |
|---|---|
| 50mm | HS2068 |
| 70mm | HS3068 |
| 100mm | HS4068 |
Often used with: Compression Boss Pipe, Manifold Connector, Double Spigot Pipe 3m.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 50mm (HS2068), 70mm (HS3068), 100mm (HS4068).
Each size seals over a range of outside diameters: the 50mm accepts 40–56mm, the 70mm 56–75mm and the 100mm 104–110mm. Measure the pipe you are connecting before ordering.
| Size | 50mm, 70mm, 100mm |
|---|
Our cast iron hopper heads are available with 65mm, 75mm and 100mm round outlets, 75mm, 100mm and 125mm square outlets, and 100x75mm, 125x100mm and 150x125mm rectangular outlets, to match the downpipe already on site or specified for the project.
Yes. Cast iron is the material required by most conservation officers and listed building consents for the replacement or replication of traditional rainwater goods. Our hopper heads are produced in solid cast iron and we can assist with specification notes or material statements for planning purposes if required.
A corner hopper head collects rainwater from two gutters running at right angles and channels it into a single downpipe. They are typically required at internal roof valleys, on hipped roofs, and wherever two runs of gutter converge at a corner. The Regent H1A is designed specifically for this application and is sized to suit the most common gutter profiles.
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Our cast iron hopper heads are available in a standard primed and black-painted finish, ready for on-site topcoats. Heritage colour finishes and factory-applied linseed oil paint are available on request. Linseed oil paint is a vapour-permeable, period-appropriate finish particularly well suited to listed buildings and conservation area properties.
Yes. Cast iron hopper heads are the historically correct choice for listed and period buildings, and a like-for-like cast iron replacement is generally accepted without objection by conservation officers. We manufacture to BS 460 for genuine heritage character and durability.
The Iron Works Patterned Hit & Miss Vent suits Victorian and Edwardian buildings where decorative cast iron or brass ventilation grilles were part of the original specification — including terrace houses, civic buildings, churches, entrance halls, and estate properties. It is appropriate on listed buildings and conservation area properties as a like-for-like decorative vent replacement, and on new heritage-quality construction where period detailing is required.
The polished chrome telescopic rooflight hand winder opener is available in multiple sizes. The telescopic mechanism adjusts to accommodate varying rooflight positions and throw requirements. For a full list of available sizes, visit tuscanfoundry.com or call 0333 987 4452.
Yes. Traditional cast iron column radiators are the authentic choice for period interiors, and plain patterns such as the Victorian 4 column are usually preferred by conservation officers. Replacing radiators or altering pipe runs in a listed building may need listed building consent, so speak to the conservation officer before work starts.
A hit and miss vent has a sliding plate on the reverse of the grille that can be moved to open or close the ventilation apertures. This allows airflow to be regulated without removing or replacing the grille. The vent can be fully open, partially open, or fully closed depending on ventilation requirements.
