Price range: £61.50 through £120.10 ex VAT (£73.80 – £144.12 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Boss Pipe Single, available in 70mm, 100mm, 150mm. Cast iron, supplied factory coated.
Product codes: HS3053 (70mm), HS4053 (100mm), HS6053 (150mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

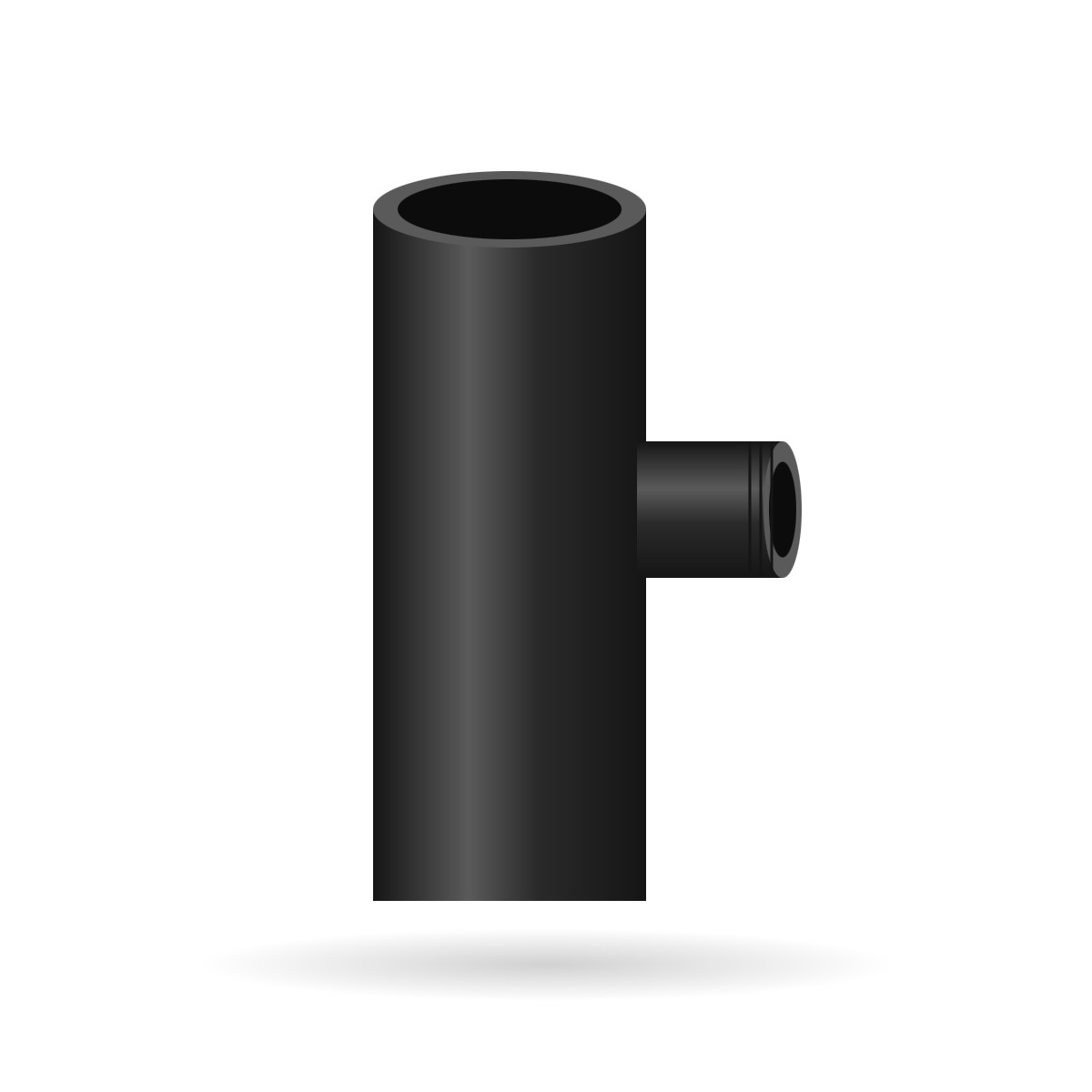

A pipe with a single 2″ BSPT threaded boss for a small-bore waste connection.
Available in 3 sizes, from 70mm to 150mm. Nominal weights run from 1.6 kg (70mm) to 3.6 kg (150mm).
Typical use: Basin, bath or shower waste connections into a stack.
| Size | Product code | Nominal weight |
|---|---|---|
| 70mm | HS3053 | 1.6 kg |
| 100mm | HS4053 | 2.1 kg |
| 150mm | HS6053 | 3.6 kg |
Often used with: Boss Pipe Double, Double Spigot Pipe 3m, Rapid Connect Coupling, Compression Boss Pipe.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 70mm (HS3053), 100mm (HS4053), 150mm (HS6053).
Screw a threaded waste adaptor into the 2″ BSPT boss, then connect the plastic waste pipe to the adaptor.
| Size | 70mm, 100mm, 150mm |
|---|
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Our cast iron hopper heads are available in a standard primed and black-painted finish, ready for on-site topcoats. Heritage colour finishes and factory-applied linseed oil paint are available on request. Linseed oil paint is a vapour-permeable, period-appropriate finish particularly well suited to listed buildings and conservation area properties.
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Prices are shown on the product page. For project quantities, multiple pattern orders, or a formal quotation, call 0333 987 4452 or use the contact form.
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
The Antique Black finish suits Victorian, Edwardian, and inter-war buildings where ventilation ironwork was painted rather than polished — estate houses, terrace housing, civic buildings, and rural properties. It is also correct for listed buildings and conservation area properties requiring like-for-like replacement of original ornamental cast iron vents.
The Cast Iron Louvre Airbrick (F020802AFC) is available in 225mm × 75mm, 225mm × 150mm, and 225mm × 225mm — standard brick course heights. All sizes share a consistent depth for straightforward like-for-like replacement of original cast iron louvre airbricks.
Yes. Cast iron hopper heads are the historically correct choice for listed and period buildings, and a like-for-like cast iron replacement is generally accepted without objection by conservation officers. We manufacture to BS 460 for genuine heritage character and durability.
The Polished Lacquered finish suits buildings where period ironwork was finished bright rather than painted — formal entrance elevations, listed properties, and settings where the grille contributes to the decorative programme of the facade. It is appropriate for conservation specifications and high-specification heritage new build.
Yes. Cast iron hopper heads are the historically correct choice for listed and period buildings, and a like-for-like cast iron replacement is generally accepted without objection by conservation officers. We manufacture to BS 460 for genuine heritage character and durability.
