Price range: £10.80 through £334.00 ex VAT (£12.96 – £400.80 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Blank End, available in 50mm, 70mm, 100mm, 150mm, 200mm, 250mm, 300mm. Cast iron, supplied factory coated.
Product codes: HS2051 (50mm), HS3051 (70mm), HS4051 (100mm), HS6051 (150mm), HS8051 (200mm), HS10051 (250mm), HS12051 (300mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

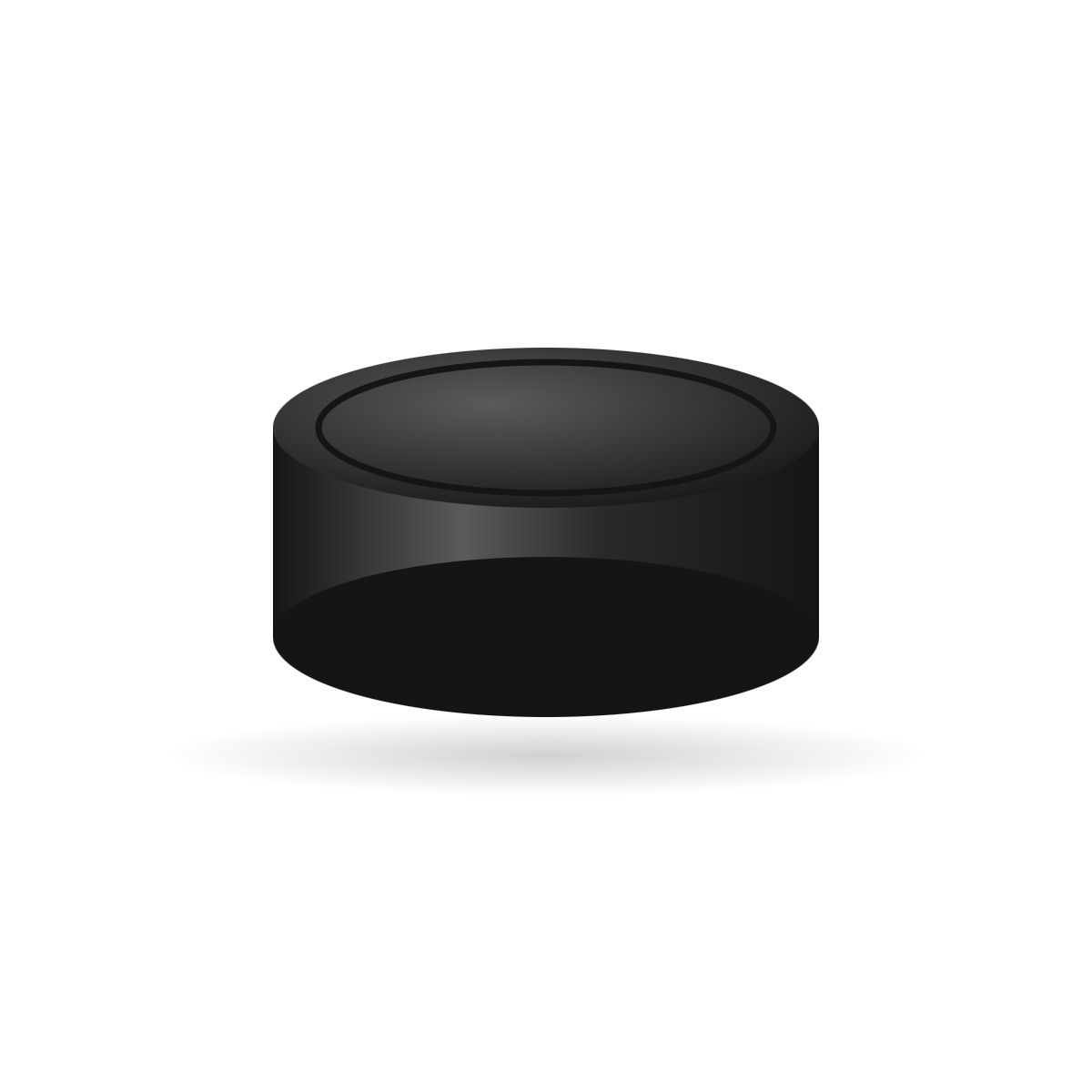

A cast iron blank end that closes the open end of a pipe or fitting. It is held in place with a standard coupling.
Available in 7 sizes, from 50mm to 300mm. Nominal weights run from 0.2 kg (50mm) to 10.9 kg (300mm).
Typical use: Closing redundant branches, pipe ends and future connection points.
| Size | Product code | Nominal weight |
|---|---|---|
| 50mm | HS2051 | 0.2 kg |
| 70mm | HS3051 | 0.4 kg |
| 100mm | HS4051 | 0.8 kg |
| 150mm | HS6051 | 1.6 kg |
| 200mm | HS8051 | 2.9 kg |
| 250mm | HS10051 | 7.2 kg |
| 300mm | HS12051 | 10.9 kg |
Often used with: Blank End Drilled and Tapped, Rapid Connect Coupling, Pipe Grip.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 50mm (HS2051), 70mm (HS3051), 100mm (HS4051), 150mm (HS6051), 200mm (HS8051), 250mm (HS10051), 300mm (HS12051).
It fits like a pipe end, held by a coupling. If the end could come under pressure, use a pipe grip or high performance coupling.
| Size | 50mm, 70mm, 100mm, 150mm, 200mm, 250mm, 300mm |
|---|
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
Yes. Cast iron ornamental vents in period patterns are frequently specified on listed buildings and conservation area properties as like-for-like replacements for original Victorian ironwork. Conservation officers generally accept cast iron in period patterns without objection. We can supply specifications to support planning and listed building consent applications.
Yes. Bespoke copy casting is a core service at Tuscan Foundry Products. We can replicate any cast iron gutter, downpipe, hopper head, or fitting from drawings, detailed photographs, or a physical sample or surviving section. Each commission is assessed individually. Lead time is typically 12 to 14 weeks, and quantities as low as a single piece can be considered depending on pattern-making costs.
Our brackets are more commonly used on cast iron rainwater systems. Unlike plastic, cast iron is heavy and the weight keeps the gutter in position. As such our brackets do not normally have retaining clips which could lead to plastic or lightweight gutters blowing out of the bracket. The profile of your gutter should match that of our bracket but without the weight to keep it in place you may well encounter problems in bad weather.
The H540 measures 600mm wide x 340mm deep x 475mm high, making it well suited to substantial country houses, civic and ecclesiastical buildings.
Yes. Cast iron hopper heads are the historically correct choice for listed and period buildings, and a like-for-like cast iron replacement is generally accepted without objection by conservation officers. We manufacture to BS 460 for genuine heritage character and durability.
Our cast iron hopper heads are available with 65mm, 75mm and 100mm round outlets, 75mm, 100mm and 125mm square outlets, and 100x75mm, 125x100mm and 150x125mm rectangular outlets, to match the downpipe already on site or specified for the project.
The H1 is available to accept round pipe connections in 65mm, 75mm, 100mm, and 150mm diameters. The 65mm and 75mm variants measure 305mm wide by 197mm deep and 210mm high. The 100mm variant measures 355mm wide by 230mm deep and 240mm high. A 150mm connection option is also available — please contact the team for dimensions.
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
The Iron Works Patterned Hit & Miss Vents are available in two sizes: 225mm × 82mm (single-course, suitable for standard airbrick positions) and 225mm × 150mm (double-course format). Both sizes are available in all three finishes: Antique Black, Polished Lacquered, and Polished Brass.
