Shop / Heating & Radiators / Board School Cast Iron Radiators / Board School 3 Column Cast Iron Radiator

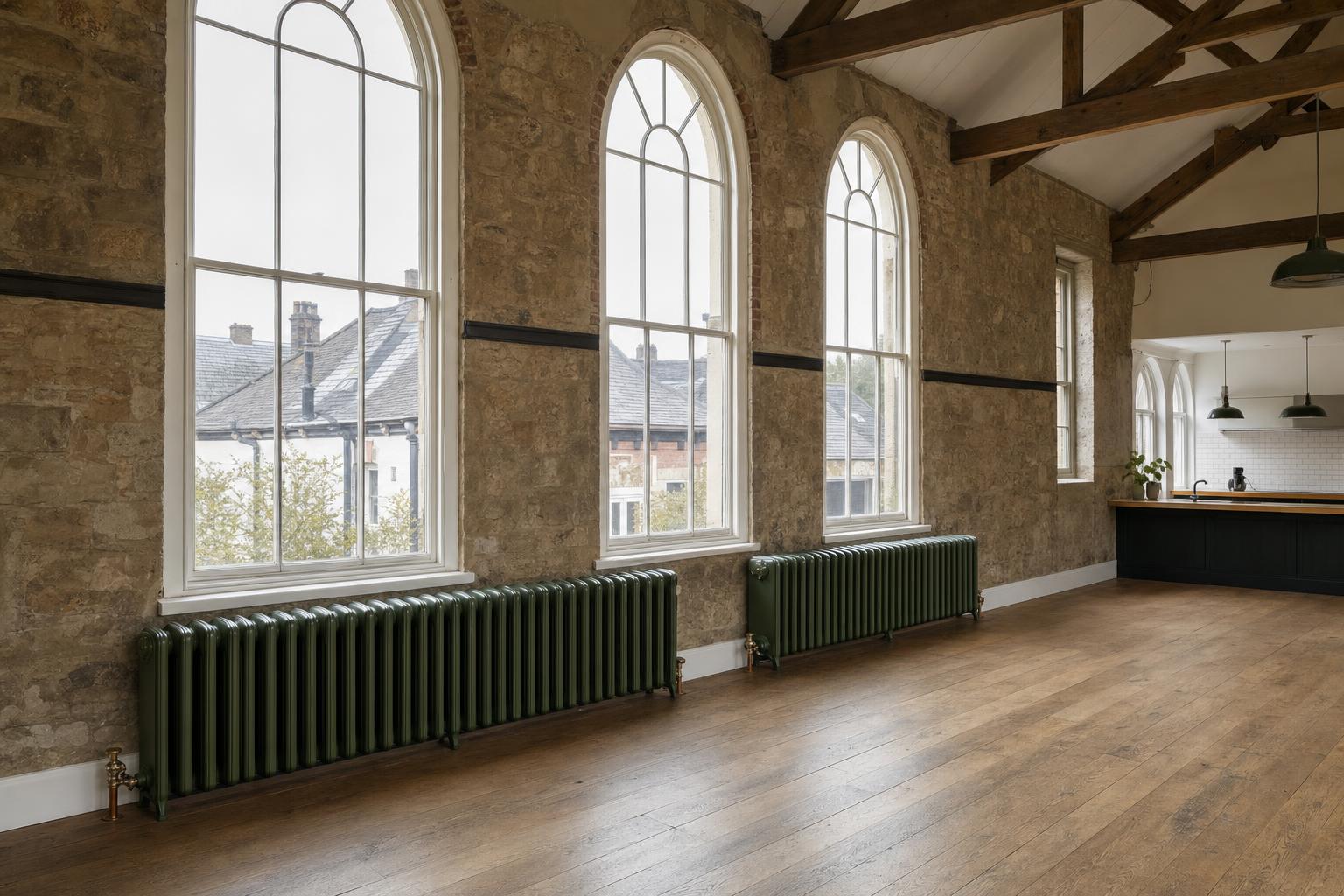

Board School three-column cast iron radiators with rounded tops beneath tall windows in a converted Victorian schoolroom.
CODE BS3 Categories Board School Cast Iron Radiators, Heating & Radiators

Board School 3 Column Cast Iron Radiator

£410.70 – £7,683.00Price range: £410.70 through £7,683.00 ex VAT (£492.84 – £9,219.60 inc VAT)

Board School 3 column cast iron radiator, 520mm to 920mm high, 200mm deep. Up to 176W per section at ΔT50. Primer or factory colour, 3 to 30 sections, priced by number of sections.

Download the technical data sheet · PDF

View the factory colour chart · PDF

Clear

The Board School 3 column has the rounded section tops and crisp incised line detail of the radiators fitted in Victorian board schools, chapels and public buildings after the 1870 Education Act. Its third column gives more output per section, for the large, lofty rooms these buildings are known for. At 200mm deep it gives up to 176W per section at ΔT50, and comes in four heights from 520mm to 920mm.

Choose primer, ready to paint on site to match the room’s joinery or a historic colour scheme (typically 14 days), or a factory colour from our standard range of 13 (typically two to three weeks; tell us your colour from the colour chart when you order). Each section is 80mm wide and 200mm deep. Outputs are tested to BS EN 442; radiators are rated to 6 bar working pressure, have ½” BSP connections and carry a 10-year guarantee.

Heights, outputs and prices

Height Output ΔT50 Output ΔT30 Weight Factory built to Primer Factory colour
520mm 97W 50.0W 9kg 15 sections £136.90 £155.40
620mm 119W 61.3W 10.52kg 15 sections £162.30 £180.80
720mm 138W 71.1W 12.64kg 10 sections £183.50 £202.00
920mm 176W 90.6W 16.18kg 10 sections £237.60 £256.10

Outputs, weights and prices are per section, ex VAT. Choose from 3 to 30 sections; radiators longer than the factory-built limit are joined on site.

Specification

Pattern Board School 3 column, 3 columns
Height 520mm to 920mm, floor-standing on integrated feet
Depth 200mm
Section width 80mm, plus 26mm overall for the end bushes
Length Sections × 80mm + 26mm (10 sections = 826mm; 20 sections = 1,626mm)
Finish Primer, or a factory colour from the standard range of 13
Connections and pressure ½” BSP · 6 bar working pressure
Guarantee 10 years against manufacturing defects

Sections are cast, so allow ±2mm per section and set valve tails once the radiator has arrived. Valves are sold separately: see our radiator valves.

Choosing and sizing

The Board School 3 column is usually chosen for large schoolrooms, chapels, halls and converted public buildings with high ceilings. To size it, divide the room’s heat loss by the output per section at your system’s temperature and round up. On a heat pump at ΔT30 a section gives about half its ΔT50 output. Our guides to sizing cast iron radiators for a period room and cast iron radiators with heat pumps work through examples, and the 2026 specification guide (PDF) lists every pattern and output. See the radiators in period settings in our radiator gallery, or compare with the plain Victorian 4 column.

Send us your room heat losses and we will prepare a radiator schedule with section counts and lengths at boiler and heat pump temperatures. Call 0333 987 4452 or contact us.

Images are illustrative. The section count and finish shown may differ from your order.

Additional information

Height

520mm, 620mm, 720mm, 920mm

Sections

3 Sections, 4 Sections, 5 Sections, 6 Sections, 7 Sections, 8 Sections, 9 Sections, 10 Sections, 11 Sections, 12 Sections, 13 Sections, 14 Sections, 15 Sections, 16 Sections, 17 Sections, 18 Sections, 19 Sections, 20 Sections, 21 Sections, 22 Sections, 23 Sections, 24 Sections, 25 Sections, 26 Sections, 27 Sections, 28 Sections, 29 Sections, 30 Sections

Finish

Primer, Factory colour

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is the output of the Board School 3 column cast iron radiator?
Per section at ΔT50 (BS EN 442): 520mm 97W, 620mm 119W, 720mm 138W, 920mm 176W. At heat pump temperatures of ΔT30 a section gives about half that, for example 90.6W at 920mm.
How long is a Board School 3 column radiator?
Length is the number of sections multiplied by 80mm, plus 26mm for the end bushes. A 10-section radiator is 826mm long and a 20-section radiator 1,626mm. Allow ±2mm per section for casting tolerance.
Is the Board School 3 column radiator suitable for a listed building?
Yes, in the right setting: large schoolrooms, chapels, halls and converted public buildings with high ceilings. Replacing radiators or altering pipe runs in a listed building may need listed building consent, so check with the conservation officer early.
What finishes are available on the Board School 3 column radiator?
Primer for painting on site, typically about one week, or a factory colour from our standard range of 20, typically two to three weeks. Tell us your colour from the colour chart when you order.
How much does a Board School 3 column radiator cost?
It is priced per section, from £136.90 ex VAT in primer at the lowest height, so a 3-section radiator starts at £410.70. Delivery is a flat £95 plus VAT per radiator order. Please call 0333 987 4452 or use the contact form for a quotation.

Technical data sheet

Every product in our cast iron radiator range has a double-sided A4 technical data sheet, written for architects, specifiers and heating engineers. It includes dimensioned drawings, outputs at ΔT50 and ΔT30, weights, water content, fixing details and a model specification clause you can copy into your specification.

Send us your room heat losses and we will prepare a radiator schedule for your project. Call 0333 987 4452.

Download the technical data sheet · PDF
