Established 1893   |   BS 460:2002 Certified   |   UK & International Supply   |   Expert Technical Support   |   0333 987 4452

Shop / Heating & Radiators / Edwardian Cast Iron Radiators / Edwardian 6 Column Cast Iron Radiator

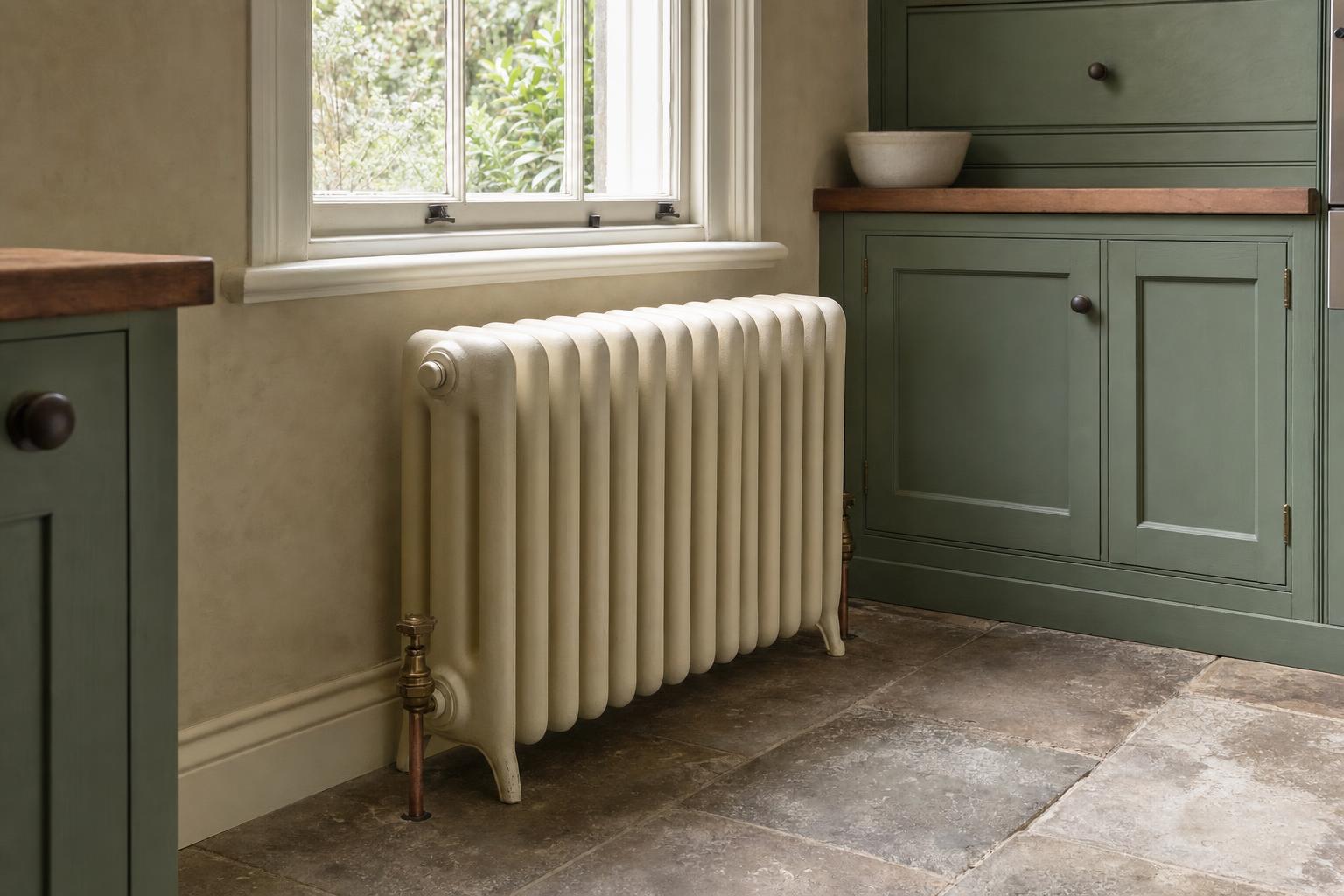

Deep Edwardian six-column cast iron radiator in cream under a window in a period house kitchen.
CODE E6 Categories Edwardian Cast Iron Radiators, Heating & Radiators

Edwardian 6 Column Cast Iron Radiator

£263.40 – £5,985.00Price range: £263.40 through £5,985.00 ex VAT (£316.08 – £7,182.00 inc VAT)

Edwardian 6 column cast iron radiator, 485mm to 960mm high, 221mm deep. Up to 197W per section at ΔT50. Primer or factory colour, 3 to 30 sections, priced by number of sections.

Download the technical data sheet · PDF

View the factory colour chart · PDF

Clear

The Edwardian 6 column is a deep, plain column radiator. At 221mm deep it gives the most heat per metre of wall of any plain pattern in our range. That makes it the first choice where wall space is limited, or where a heat pump is planned and a radiator needs more output without more length. It comes in four heights from 485mm to 960mm.

Choose primer, ready to paint on site to match the room’s joinery or a historic colour scheme (typically 14 days), or a factory colour from our standard range of 13 (typically two to three weeks; tell us your colour from the colour chart when you order). Each section is 60mm wide and 221mm deep. Outputs are tested to BS EN 442; radiators are rated to 6 bar working pressure, have ½” BSP connections and carry a 10-year guarantee.

Heights, outputs and prices

Height Output ΔT50 Output ΔT30 Weight Factory built to Primer Factory colour
485mm 95.3W 49.1W 5.8kg 17 sections £87.80 £106.30
660mm 133W 68.5W 7.74kg 17 sections £110.60 £129.10
760mm 151W 77.8W 9.92kg 15 sections £142.90 £161.40
960mm 197W 101.5W 13.9kg 10 sections £181.00 £199.50

Outputs, weights and prices are per section, ex VAT. Choose from 3 to 30 sections; radiators longer than the factory-built limit are joined on site.

Specification

Pattern Edwardian 6 column, 6 columns
Height 485mm to 960mm, floor-standing on integrated feet
Depth 221mm
Section width 60mm, plus 26mm overall for the end bushes
Length Sections × 60mm + 26mm (10 sections = 626mm; 20 sections = 1,226mm)
Finish Primer, or a factory colour from the standard range of 13
Connections and pressure ½” BSP · 6 bar working pressure
Guarantee 10 years against manufacturing defects

Sections are cast, so allow ±2mm per section and set valve tails once the radiator has arrived. Valves are sold separately: see our radiator valves.

Choosing and sizing

The Edwardian 6 column is usually chosen for rooms where wall space is short, kitchens, and heat pump systems in period houses. To size it, divide the room’s heat loss by the output per section at your system’s temperature and round up. On a heat pump at ΔT30 a section gives about half its ΔT50 output. Our guides to sizing cast iron radiators for a period room and cast iron radiators with heat pumps work through examples, and the 2026 specification guide (PDF) lists every pattern and output. See the radiators in period settings in our radiator gallery, or compare with the plain Victorian 4 column.

Send us your room heat losses and we will prepare a radiator schedule with section counts and lengths at boiler and heat pump temperatures. Call 0333 987 4452 or contact us.

Images are illustrative. The section count and finish shown may differ from your order.

Additional information

Height

485mm, 660mm, 760mm, 960mm

Sections

3 Sections, 4 Sections, 5 Sections, 6 Sections, 7 Sections, 8 Sections, 9 Sections, 10 Sections, 11 Sections, 12 Sections, 13 Sections, 14 Sections, 15 Sections, 16 Sections, 17 Sections, 18 Sections, 19 Sections, 20 Sections, 21 Sections, 22 Sections, 23 Sections, 24 Sections, 25 Sections, 26 Sections, 27 Sections, 28 Sections, 29 Sections, 30 Sections

Finish

Primer, Factory colour

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is the output of the Edwardian 6 column cast iron radiator?
Per section at ΔT50 (BS EN 442): 485mm 95.3W, 660mm 133W, 760mm 151W, 960mm 197W. At heat pump temperatures of ΔT30 a section gives about half that, for example 101.5W at 960mm.
How long is a Edwardian 6 column radiator?
Length is the number of sections multiplied by 60mm, plus 26mm for the end bushes. A 10-section radiator is 626mm long and a 20-section radiator 1,226mm. Allow ±2mm per section for casting tolerance.
Is the Edwardian 6 column radiator suitable for a listed building?
Yes, in the right setting: rooms where wall space is short, kitchens, and heat pump systems in period houses. Replacing radiators or altering pipe runs in a listed building may need listed building consent, so check with the conservation officer early.
What finishes are available on the Edwardian 6 column radiator?
Primer for painting on site, typically about one week, or a factory colour from our standard range of 20, typically two to three weeks. Tell us your colour from the colour chart when you order.
How much does a Edwardian 6 column radiator cost?
It is priced per section, from £87.80 ex VAT in primer at the lowest height, so a 3-section radiator starts at £263.40. Delivery is a flat £95 plus VAT per radiator order. Please call 0333 987 4452 or use the contact form for a quotation.

Technical data sheet

Every product in our cast iron radiator range has a double-sided A4 technical data sheet, written for architects, specifiers and heating engineers. It includes dimensioned drawings, outputs at ΔT50 and ΔT30, weights, water content, fixing details and a model specification clause you can copy into your specification.

Send us your room heat losses and we will prepare a radiator schedule for your project. Call 0333 987 4452.

Download the technical data sheet · PDF

Related products

  • Clarendon ornate angled manual radiator valve set with crown head, black nickel

    Clarendon Ornate Angled Manual Radiator Valve Set

    £120.20 – £163.40Price range: £120.20 through £163.40 ex VAT (£144.24 – £196.08 inc VAT)
    Select options This product has multiple variants. The options may be chosen on the product page

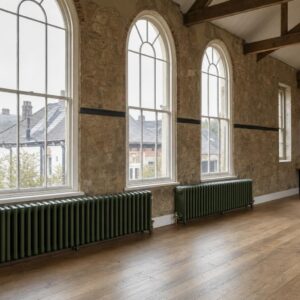

  • Board School two-column cast iron radiator with rounded tops beneath a tall window in a Victorian village hall.

    Board School 2 Column Cast Iron Radiator

    £353.10 – £6,348.00Price range: £353.10 through £6,348.00 ex VAT (£423.72 – £7,617.60 inc VAT)
    Select options This product has multiple variants. The options may be chosen on the product page

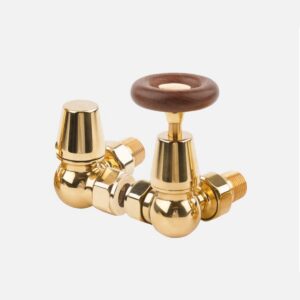

  • Belgrave wheelhead corner manual radiator valve set, polished brass
