Established 1893   |   BS 460:2002 Certified   |   UK & International Supply   |   Expert Technical Support   |   0333 987 4452

Shop / Heating & Radiators / Edwardian Cast Iron Radiators / Edwardian 2 Column Cast Iron Radiator

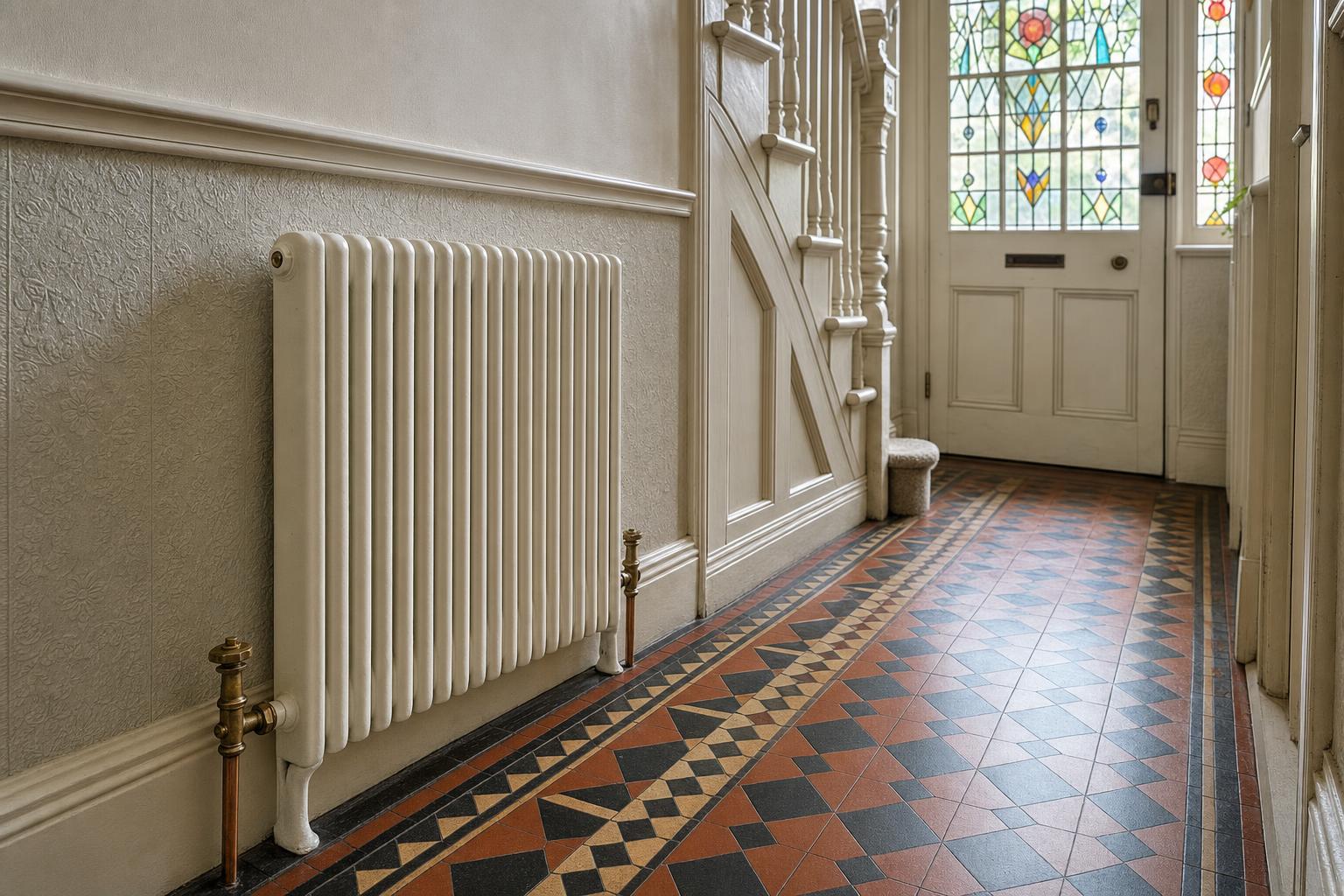

Slim Edwardian two-column cast iron radiator against the wall of a narrow Edwardian hallway with a tiled floor.
CODE E2 Categories Edwardian Cast Iron Radiators, Heating & Radiators

Edwardian 2 Column Cast Iron Radiator

£114.90 – £2,895.00Price range: £114.90 through £2,895.00 ex VAT (£137.88 – £3,474.00 inc VAT)

Edwardian 2 column cast iron radiator, 490mm to 1040mm high, 70mm deep. Up to 74W per section at ΔT50. Primer or factory colour, 3 to 30 sections, priced by number of sections.

Download the technical data sheet · PDF

View the factory colour chart · PDF

Clear

The Edwardian 2 column is a slim, plain column radiator of the kind fitted in Edwardian houses, offices and institutions. At only 70mm deep it is the slimmest radiator in our range. It is the natural choice for halls, passages, window reveals and anywhere a deeper radiator would narrow the space, and comes in four heights from 490mm to 1040mm.

Choose primer, ready to paint on site to match the room’s joinery or a historic colour scheme (typically 14 days), or a factory colour from our standard range of 13 (typically two to three weeks; tell us your colour from the colour chart when you order). Each section is 60mm wide and 70mm deep. Outputs are tested to BS EN 442; radiators are rated to 6 bar working pressure, have ½” BSP connections and carry a 10-year guarantee.

Heights, outputs and prices

Height Output ΔT50 Output ΔT30 Weight Factory built to Primer Factory colour
490mm 41W 21.1W 2.6kg 20 sections £38.30 £56.80
640mm 46W 23.7W 3.41kg 20 sections £46.90 £65.40
740mm 62W 31.9W 3.82kg 20 sections £57.30 £75.80
1040mm 74W 38.1W 5.15kg 17 sections £78.00 £96.50

Outputs, weights and prices are per section, ex VAT. Choose from 3 to 30 sections; radiators longer than the factory-built limit are joined on site.

Specification

Pattern Edwardian 2 column, 2 columns
Height 490mm to 1040mm, floor-standing on integrated feet
Depth 70mm
Section width 60mm, plus 26mm overall for the end bushes
Length Sections × 60mm + 26mm (10 sections = 626mm; 20 sections = 1,226mm)
Finish Primer, or a factory colour from the standard range of 13
Connections and pressure ½” BSP · 6 bar working pressure
Guarantee 10 years against manufacturing defects

Sections are cast, so allow ±2mm per section and set valve tails once the radiator has arrived. Valves are sold separately: see our radiator valves.

Choosing and sizing

The Edwardian 2 column is usually chosen for entrance halls, passages, landings, window reveals and small rooms. To size it, divide the room’s heat loss by the output per section at your system’s temperature and round up. On a heat pump at ΔT30 a section gives about half its ΔT50 output. Our guides to sizing cast iron radiators for a period room and cast iron radiators with heat pumps work through examples, and the 2026 specification guide (PDF) lists every pattern and output. See the radiators in period settings in our radiator gallery, or compare with the plain Victorian 4 column.

Send us your room heat losses and we will prepare a radiator schedule with section counts and lengths at boiler and heat pump temperatures. Call 0333 987 4452 or contact us.

Images are illustrative. The section count and finish shown may differ from your order.

Additional information

Height

490mm, 640mm, 740mm, 1040mm

Sections

3 Sections, 4 Sections, 5 Sections, 6 Sections, 7 Sections, 8 Sections, 9 Sections, 10 Sections, 11 Sections, 12 Sections, 13 Sections, 14 Sections, 15 Sections, 16 Sections, 17 Sections, 18 Sections, 19 Sections, 20 Sections, 21 Sections, 22 Sections, 23 Sections, 24 Sections, 25 Sections, 26 Sections, 27 Sections, 28 Sections, 29 Sections, 30 Sections

Finish

Primer, Factory colour

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is the output of the Edwardian 2 column cast iron radiator?
Per section at ΔT50 (BS EN 442): 490mm 41W, 640mm 46W, 740mm 62W, 1040mm 74W. At heat pump temperatures of ΔT30 a section gives about half that, for example 38.1W at 1040mm.
How long is a Edwardian 2 column radiator?
Length is the number of sections multiplied by 60mm, plus 26mm for the end bushes. A 10-section radiator is 626mm long and a 20-section radiator 1,226mm. Allow ±2mm per section for casting tolerance.
Is the Edwardian 2 column radiator suitable for a listed building?
Yes, in the right setting: entrance halls, passages, landings, window reveals and small rooms. Replacing radiators or altering pipe runs in a listed building may need listed building consent, so check with the conservation officer early.
What finishes are available on the Edwardian 2 column radiator?
Primer for painting on site, typically about one week, or a factory colour from our standard range of 20, typically two to three weeks. Tell us your colour from the colour chart when you order.
How much does a Edwardian 2 column radiator cost?
It is priced per section, from £38.30 ex VAT in primer at the lowest height, so a 3-section radiator starts at £114.90. Delivery is a flat £95 plus VAT per radiator order. Please call 0333 987 4452 or use the contact form for a quotation.

Technical data sheet

Every product in our cast iron radiator range has a double-sided A4 technical data sheet, written for architects, specifiers and heating engineers. It includes dimensioned drawings, outputs at ΔT50 and ΔT30, weights, water content, fixing details and a model specification clause you can copy into your specification.

Send us your room heat losses and we will prepare a radiator schedule for your project. Call 0333 987 4452.

Download the technical data sheet · PDF

Related products

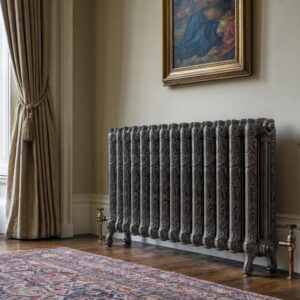

  • Large ornate three-column cast iron radiator with rococo relief in the drawing room of a country house.
