Price range: £104.20 through £107.90 ex VAT (£125.04 – £129.48 inc VAT)
Socketless cast iron below-ground and suspended drainage system made to BS EN 877. Trapped Gully, available in 100mm, 150mm. Cast iron, supplied factory coated.
Product codes: HD4071 (100mm), HD6071 (150mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Drain is a socketless cast iron drainage system made to BS EN 877, for below-ground drainage and suspended drainage runs in basements, undercrofts and plant areas. Plain-ended pipes and fittings are joined with bolted couplings. The result is a rigid, non-combustible system that resists crushing and root ingress, and copes with the loads found under buildings and hard landscaping.

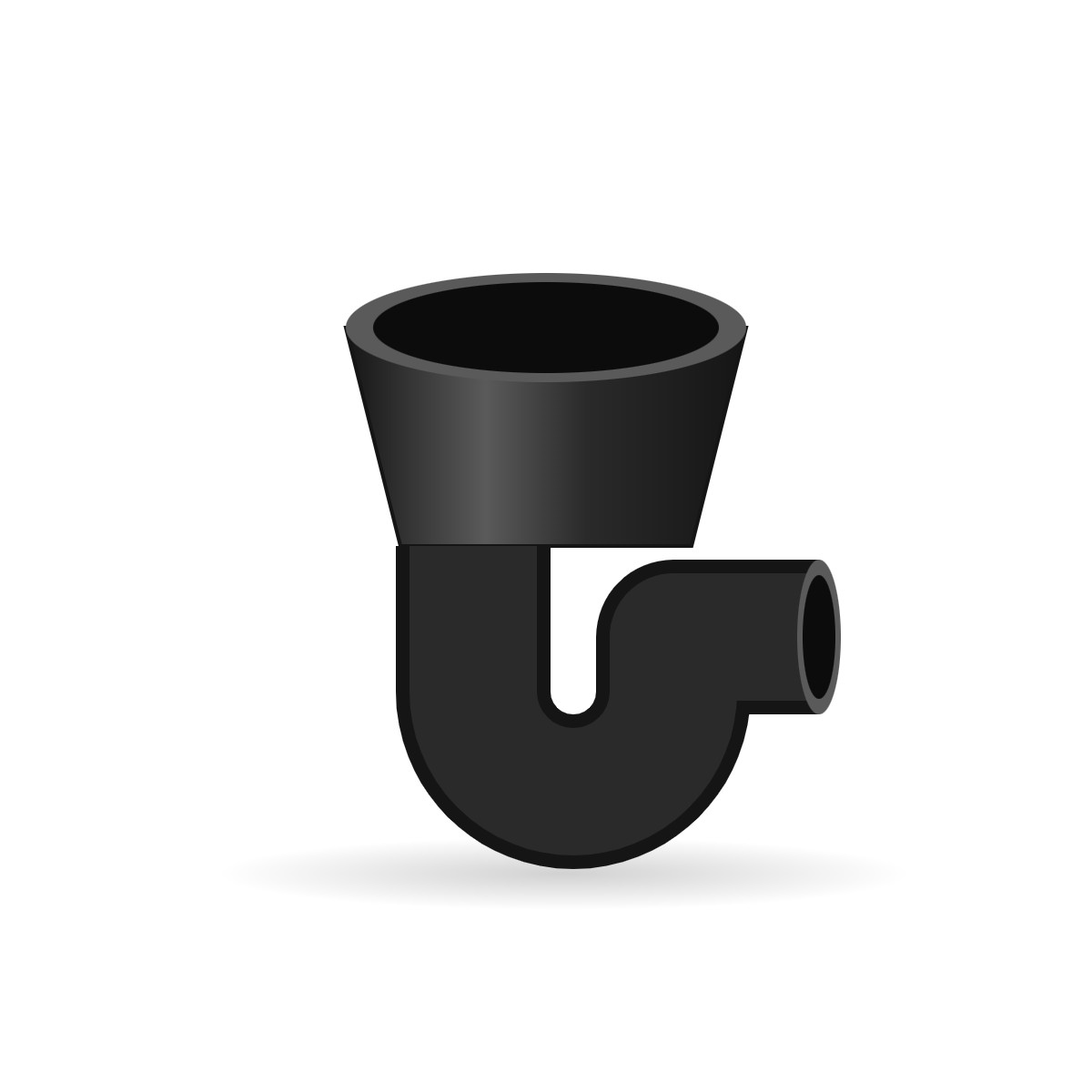

A cast iron gully that collects surface water or a pipe discharge at ground level and delivers it into the drain.
Available in 2 sizes, from 100mm to 150mm. Nominal weights run from 2.9 kg (150mm) to 4.7 kg (100mm).
Typical use: Yards, courtyards and the foot of rainwater pipes discharging to a drain.
| Size | Product code | Nominal weight |
|---|---|---|
| 100mm | HD4071 | 4.7 kg |
| 150mm | HD6071 | 2.9 kg |
Often used with: Gully Grating, Gully Cover, 15° Short Radius Bend.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 100mm (HD4071), 150mm (HD6071).
A plain grating where it collects surface water, or a solid sealed cover where it only takes pipe connections.
| Size | 100mm, 150mm |
|---|
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Linseed oil paint is the most appropriate finish for cast iron guttering on listed and historic buildings. It is breathable, flexible, and penetrating — qualities that suit the movement characteristics of cast iron through seasonal temperature changes. Tuscan Foundry Products offers a curated range of heritage linseed oil colours. For modern applications, a high-quality exterior oil-based paint system over a metal primer is also acceptable.
The H526 measures 440mm wide x 240mm deep x 460mm high, making it well suited to Victorian and Edwardian townhouses.
Our cast iron hopper heads are available with 65mm, 75mm and 100mm round outlets, 75mm, 100mm and 125mm square outlets, and 100x75mm, 125x100mm and 150x125mm rectangular outlets, to match the downpipe already on site or specified for the project.
Yes. The Louvre Airbrick is dimensioned to standard brick course openings and is suitable for direct replacement of worn, broken, or missing original cast iron louvre grilles. If you are unsure of the size required, measure the opening in the brickwork rather than the existing damaged grille.
Rooflight opener handles can be ordered directly through tuscanfoundry.com. For volume orders or project-specific queries, please call 0333 987 4452 or use the contact form on our website.
We manufacture a wide variety of brackets for many different cast iron gutter and pipe profiles. More common types are the rise and fall, top fix and side fix rafter and the holderbat or pipe clip.
We can also offer traditional drive brackets, repair brackets and fascia brackets in both steel and cast iron.
It is always advisable to replace like with like because quite often the brackets form and important part of the buildings architecture. Occasionally buildings have special decorative brackets and our UK manufacturing allows us to produce small quantities of bespoke brackets when required.
Hopper heads are supplied in red oxide primer ready for on-site painting, or pre-finished in black. A full range of Heritage Colours in traditional linseed oil paint is also available on request — please contact us for the swatch chart.
Yes. Cast iron airbricks are the appropriate material for listed buildings and conservation area properties where the original ventilation grilles were cast iron. They maintain the character and material authenticity required by most conservation officers and listed building consent conditions. We recommend confirming the specific pattern with your conservation officer before ordering.
