Established 1893   |   BS 460:2002 Certified   |   UK & International Supply   |   Expert Technical Support   |   0333 987 4452

Shop / Cast Iron Gutters & Pipes / Cast Iron Square Pipes and Fittings / Square Pipe Plinth Offset 135°

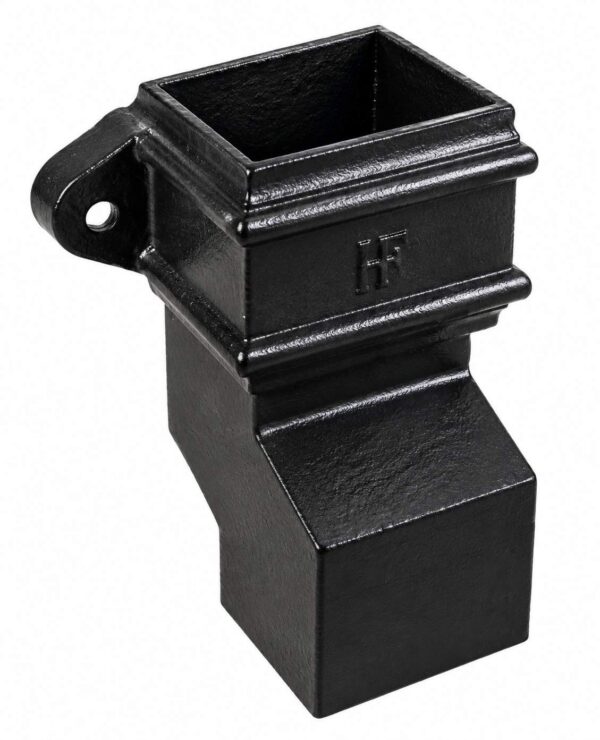

Cast iron square downpipe 135 degree plinth offset with fixing ear, Tuscan Foundry Products
How to measure the projection of a cast iron square downpipe 135 degree plinth offset

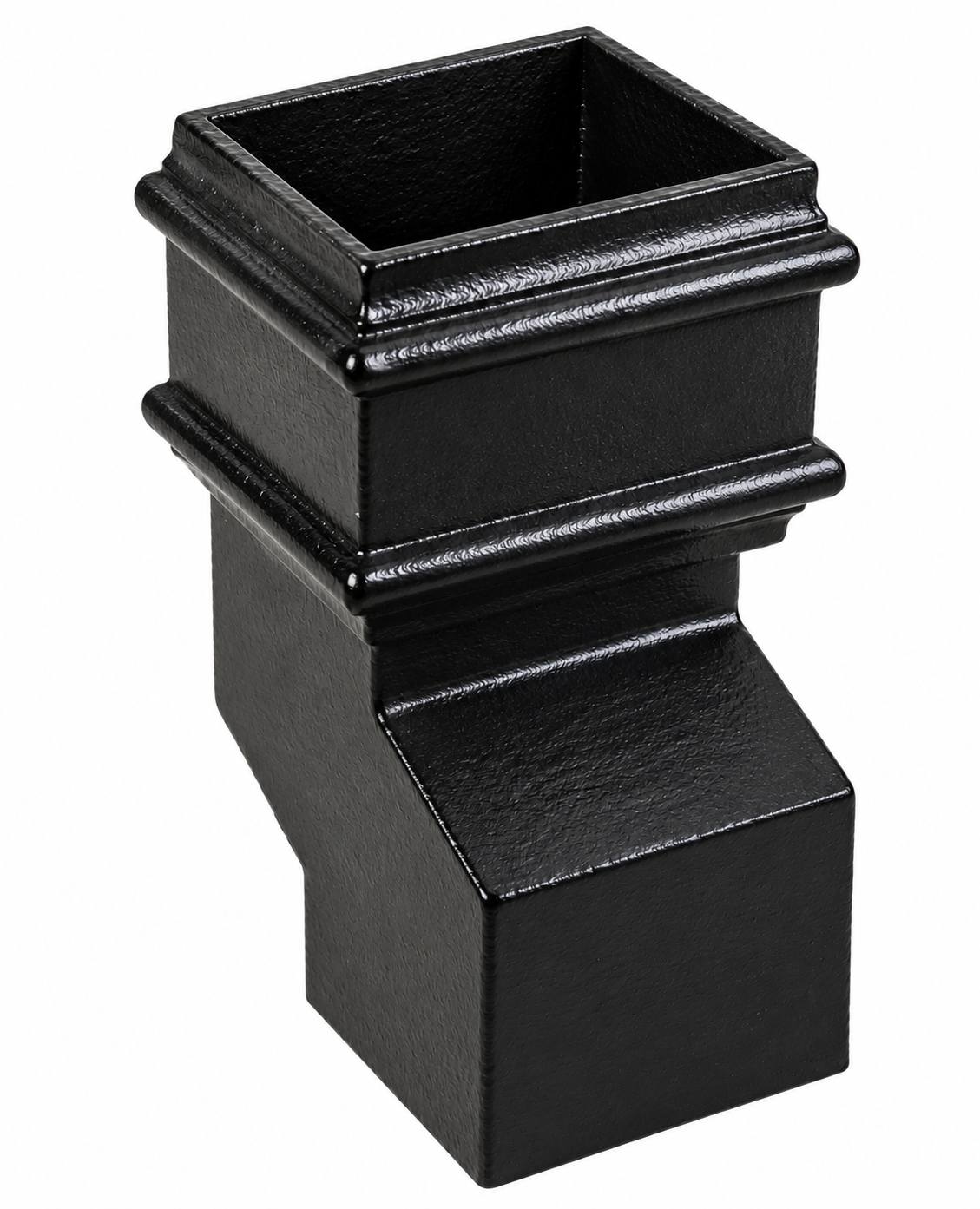

Cast iron square downpipe 135 degree plinth offset, plain without ears, Tuscan Foundry Products
CODE SQPO Category Cast Iron Square Pipes and Fittings

Square Pipe Plinth Offset 135°

£282.00 – £511.30Price range: £282.00 through £511.30 ex VAT (£338.40 – £613.56 inc VAT)

Cast iron 135 degree plinth offset for 75mm x 75mm and 100mm x 100mm square downpipes, 75mm, 115mm or 150mm projection, eared or un-eared, primer or black painted.

Plinth offset (135°): steeper bends step the pipe out in less height, for clearing a shallow plinth. Projection is measured horizontally between the centre lines of the upper and lower pipe. See the measuring diagram in the gallery, or our guide to measuring an offset. For projections over 150mm, use a standard 112.5° offset.

Clear

UK delivery from £30. Fittings are despatched boxed. See delivery rates.

The Square Pipe Plinth Offset 135° is a short, compact offset used to carry a square downpipe out over a projecting plinth, base course or string course near ground level. Its 135 degree sets keep the change of line neat and close to the wall.

Projections of 75mm, 115mm and 150mm suit most plinth details. The head has the moulded socket band of the square range and is available with an integral fixing ear, or plain for runs fixed with holderbats or earbands.

Plinth offsets are typical at the base of Georgian and Victorian facades where a stone or brick plinth projects beyond the wall above, and are often used just above the shoe at the foot of the run.

All fittings in our square range are cast iron to BS 460:2002, made to the same moulded profile so pipes and fittings line up neatly on the elevation. Every fitting is supplied either in primer, ready for painting on site, or in factory black. For listed buildings and conservation areas we also offer hand-applied linseed oil paint in heritage colours, which stays breathable and flexible and is straightforward to maintain. Stocked items are usually dispatched within 5 to 7 working days; allow around 6 to 7 weeks where a linseed oil finish is specified.

Square pipe sizes: 75mm x 75mm (3″ x 3″) and 100mm x 100mm (4″ x 4″).

Suitable for listed buildings, conservation areas and heritage restoration. For specification support or a project quotation, call 0333 987 4452.

Additional information

Size/Finish

Primer 75 x 75mm (75mm Projection), Primer 75 x 75mm (115mm Projection), Primer 75 x 75mm (150mm Projection), Primer 100 x 100mm (75mm Projection), Primer 100 x 100mm (115mm Projection), Primer 100 x 100mm (150mm Projection), Black Painted 75 x 75mm (75mm Projection), Black Painted 75 x 75mm (115mm Projection), Black Painted 75 x 75mm (150mm Projection), Black Painted 100 x 100mm (75mm Projection), Black Painted 100 x 100mm (115mm Projection), Black Painted 100 x 100mm (150mm Projection)

Eared/Un-Eared

Eared, Un-Eared

Cross-reference

Primer 75 x 75mm (75mm Projection), EaredSQ3341P + ears
Primer 75 x 75mm (75mm Projection), Un-EaredSQ3341P
Primer 75 x 75mm (115mm Projection), EaredSQ3342P + ears
Primer 75 x 75mm (115mm Projection), Un-EaredSQ3342P
Primer 75 x 75mm (150mm Projection), EaredSQ3343P + ears
Primer 75 x 75mm (150mm Projection), Un-EaredSQ3343P
Primer 100 x 100mm (75mm Projection), EaredSQ4441P + ears
Primer 100 x 100mm (75mm Projection), Un-EaredSQ4441P
Primer 100 x 100mm (115mm Projection), EaredSQ4442P + ears
Primer 100 x 100mm (115mm Projection), Un-EaredSQ4442P
Primer 100 x 100mm (150mm Projection), EaredSQ4443P + ears
Primer 100 x 100mm (150mm Projection), Un-EaredSQ4443P
Black Painted 75 x 75mm (75mm Projection), EaredXSQ3341P + ears
Black Painted 75 x 75mm (75mm Projection), Un-EaredXSQ3341P
Black Painted 75 x 75mm (115mm Projection), EaredXSQ3342P + ears
Black Painted 75 x 75mm (115mm Projection), Un-EaredXSQ3342P
Black Painted 75 x 75mm (150mm Projection), EaredXSQ3343P + ears
Black Painted 75 x 75mm (150mm Projection), Un-EaredXSQ3343P
Black Painted 100 x 100mm (75mm Projection), EaredXSQ4441P + ears
Black Painted 100 x 100mm (75mm Projection), Un-EaredXSQ4441P
Black Painted 100 x 100mm (115mm Projection), EaredXSQ4442P + ears
Black Painted 100 x 100mm (115mm Projection), Un-EaredXSQ4442P
Black Painted 100 x 100mm (150mm Projection), EaredXSQ4443P + ears
Black Painted 100 x 100mm (150mm Projection), Un-EaredXSQ4443P

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is a plinth offset used for?
A plinth offset carries the downpipe out over a projecting plinth or base course at the foot of a wall, so the pipe can continue vertically to the shoe or gully.
Which projections are available?
The square plinth offset is available with 75mm, 115mm or 150mm projection, eared or un-eared, in 75mm x 75mm and 100mm x 100mm.
Is the Square Pipe Plinth Offset 135° suitable for a listed building?
Yes. It is a traditional cast iron fitting made to BS 460:2002 in the profile found on period square downpipe runs, and it can be supplied in a linseed oil paint finish, which conservation officers usually prefer. We can advise on matching existing pipework; call 0333 987 4452.
How much does the Square Pipe Plinth Offset 135° cost and how quickly can it be delivered?
Prices for each size and finish are shown on this page, ex VAT. Stocked items are usually dispatched within 5 to 7 working days, or around 6 to 7 weeks with a linseed oil finish. For project quantities please call 0333 987 4452 or use the contact form.
