Shop / Cast Iron Gutters & Pipes / Cast Iron Square Pipes and Fittings / Square Pipe Branch (Single)

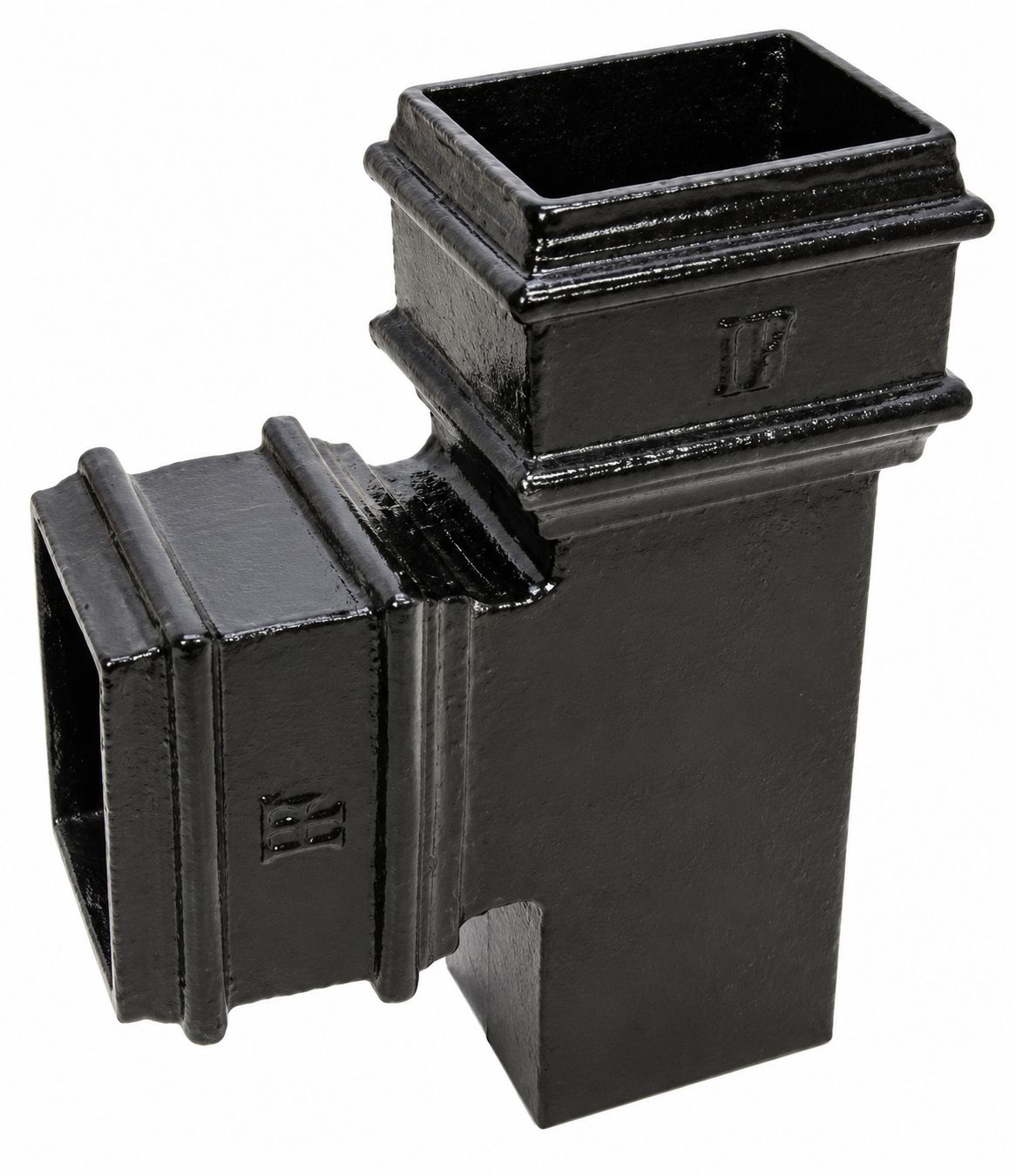

Cast iron square downpipe single branch, Tuscan Foundry Products
CODE SQBR Category Cast Iron Square Pipes and Fittings

Square Pipe Branch (Single)

£454.60 – £597.70Price range: £454.60 through £597.70 ex VAT (£545.52 – £717.24 inc VAT)

Cast iron single branch for joining a second pipe into a square downpipe run at 92.5, 112.5 or 135 degrees, in 75mm x 75mm and 100mm x 100mm, primer or black painted.

Clear

UK delivery from £30. Fittings are despatched boxed. See delivery rates.

The Square Pipe Branch (Single) joins a second rainwater pipe into a square cast iron downpipe, so two roof areas, gutters or hopper heads can discharge into one stack. It avoids running two separate downpipes down the same elevation.

The main run and the branch arm both keep the full square section, with moulded socket bands on the inlets. The branch arm joins at 92.5, 112.5 or 135 degrees; the shallower angles give a smoother flow and are usually preferred where space allows.

Branches are typically used at valleys, internal corners and rear elevations where several roof slopes meet, and on terraces where adjoining roofs share a downpipe.

All fittings in our square range are cast iron to BS 460:2002, made to the same moulded profile so pipes and fittings line up neatly on the elevation. Every fitting is supplied either in primer, ready for painting on site, or in factory black. For listed buildings and conservation areas we also offer hand-applied linseed oil paint in heritage colours, which stays breathable and flexible and is straightforward to maintain. Stocked items are usually dispatched within 5 to 7 working days; allow around 6 to 7 weeks where a linseed oil finish is specified.

Square pipe sizes: 75mm x 75mm (3″ x 3″) and 100mm x 100mm (4″ x 4″).

Suitable for listed buildings, conservation areas and heritage restoration. For specification support or a project quotation, call 0333 987 4452.

Additional information

Size/Finish

Primer 75mm x 75mm, Primer 100mm x 100mm, Black Painted 75mm x 75mm, Black Painted 100mm x 100mm

Angle

92.5 Deg, 112.5 Deg, 135 Deg

Cross-reference

Primer 75mm x 75mm, 92.5 DegSQ3330
Primer 75mm x 75mm, 112.5 DegSQ3331
Primer 75mm x 75mm, 135 DegSQ3332
Primer 100mm x 100mm, 92.5 DegSQ4430
Primer 100mm x 100mm, 112.5 DegSQ4431
Primer 100mm x 100mm, 135 DegSQ4432
Black Painted 75mm x 75mm, 92.5 DegXSQ3330
Black Painted 75mm x 75mm, 112.5 DegXSQ3331
Black Painted 75mm x 75mm, 135 DegXSQ3332
Black Painted 100mm x 100mm, 92.5 DegXSQ4430
Black Painted 100mm x 100mm, 112.5 DegXSQ4431
Black Painted 100mm x 100mm, 135 DegXSQ4432

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
When should I use a branch on a square downpipe?
Use a single branch where a second gutter outlet, hopper or pipe needs to join an existing square downpipe, rather than running a second pipe down the wall.
Which branch angle should I choose?
135 and 112.5 degree branches give a smoother flow and are preferred where there is room. Use 92.5 degrees where the incoming pipe runs horizontally.
Is the Square Pipe Branch (Single) suitable for a listed building?
Yes. It is a traditional cast iron fitting made to BS 460:2002 in the profile found on period square downpipe runs, and it can be supplied in a linseed oil paint finish, which conservation officers usually prefer. We can advise on matching existing pipework; call 0333 987 4452.
How much does the Square Pipe Branch (Single) cost and how quickly can it be delivered?
Prices for each size and finish are shown on this page, ex VAT. Stocked items are usually dispatched within 5 to 7 working days, or around 6 to 7 weeks with a linseed oil finish. For project quantities please call 0333 987 4452 or use the contact form.
