What building types is the Westminster Cast Iron Hopper Head No.521 suited to?

The Westminster Cast Iron Hopper Head No.521 (H521) is designed for period and heritage properties — Georgian, Victorian and Edwardian buildings, listed structures, and conservation area projects — as well as new-build work specified to match a traditional cast iron rainwater or soil system.

Is the H521 suitable for use on a listed building?

Yes. As a cast iron component it's suitable for listed building and conservation area work where planning conditions require traditional materials rather than modern plastic or aluminium alternatives.

What connections does the H521 accept?

Connection and size options are shown in the dropdown on this page. If you're unsure which option matches your existing system, call 0333 987 4452 and we can confirm compatibility.

What finishes are available on the H521?

Standard finish options are shown in the product dropdown above — typically factory primer or black painted, ready to be top-coated on site if required.

How do I get a price for the H521?

Please call 0333 987 4452 or use the contact form for a current price, as this varies by size and finish option.

Cragside is a Victorian country house in Rothbury, Northumberland, designed by architect Norman Shaw and built for industrialist William Armstrong between 1863 and 1895. It was the first house in the world to be lit by hydroelectric power. It is a Grade I listed building and Scheduled Monument, managed by the National Trust and open to visitors.

What architectural style is Cragside?

Cragside is built in the Old English or Arts and Crafts style, with a dramatic multi-gabled silhouette set into a rocky hillside in Northumberland. The design by Norman Shaw features extensive timber framing, ornate brickwork, and complex rooflines requiring a substantial cast iron rainwater system.

What rainwater systems are appropriate for Victorian country houses like Cragside?

Victorian country houses typically feature cast iron gutters, downpipes, and ornamental hopper heads integral to the architectural character of the building. For complex multi-gabled rooflines, large-capacity cast iron profiles and bespoke castings are often required. Tuscan Foundry Products supplies heritage cast iron for National Trust and similar projects — call 0333 987 4452.

Does Tuscan Foundry supply cast iron guttering for Northumberland properties?

Yes. Tuscan Foundry Products supplies cast iron rainwater systems for listed and period buildings throughout Northumberland, including Victorian country houses, estate buildings, and ecclesiastical properties. Call 0333 987 4452 or email info@tuscanfoundry.com to discuss your project.

What cast iron guttering is appropriate for a period property in Kent?

Period properties in Kent typically feature Half Round or Ogee cast iron gutters depending on the building's age and style. Georgian and early Victorian properties commonly have Ogee profile; later Victorian and Edwardian properties often feature Half Round. Tuscan Foundry Products can advise on the most appropriate choice for your Kent property — call 0333 987 4452.

Do listed properties in Kent need cast iron guttering?

Listed buildings in Kent are required to maintain the character of the original building. Replacing cast iron guttering with uPVC is likely to require Listed Building Consent and is unlikely to be approved by Kent conservation officers. Like-for-like replacement in cast iron does not normally require consent. Tuscan Foundry Products supplies cast iron guttering for listed properties throughout Kent.

Does Tuscan Foundry deliver cast iron guttering to Kent?

Yes. Tuscan Foundry Products delivers cast iron gutters, downpipes, hoppers, and fittings to locations throughout Kent. We supply architects, conservation contractors, and private clients on listed and period buildings across the county. Call 0333 987 4452 or email info@tuscanfoundry.com to discuss your project.

What is a quinquennial inspection?

A quinquennial inspection is a mandatory five-yearly condition survey of a Church of England church, carried out by an approved architect or chartered building surveyor. It assesses the condition of all elements including the roof, rainwater drainage, walls, windows, and fittings, and produces a prioritised schedule of repairs.

What type of guttering is appropriate for a historic church?

Cast iron gutters and downpipes are the appropriate and most commonly specified rainwater system for historic churches. They match original drainage systems on Victorian, Georgian, and earlier ecclesiastical buildings, comply with BS 460:2002, and are acceptable to Diocesan Advisory Committees and conservation officers. Tuscan Foundry Products supplies cast iron church drainage systems — call 0333 987 4452 for guidance.

Does replacing church guttering require a faculty?

Replacing guttering like-for-like in the same material on a Church of England church typically falls within List A or List B of the Faculty Jurisdiction Rules 2015 and may not require a full faculty. Any change of material is likely to require a faculty. Always check with the Diocesan Advisory Committee before proceeding.

How long do cast iron gutters last on a church?

Cast iron gutters correctly installed, painted, and maintained can last in excess of 100 years on a church building. Regular repainting every 7-10 years and prompt attention to joint failures are the key maintenance tasks. Linseed oil paint is increasingly used on ecclesiastical buildings as a period-appropriate and durable finish.

Can Tuscan Foundry supply large-capacity gutters for churches?

Yes. Tuscan Foundry Products stocks large-capacity cast iron gutter profiles appropriate for the wide roof spans of churches, including Deep Half Round and Large Sand Cast profiles. Bespoke profiles are available where the original section is non-standard. Contact us on 0333 987 4452.

Do I need Listed Building Consent to replace cast iron gutters on a listed building in Lancashire?

Yes. Replacing gutters, downpipes, or hoppers on a listed building requires Listed Building Consent (LBC) from the local planning authority in almost all cases. The material, profile, finish, and method of fixing must all be acceptable to the conservation officer. Cast iron — particularly like-for-like replacement — is generally approved without difficulty. Many conservation officers in Lancashire will refuse consent for plastic rainwater goods on listed buildings as a matter of policy.

What cast iron gutter profiles are most appropriate for Victorian terraced houses in Lancashire mill towns?

For Lancashire's terraced rows and mill-worker housing, the standard profiles are half-round and Ogee. Half-round gutter in 100mm and 125mm sizes, combined with 68mm or 100mm round downpipes, covers the vast majority of residential applications. The Victorian Ogee profile is particularly characteristic of properties built from the 1860s onwards. The correct profile should match the original specification wherever evidence survives.

Can original cast iron gutter profiles from a Lancashire cotton mill be replicated if they are damaged or missing?

Yes. Copy casting — the process of producing a new pattern from a surviving component and casting new pieces to match — is the most appropriate approach where original profiles are unusual or non-standard. Lancashire mills often have bespoke profiles, non-standard sizes, and distinctive hopper heads that were cast specifically for them. Lead times for bespoke and copy cast items are typically 8–10 weeks from pattern approval.

Is linseed oil paint the right finish for cast iron gutters on listed buildings in Lancashire?

Yes. Linseed oil paint is the traditional finish for cast iron architectural metalwork in Britain and is the heritage-appropriate choice for listed buildings and conservation areas. It penetrates the metal surface rather than forming a surface film, creating a bond more resistant to freeze-thaw cycling. It remains flexible as it ages, is permeable, and is broadly consistent with the expectations of conservation officers on listed building projects.

Why should I commission a site survey before specifying cast iron rainwater goods for a Lancashire mill building?

Cotton mills present specific survey challenges: complex rooflines, varying gutter runs, multiple drainage outlets, and changes in level between sections built at different periods. Ground-level observation is frequently insufficient — eaves may be 12 to 15 metres above ground level. A site survey identifies the full condition of existing components, the presence of non-original materials, joint failures, and structural issues at fascia or wall plate that affect how replacement components must be fixed. The cost of a survey is modest relative to the cost of a specification error.

How should cast iron rainwater systems be specified for coastal properties in Blackpool or Morecambe?

Coastal properties on Lancashire's Irish Sea coast require a marine-grade specification. Salt-laden air accelerates corrosion significantly. Recommendations include shot blasting to Sa2.5 standard, a marine-grade zinc-rich primer, and a minimum of two linseed oil topcoats. Maintenance intervals should be reduced to three to five years rather than the standard five to ten years applied to inland properties.

How long does it take to supply bespoke or copy cast iron rainwater goods for a Lancashire heritage project?

Bespoke and copy cast items carry a lead time of typically 8–10 weeks from pattern approval. Standard catalogue products — including Ogee, half-round, and Victorian Ogee gutters in a range of sizes, together with round and square downpipes and associated fittings — are available for prompt despatch from stock. For projects with tight programmes, early engagement with a specialist supplier is essential.

How much does cast iron guttering cost per metre in the UK?

Cast iron guttering typically costs between £60 and £85 per metre for supply only, depending on the profile and size. Installed costs including labour, fixings, and jointing compound range from £80 to £130 per metre for a straightforward replacement on a standard property.

Do I need Listed Building Consent to replace cast iron gutters?

If your property is a listed building, you will generally need Listed Building Consent for any material change to rainwater goods. Installing uPVC without consent on a listed building is a criminal offence. Cast iron is the preferred like-for-like replacement material under Historic England guidance.

How long does bespoke or copy-cast cast iron guttering take?

Bespoke and copy-cast cast iron sections typically require 8 to 10 weeks from order to delivery. Radius guttering for curved elevations requires 12 to 14 weeks. These lead times should be factored into your programme at the earliest opportunity.

What is the lifespan of cast iron guttering compared to uPVC?

Cast iron guttering has a lifespan of 50 to 100 years when properly maintained, compared to 20 to 30 years for uPVC. When whole-life cost is considered, cast iron is frequently the more economical choice, particularly on listed and heritage buildings where material compliance is a legal requirement.

What cast iron gutter profiles are available for period buildings?

Common heritage profiles include Half Round, Ogee, Victorian Ogee, Moulded Ogee, and Box Section gutters. For buildings where the original profile has been lost or damaged, Tuscan Foundry can produce copy-cast sections matched to a surviving piece, drawing, or photograph.

Is cast iron guttering required in conservation areas?

In many conservation areas, permitted development rights are removed by Article 4 Directions, meaning replacement rainwater goods require planning permission. Cast iron is the material most likely to satisfy a conservation officer's requirement for like-for-like replacement on pre-1950s properties.

Does Tuscan Foundry offer site surveys for cast iron guttering projects?

Yes. Tuscan Foundry offers chargeable site surveys for complex restorations, bespoke copy casting commissions, and projects where accurate measurement is critical. A site survey helps avoid costly specification errors on difficult-access or sensitive historic buildings.

What is the best way to loosen corroded bolts on cast iron guttering before attempting removal?

The most effective first step is to apply a penetrating oil directly to each bolt head and nut, allowing it to soak for a minimum of several hours and ideally overnight. Gentle vibration from a hammer tap on the bolt head after soaking helps the oil migrate deeper into the threads. For badly seized fixings, repeat applications over two or three days before attempting to turn the bolt.

What should a contractor do when a bolt shears during cast iron gutter removal?

When a bolt shears, assess whether the surrounding casting has been damaged. If intact, the sheared bolt shaft can often be removed with a screw extractor or left-hand drill bit. If the casting has cracked, set the section aside and assess whether it is repairable or must be replaced. Document all sheared bolt events with photographs as part of the condition record.

How many operatives are needed to safely remove a section of cast iron guttering at height?

A minimum of two operatives should handle any section being removed at height — one to support and control the weight of the section, one to manage the scaffold position and receive the section safely. For longer sections or awkward locations, three operatives is often more appropriate. Cast iron guttering typically weighs four to six kilograms per metre for standard profiles.

Does the building fabric need protecting during cast iron gutter removal?

Yes — fascia boards and soffits are particularly vulnerable, as leverage applied during bolt release can split or fracture aged timber. Protective padding between tools and building surfaces reduces the risk. Masonry and render should be protected from falling sections, and all fixings left in the wall after bracket removal should be assessed before extraction.

How should we document the condition of cast iron guttering during removal for a listed building project?

A systematic photographic record of each section as it is removed is the minimum standard. Each section should be numbered corresponding to a simple location plan, with photographs showing the casting condition, the state of each joint and bolt, and any fractures or voids observed. This record supports condition assessment, copy casting specification, and any contractual or insurance requirements.

Can angle grinding be used to remove sheared or seized bolts from cast iron guttering?

Angle grinding can be used to cut off bolt heads that are completely seized, but it requires care on cast iron. The disc must not contact the casting itself, and heat must be managed to avoid thermal stress in aged castings. A nut splitter or bolt extractor is lower-risk and should be tried before resorting to angle grinding.

How should removed cast iron gutter sections be stored safely on site during a refurbishment programme?

Removed sections should be laid flat on padded timber bearers and never stacked directly without protection. Sections awaiting cleaning should be labelled to match the site plan. If transported off site, sections should be individually wrapped or padded to prevent impact damage during transit.

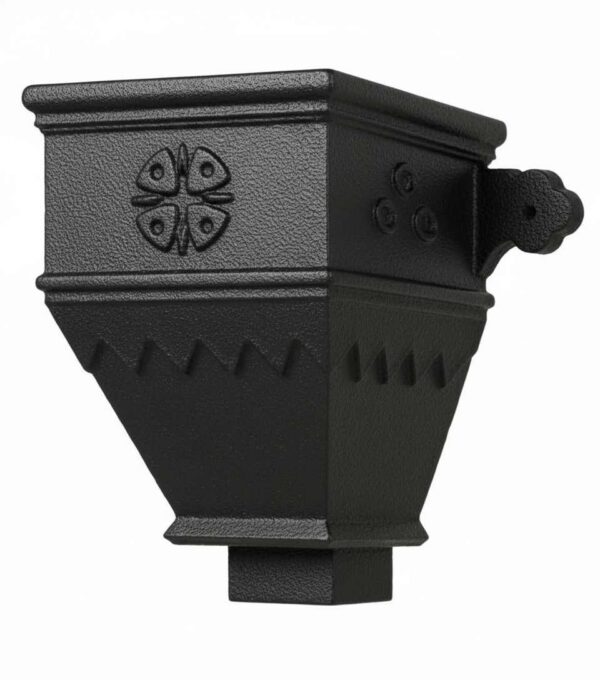

H521 cast iron ornamental hopper head - H521 cast iron leader head

Name: Westminster Cast Iron Hopper Head No.521
Brand: Tuscan Foundry Products
SKU: H521
Availability: InStock

Finish	Primer, Black
Connection	65mm Round, 75mm Round, 100mm Round, 75mm x 75mm Square, 100mm x 100mm Square, 125mm x 125mm Square, 100mm x 75mm Rectangular, 125mm x 100mm Rectangular, 150mm x 125mm Rectangular

How do I choose the right size rooflight opener for my rooflight?

Size selection depends on the distance between the mounting point and the rooflight frame, and the desired throw (opening distance). Our telescopic openers are available in 150mm, 250mm, and 300mm; the screw-jack stay is available in 300mm with a 250mm throw. For guidance on sizing for your specific rooflight, please call 0333 987 4452 or use the contact form.

What sizes does the telescopic brass rooflight opener come in?

The Brass Rooflight Hand Winder Opener – Telescopic is available in 150mm, 250mm, and 300mm sizes. The telescopic mechanism provides flexibility to accommodate varying rooflight positions and throw requirements. Throw: 165mm.

Is the Ornamental Airbrick appropriate for a Grade II listed building?

Yes. The ornamental foliate pattern was widely used in Victorian construction and is appropriate for Grade II listed buildings and conservation area properties. Its decorative character is often preferable to a plain pattern on prominent or formal elevations. We recommend confirming the pattern with your conservation officer as part of any listed building consent application.

What building types is the Paxton H82 hopper head suited to?

The Paxton H82 is a large-format hopper with decorative collar mouldings, making it particularly well suited to late Victorian and Edwardian buildings where the rainwater system forms part of the architectural composition. Typical applications include commercial heritage buildings, civic buildings, large detached houses, institutional premises, and warehouse conversions where a more substantial fitting is appropriate.

How do I get a price for a rooflight pole winder opener?

Prices are shown on the product pages at tuscanfoundry.com. For volume orders or project pricing, please call 0333 987 4452 or use the contact form on our website.

What size cast iron hopper head do I need for my project?

The right size depends on the width of your gutter run and the volume of water you need to collect. The Strayton H42A is available in four widths: 305mm (12"), 355mm (14"), 457mm (18"), and 610mm (24"). As a general guide, wider hoppers suit larger roof areas and heavier rainfall zones. If you are unsure, our team can advise based on your gutter profile and catchment area — call 0333 987 4452.

How do I get a price for a cast iron hopper head?

Cast iron hopper heads are priced on enquiry due to the range of connection and finish options available. Please call us on 0333 987 4452 or use the contact form and we will respond promptly with a quotation tailored to your project requirements.

We are refurbishing our bathroom and wish to place a heated towel rail in the new bathroom. Our plumber has advised that the heated towel warmer would be connected to the heating system, this would mean when we turn the system off in the summer that the towel rail will not work. What can we do ?

We are refurbishing our bathroom and wish to place a heated towel rail in the new bathroom. Our plumber has advised that the heated towel warmer would be connected to the heating system, this would mean when we turn the system off in the summer that the towel rail will not work. What can we do ?

It is possible for us to supply towel warmers with an electric heating element in them. The Electrad system is a unique system available to us, that enables independent heating of towel rails and radiators via the properties electrical system.

What building types is the Ornamental Airbrick suited to?

The Ornamental Airbrick is suited to Victorian villas, bay-fronted terraces, Gothic Revival institutional buildings, church halls, and civic buildings where decorative ironwork is part of the architectural language. It is also appropriate for listed buildings and conservation area properties where the airbrick is on a prominent elevation and the ventilation grille is expected to carry decorative character.

What pipe connection sizes do your cast iron hopper heads accept?

Our hopper heads are available with a wide range of pipe connections to suit round, square, and rectangular downpipes. The Calnethorpe No.11 accepts round 65mm, 75mm, and 100mm; square 75×75mm, 100×100mm, and 125×125mm; and rectangular 100×75mm, 125×100mm, and 150×100mm. Connection options vary by model — please contact us to confirm availability for your chosen hopper.

Westminster Cast Iron Hopper Head No.521
