Shop / Heating & Radiators / Nouveau Cast Iron Radiators / Nouveau Cast Iron Radiator – 760mm

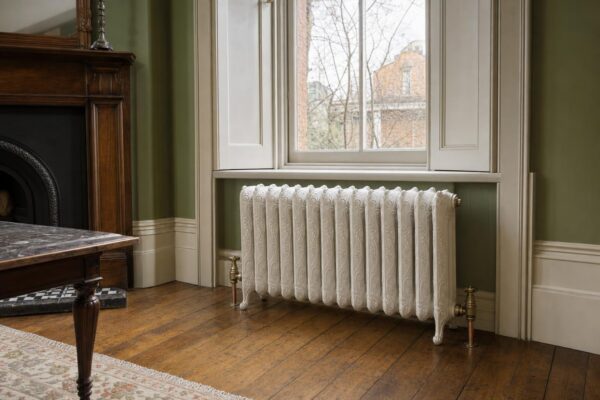

Nouveau Cast Iron Radiator – 760mm with scrolled relief in a period room.
Ornate cast iron radiator with scrolled floral relief on every section, below the dado rail of a Victorian reception room.
CODE NOUV75 Category Nouveau Cast Iron Radiators

Nouveau Cast Iron Radiator – 760mm

£406.20 – £4,197.40Price range: £406.20 through £4,197.40 ex VAT (£487.44 – £5,036.88 inc VAT)

Nouveau cast iron radiator, 760mm high, with scrolled relief on every section. Supplied in primer. 121W per section at ΔT50, 203mm deep, 3 to 15 sections, then odd numbers to 31. Priced by number of sections.

Download the technical data sheet · PDF

Clear

The Nouveau is a two-column cast iron radiator with flowing Art Nouveau scrollwork cast into every section and softly rounded tops. It is a radiator to show rather than hide, made for Victorian and Edwardian reception rooms, halls and principal bedrooms. At 760mm high it sits beneath most sash window boards while giving a strong output for its length, which makes it the usual choice for a decorative radiator under a window.

It is supplied in primer, ready to be painted on site so the decorator can pick out the relief or match the room’s joinery. A factory colour or special-effect finish such as pewter or antique bronze can be quoted on request. Each section is 76mm wide and 203mm deep and gives 121W at ΔT50 (tested to BS EN 442), or about 62.3W at ΔT30 on a heat pump. Radiators are rated to 6 bar working pressure, have ½” BSP connections and carry a 10-year guarantee.

Specification

Height 760mm on integrated feet
Depth 203mm (235mm or 245mm wall to face)
Section width 76mm, plus 24mm overall for the end bushes
Output per section 121W at ΔT50 · about 62.3W at ΔT30
Dry weight 11.0kg per section
Sections 3 to 15 sections, then odd numbers to 31; factory built and pressure tested up to 15, longer radiators joined on site
Finish Primer for painting on site; factory finishes on request
Connections and pressure ½” BSP · 6 bar working pressure (7.8 bar test)
Guarantee 10 years against manufacturing defects

Sizes at a glance

Sections Length Output ΔT50 Output ΔT30 Price ex VAT
6 480mm 726W 374W £812.40
10 784mm 1,210W 623W £1,354.00
14 1,088mm 1,694W 872W £1,895.60

Length is the number of sections × 76mm + 24mm. Sections are cast, so allow ±2mm per section and set valve tails once the radiator has arrived. Valves are sold separately: our Kentwell, Belgrave and Clarendon valve sets suit this radiator.

Choosing and sizing

The Nouveau 760mm is usually chosen for drawing rooms, dining rooms and principal bedrooms with standard sash windows. To size it, divide the room’s heat loss by the output per section and round up. Our guides to sizing cast iron radiators for a period room and cast iron radiators with heat pumps work through examples, and the 2026 specification guide (PDF) lists every pattern and output. For taller or lower positions, see the 954mm Nouveau. See the Nouveau in a period room in our radiator gallery.

Decorative radiators belong in principal rooms; for halls, service rooms and Georgian interiors a plain Victorian 4 column is often the better choice. Send us your room heat losses and we will prepare a radiator schedule at boiler and heat pump temperatures. Call 0333 987 4452 or contact us.

Images are illustrative. The section count and finish shown may differ from your order.

Additional information

Sections

3 Sections, 4 Sections, 5 Sections, 6 Sections, 7 Sections, 8 Sections, 9 Sections, 10 Sections, 11 Sections, 12 Sections, 13 Sections, 14 Sections, 15 Sections, 17 Sections, 19 Sections, 21 Sections, 23 Sections, 25 Sections, 27 Sections, 29 Sections, 31 Sections

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is the output of the Nouveau 760mm cast iron radiator?
Each section gives 121W at ΔT50, tested to BS EN 442. At heat pump temperatures of ΔT30 that falls to about 62.3W per section, so a 10-section radiator gives 1210W at ΔT50 or about 623W at ΔT30.
How long is a Nouveau 760mm radiator?
Length is the number of sections multiplied by 76mm, plus 24mm for the end bushes. A 10-section radiator is 784mm long and a 14-section radiator 1,088mm. Allow ±2mm per section for casting tolerance.
Is an ornate cast iron radiator suitable for a listed building?
It can be, in the right room. Decorative radiators suit principal rooms of Victorian and Edwardian houses, while plainer patterns usually suit service rooms and Georgian interiors. Replacing radiators or altering pipe runs in a listed building may need listed building consent, so check with the conservation officer early.
What finishes are available on the Nouveau radiator?
It is supplied in primer for painting on site, which lets the decorator pick out the relief. Factory colours and special-effect finishes such as pewter or antique bronze can be quoted on request.
How much does a Nouveau 760mm radiator cost?
It is priced per section at £135.40 ex VAT, so a 3-section radiator is £406.20 and a 10-section radiator £1,354.00. Delivery is a flat £95 plus VAT per radiator order. Please call 0333 987 4452 or use the contact form for a quotation.

Technical data sheet

Every product in our cast iron radiator range has a double-sided A4 technical data sheet, written for architects, specifiers and heating engineers. It includes dimensioned drawings, outputs at ΔT50 and ΔT30, weights, water content, fixing details and a model specification clause you can copy into your specification.

Send us your room heat losses and we will prepare a radiator schedule for your project. Call 0333 987 4452.

Download the technical data sheet · PDF

Related products

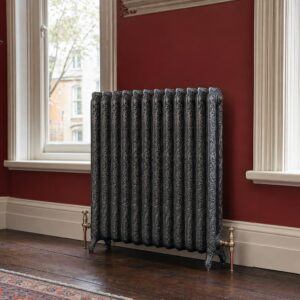

  • Nouveau Cast Iron Radiator – 954mm with scrolled relief in a period room.
