Established 1893   |   BS 460:2002 Certified   |   UK & International Supply   |   Expert Technical Support   |   0333 987 4452

Shop / Soil Pipes / Traditional LCC / LCC Soil Pipe – Eared 1829mm Double Socket

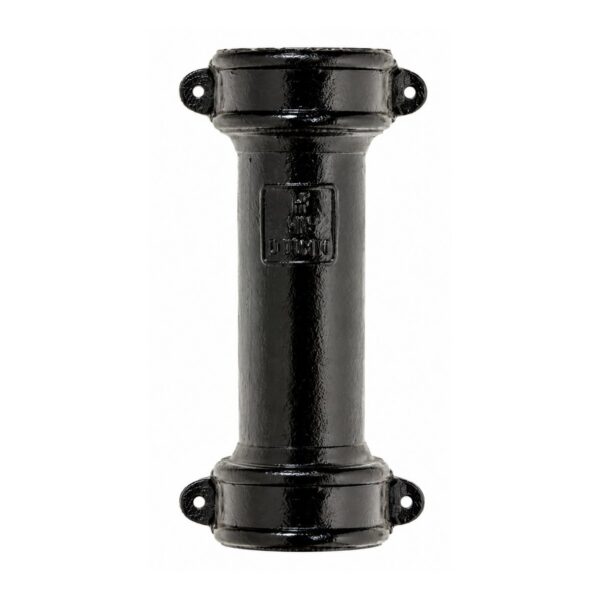

LCC cast iron soil pipe, eared, double socket, 1829mm
CODE SPED-DS Category Traditional LCC

LCC Soil Pipe – Eared 1829mm Double Socket

£198.30 – £556.00Price range: £198.30 through £556.00 ex VAT (£237.96 – £667.20 inc VAT)

An 1829mm eared cast iron soil pipe with a socket at each end, made to be cut into two jointable lengths.

Sizes: 50mm (2″), 65mm (2½″), 75mm (3″), 90mm (3½″), 100mm (4″) and 150mm (6″).

Clear

Palletised UK delivery from £80. Please ensure suitable access and means of unloading on site. See delivery rates.

This 1829mm (6ft) eared LCC soil pipe has a socket cast at each end. It is made for cutting: one casting yields two usable lengths, each with its own socket.

A standard length has a single socket, so cutting it leaves one piece with no means of jointing. The double socket length removes that problem and avoids the extra joints and cost of loose sockets. The pipe carries cast ears for direct fixing to the wall.

It is the practical choice on stacks that do not divide neatly into standard lengths, where branch heights are fixed by the internal plumbing, and on replacement work where new joints must align with existing fixings. Order it alongside standard lengths so that only the double socket pipe is ever cut.

Cast iron to BS 416-1:1990, supplied with a black bitumen coating as standard. Bitumen cannot be reliably overpainted; where the stack is to be painted, ask about our Traditional Express push-fit system.

Suitable for listed buildings and conservation area work. For specification advice, a full schedule or a quotation, call 0333 987 4452 or use the contact form.

Comparing push-fit and caulked soil pipe? Read our Traditional Express vs LCC guide or the soil pipe FAQs.

Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.

Additional information

Diameter

50mm (2"), 65mm (2.5"), 75mm (3"), 90mm (3.5"), 100mm (4"), 150mm (6")

Cross-reference

50mm (2")S2001DE
65mm (2.5")S2501DE
75mm (3")S3001DE
90mm (3.5")S3501DE
100mm (4")S4001DE
150mm (6")S6001DE

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is a double socket soil pipe used for?
It is cut on site where a stack needs a non-standard length. Both cut pieces keep a socket, so one casting gives two usable lengths.
How do I cut cast iron soil pipe?
Use a chain or disc pipe cutter, cut square, and dress the cut end before jointing. With a double socket length, both cut pieces can be jointed.
Is the LCC Soil Pipe - Eared 1829mm Double Socket suitable for a listed building?
Yes. Cast iron socket-and-spigot soil pipe is the original material for external soil stacks on period buildings, and the correct like-for-like replacement where cast iron must be retained. It is made to BS 416-1:1990.
What finish does the LCC Soil Pipe - Eared 1829mm Double Socket come in?
It is supplied with a black bitumen coating. Bitumen cannot be reliably overpainted, so if the stack is to be painted in a colour, our Traditional Express push-fit system is the better choice.
How do I get a price for the LCC Soil Pipe - Eared 1829mm Double Socket?
Prices for each size are shown on this page. For a full schedule or project quotation, please call 0333 987 4452 or use the contact form.
