Coupling-jointed cast iron soil and waste system, compatible with BS 416 pipework. Boss Pipe Double at 90°. Cast iron, supplied factory coated.
Product code: MS4055.
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
The Tuscan Mechanical BS416 Soil range is a coupling-jointed cast iron soil and waste system, dimensionally compatible with BS 416 pipework. Plain-ended pipes and fittings are joined with bolted ductile iron couplings, so there are no caulked or sealed sockets. A stack goes together quickly, and individual fittings can be taken out later without disturbing the rest of the run. Conversion couplings join it to existing socketed LCC pipe, which makes it a practical choice for repairs and extensions to older stacks as well as new work.

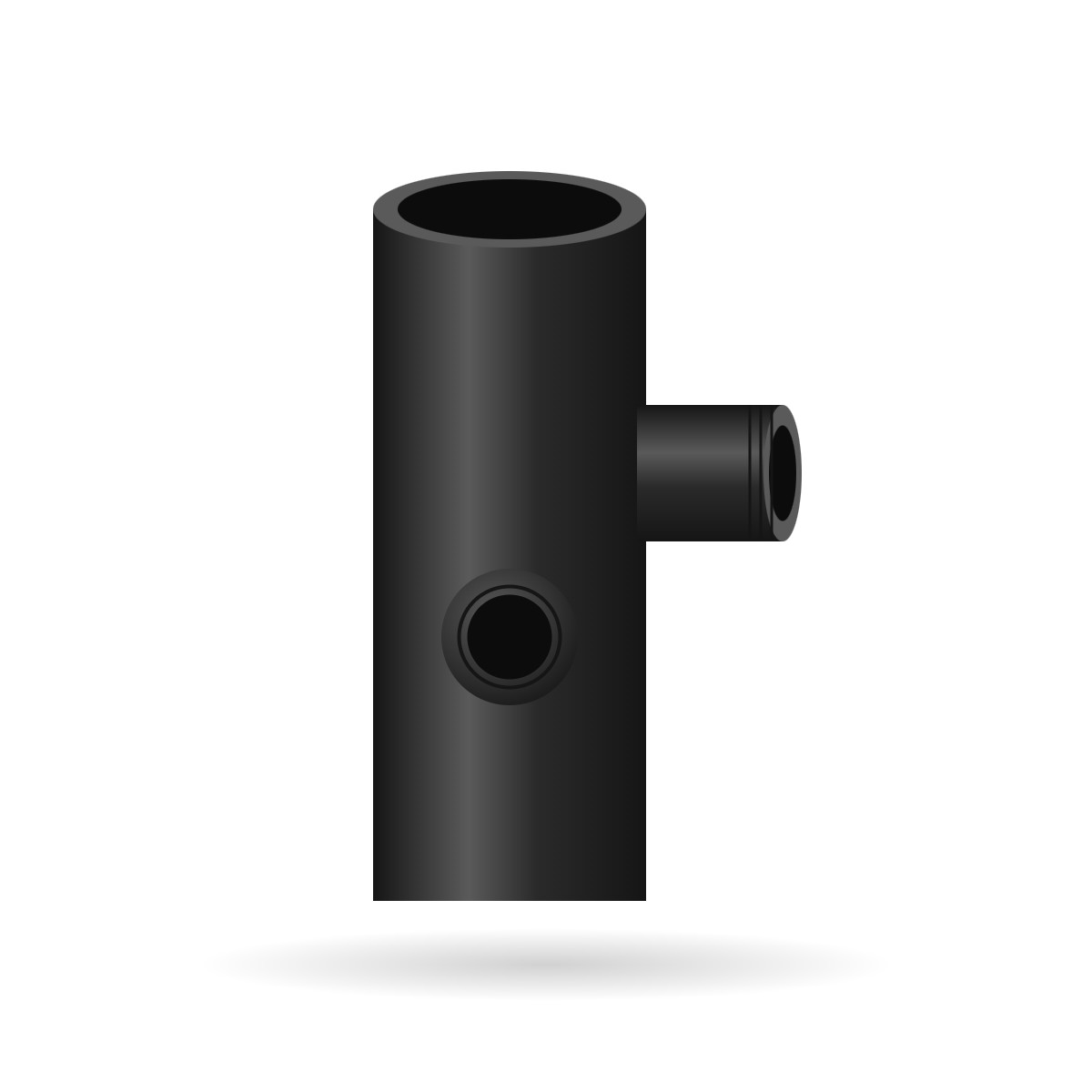

A 100mm pipe with two 2″ BSPT threaded bosses, set at 90° to each other. Each boss takes a threaded waste adaptor.
Product code MS4055. Nominal weight 2.2 kg.
Typical use: Two small-bore waste connections into a stack at one level.
| Item | Product code | Nominal weight |
|---|---|---|
| Boss Pipe Double at 90° | MS4055 | 2.2 kg |
Often used with: Boss Pipe Single, Double Spigot Pipe 3m, Ductile Iron Coupling with Continuity.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
The product code is MS4055. Nominal weight 2.2 kg.
Opposed bosses face in opposite directions, for appliances on either side of the stack. Bosses at 90° suit appliances on two adjacent walls.
Fit a 2″ BSPT plug. Seal the threads with a suitable jointing compound or tape.
The in-house Premier Extra coating is formulated for a life expectancy of around 10 years under normal weather conditions, provided any impact damage or surface scuffing is made good promptly. Coastal locations or higher pollution levels can shorten this, so it's worth asking your local stockist or paint manufacturer for site-specific advice.
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
