Price range: £26.00 through £68.10 ex VAT (£31.20 – £81.72 inc VAT)
Socketless cast iron soil, waste and rainwater system made to BS EN 877. Cantilever Bracket, available in 300mm, 450mm, 450mm Heavy Duty. Cast iron, supplied factory coated.
Product codes: HSD1830 (300mm), HSD1845 (450mm), HSD1846 (450 Heavy Duty).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
Tuscan EN877 Soil is a socketless cast iron soil, waste and rainwater system made to BS EN 877. Plain-ended pipes and fittings are joined with stainless steel or ductile iron couplings, giving a slim, continuous line on a façade or in a service riser. Cast iron is non-combustible, quiet in use and very long-lived. That is why it remains the specification of choice for heritage buildings, tall stacks, and anywhere acoustic performance or fire safety matters.

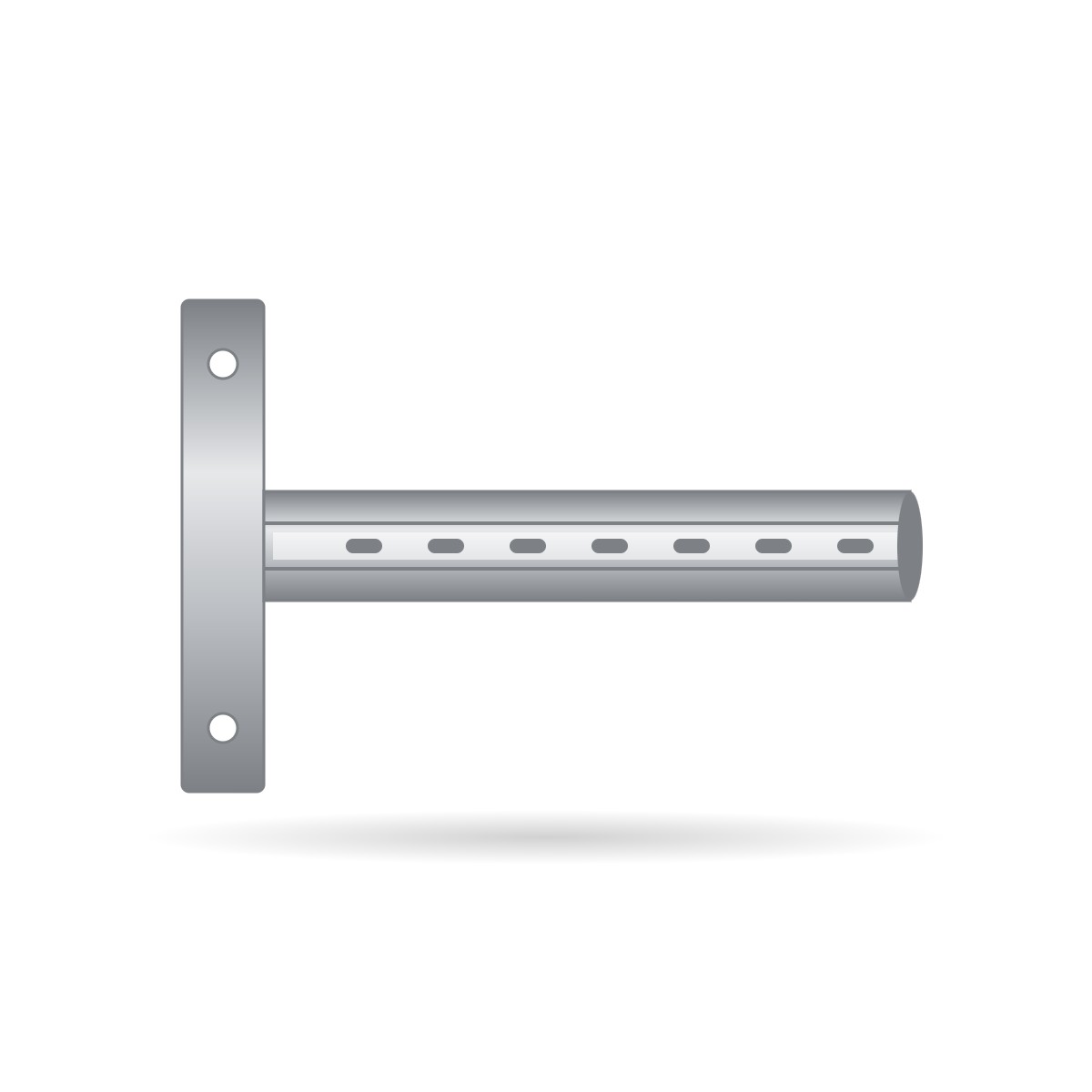

A galvanised cantilever arm in 41mm × 41mm strut. It projects from a wall to carry brackets or stack supports.
Available in 3 sizes, from 300mm to 450mm.
Typical use: Supporting pipework away from the wall face in risers and plant areas.
| Size | Product code |
|---|---|
| 300mm | HSD1830 |
| 450mm Heavy Duty | HSD1846 |
| 450mm | HSD1845 |
Often used with: Stack Support Console, Heavy Duty Bossed Pipe Bracket, Coated Pipe Bracket.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days, and non-stock sizes within 7 to 10 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 300mm (HSD1830), 450mm Heavy Duty (HSD1846), 450mm (HSD1845).
Choose the length for the stand-off required. The heavy duty 450mm arm is rated to 1881N.
| Size | 300mm, 450mm, 450mm Heavy Duty |
|---|
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Eared LCC pipe is fixed through ears cast on the socket. Plain LCC pipe is fixed with holdfasts driven into the mortar joint, screw-to-wall holderbats, build-in holderbats or loose ears. Fix every length below the socket so each joint is supported. Traditional Express uses adjustable brackets.
The Gothic foliate tracery design of the Ornamental Airbrick provides a good free-flow ventilation area relative to its face size. The open area is comparable to other standard cast iron airbrick patterns. The visual density of the pattern at a distance reads as solid ironwork, which suits formal and decorative elevations without compromising subfloor ventilation effectiveness.
Prices are shown on each product page for both sizes and all three finishes. For project quantities, specification support, or conservation enquiries, call us on 0333 987 4452 or use the contact form on our website.
Please call 0333 987 4452 or use the contact form with the size, quantity and connection details, and we'll provide a quotation.
Prices are shown on the product page. For project quantities, multiple pattern orders, or a formal quotation, call 0333 987 4452 or use the contact form.
Our cast iron hopper heads are available in a standard primed and black-painted finish, ready for on-site topcoats. Heritage colour finishes and factory-applied linseed oil paint are available on request. Linseed oil paint is a vapour-permeable, period-appropriate finish particularly well suited to listed buildings and conservation area properties.
Satin chrome has a brushed, low-sheen finish suited to contemporary interiors, while polished chrome has a bright mirror finish. Both are available in the telescopic hand winder range at Tuscan Foundry. The choice typically depends on the existing ironmongery specification.
Prices are shown on the product pages at tuscanfoundry.com. For project or volume enquiries, please call 0333 987 4452 or use the contact form on our website.
We manufacture a wide variety of brackets for many different cast iron gutter and pipe profiles. More common types are the rise and fall, top fix and side fix rafter and the holderbat or pipe clip.
We can also offer traditional drive brackets, repair brackets and fascia brackets in both steel and cast iron.
It is always advisable to replace like with like because quite often the brackets form and important part of the buildings architecture. Occasionally buildings have special decorative brackets and our UK manufacturing allows us to produce small quantities of bespoke brackets when required.
