Shop / Cast Iron Gutters & Pipes / Cast Iron Square Pipes and Fittings / Square Pipe Offset
Cast Iron 75x75mm Square 75mm Proj Offset Black
How to measure the projection of a cast iron square downpipe offset, centre line to centre line
Cast Iron 75x75mm Square Pipe 75mm Proj Offset PX Black

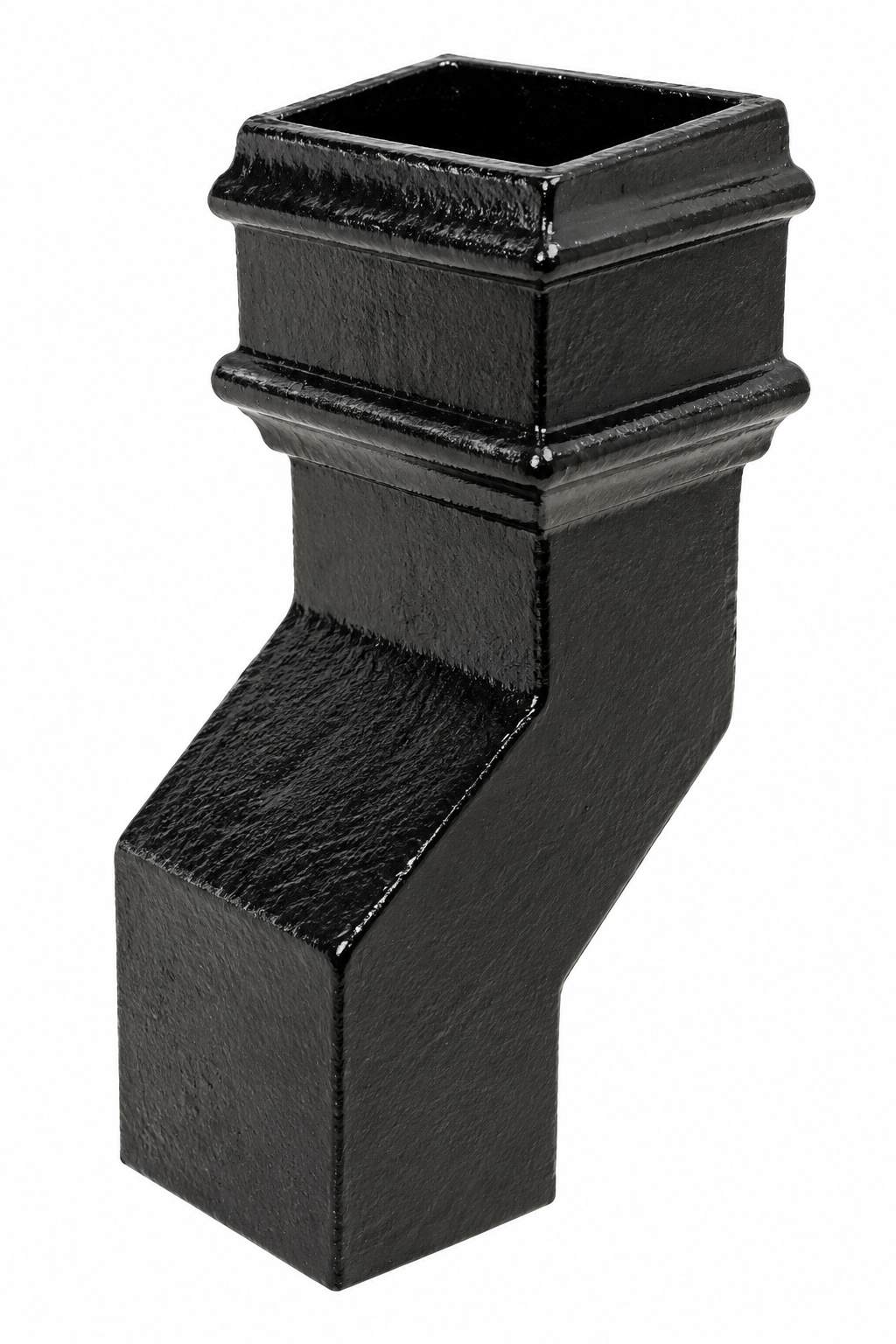

Cast iron square downpipe offset, plain, Tuscan Foundry Products
CODE SQOS Category Cast Iron Square Pipes and Fittings

Square Pipe Offset

£248.40 – £1,446.30Price range: £248.40 through £1,446.30 ex VAT (£298.08 – £1,735.56 inc VAT)

Cast iron offset for 75mm x 75mm and 100mm x 100mm square downpipes, 56mm to 610mm projection, eared or un-eared, in primer or black painted finish.

Measuring the projection: measured horizontally between the centre lines of the upper and lower pipe, not face to face. See the measuring diagram in the gallery, or our guide to measuring an offset for all sizes and a worked example. Stepping over a shallow plinth with little height? A 135° plinth offset may suit better.

Clear

UK delivery from £30. Fittings are despatched boxed. See delivery rates.

The Square Pipe Offset steps a cast iron square downpipe in or out where the wall face changes plane, keeping the pipe vertical above and below the step. Square offsets have no front or side handing, so one fitting serves both situations.

Offsets are made as a single casting with two bends and a straight between them, giving projections from 56mm to 610mm. The head carries the moulded socket band, available eared with integral fixing ears, or un-eared for runs fixed with holderbats or earbands.

Offsets take square downpipes around plinths, string courses, cornices, window sills and projecting bays, and are essential on older buildings where the wall face is rarely in one plane from eaves to ground.

All fittings in our square range are cast iron to BS 460:2002, made to the same moulded profile so pipes and fittings line up neatly on the elevation. Every fitting is supplied either in primer, ready for painting on site, or in factory black. For listed buildings and conservation areas we also offer hand-applied linseed oil paint in heritage colours, which stays breathable and flexible and is straightforward to maintain. Stocked items are usually dispatched within 5 to 7 working days; allow around 6 to 7 weeks where a linseed oil finish is specified.

Square pipe sizes: 75mm x 75mm (3″ x 3″) and 100mm x 100mm (4″ x 4″).

Suitable for listed buildings, conservation areas and heritage restoration. For specification support or a project quotation, call 0333 987 4452.

Additional information

Size/Finish

Primer 75 x 75mm (56mm Offset), Primer 75 x 75mm (75mm Offset), Primer 75 x 75mm (115mm Offset), Primer 75 x 75mm (150mm Offset), Primer 75 x 75mm (230mm Offset), Primer 75 x 75mm (305mm Offset), Primer 75 x 75mm (380mm Offset), Primer 75 x 75mm (457mm Offset), Primer 75 x 75mm (533mm Offset), Primer 75 x 75mm (610mm Offset), Primer 100 x 100mm (56mm Offset), Primer 100 x 100mm (75mm Offset), Primer 100 x 100mm (115mm Offset), Primer 100 x 100mm (150mm Offset), Primer 100 x 100mm (230mm Offset), Primer 100 x 100mm (305mm Offset), Primer 100 x 100mm (380mm Offset), Primer 100 x 100mm (457mm Offset), Primer 100 x 100mm (533mm Offset), Primer 100 x 100mm (610mm Offset), Black Painted 75 x 75mm (56mm Offset), Black Painted 75 x 75mm (75mm Offset), Black Painted 75 x 75mm (115mm Offset), Black Painted 75 x 75mm (150mm Offset), Black Painted 75 x 75mm (230mm Offset), Black Painted 75 x 75mm (305mm Offset), Black Painted 75 x 75mm (380mm Offset), Black Painted 75 x 75mm (457mm Offset), Black Painted 75 x 75mm (533mm Offset), Black Painted 75 x 75mm (610mm Offset), Black Painted 100 x 100mm (56mm Offset), Black Painted 100 x 100mm (75mm Offset), Black Painted 100 x 100mm (115mm Offset), Black Painted 100 x 100mm (150mm Offset), Black Painted 100 x 100mm (230mm Offset), Black Painted 100 x 100mm (305mm Offset), Black Painted 100 x 100mm (380mm Offset), Black Painted 100 x 100mm (457mm Offset), Black Painted 100 x 100mm (533mm Offset), Black Painted 100 x 100mm (610mm Offset)

Eared/Un-Eared

Eared, Un-Eared

Cross-reference

Primer 75 x 75mm (56mm Offset), EaredSQ3340 + ears
Primer 75 x 75mm (56mm Offset), Un-EaredSQ3340
Primer 75 x 75mm (75mm Offset), EaredSQ3341 + ears
Primer 75 x 75mm (75mm Offset), Un-EaredSQ3341
Primer 75 x 75mm (115mm Offset), EaredSQ3342 + ears
Primer 75 x 75mm (115mm Offset), Un-EaredSQ3342
Primer 75 x 75mm (150mm Offset), EaredSQ3343 + ears
Primer 75 x 75mm (150mm Offset), Un-EaredSQ3343
Primer 75 x 75mm (230mm Offset), EaredSQ3344 + ears
Primer 75 x 75mm (230mm Offset), Un-EaredSQ3344
Primer 75 x 75mm (305mm Offset), EaredSQ3345 + ears
Primer 75 x 75mm (305mm Offset), Un-EaredSQ3345
Primer 75 x 75mm (380mm Offset), EaredSQ3346 + ears
Primer 75 x 75mm (380mm Offset), Un-EaredSQ3346
Primer 75 x 75mm (457mm Offset), EaredSQ3347 + ears
Primer 75 x 75mm (457mm Offset), Un-EaredSQ3347
Primer 75 x 75mm (533mm Offset), EaredSQ3348 + ears
Primer 75 x 75mm (533mm Offset), Un-EaredSQ3348
Primer 75 x 75mm (610mm Offset), EaredSQ3349 + ears
Primer 75 x 75mm (610mm Offset), Un-EaredSQ3349
Primer 100 x 100mm (56mm Offset), EaredSQ4440 + ears
Primer 100 x 100mm (56mm Offset), Un-EaredSQ4440
Primer 100 x 100mm (75mm Offset), EaredSQ4441 + ears
Primer 100 x 100mm (75mm Offset), Un-EaredSQ4441
Primer 100 x 100mm (115mm Offset), EaredSQ4442 + ears
Primer 100 x 100mm (115mm Offset), Un-EaredSQ4442
Primer 100 x 100mm (150mm Offset), EaredSQ4443 + ears
Primer 100 x 100mm (150mm Offset), Un-EaredSQ4443
Primer 100 x 100mm (230mm Offset), EaredSQ4444 + ears
Primer 100 x 100mm (230mm Offset), Un-EaredSQ4444
Primer 100 x 100mm (305mm Offset), EaredSQ4445 + ears
Primer 100 x 100mm (305mm Offset), Un-EaredSQ4445
Primer 100 x 100mm (380mm Offset), EaredSQ4446 + ears
Primer 100 x 100mm (380mm Offset), Un-EaredSQ4446
Primer 100 x 100mm (457mm Offset), EaredSQ4447 + ears
Primer 100 x 100mm (457mm Offset), Un-EaredSQ4447
Primer 100 x 100mm (533mm Offset), EaredSQ4448 + ears
Primer 100 x 100mm (533mm Offset), Un-EaredSQ4448
Primer 100 x 100mm (610mm Offset), EaredSQ4449 + ears
Primer 100 x 100mm (610mm Offset), Un-EaredSQ4449
Black Painted 75 x 75mm (56mm Offset), EaredXSQ3340 + ears
Black Painted 75 x 75mm (56mm Offset), Un-EaredXSQ3340
Black Painted 75 x 75mm (75mm Offset), EaredXSQ3341 + ears
Black Painted 75 x 75mm (75mm Offset), Un-EaredXSQ3341
Black Painted 75 x 75mm (115mm Offset), EaredXSQ3342 + ears
Black Painted 75 x 75mm (115mm Offset), Un-EaredXSQ3342
Black Painted 75 x 75mm (150mm Offset), EaredXSQ3343 + ears
Black Painted 75 x 75mm (150mm Offset), Un-EaredXSQ3343
Black Painted 75 x 75mm (230mm Offset), EaredXSQ3344 + ears
Black Painted 75 x 75mm (230mm Offset), Un-EaredXSQ3344
Black Painted 75 x 75mm (305mm Offset), EaredXSQ3345 + ears
Black Painted 75 x 75mm (305mm Offset), Un-EaredXSQ3345
Black Painted 75 x 75mm (380mm Offset), EaredXSQ3346 + ears
Black Painted 75 x 75mm (380mm Offset), Un-EaredXSQ3346
Black Painted 75 x 75mm (457mm Offset), EaredXSQ3347 + ears
Black Painted 75 x 75mm (457mm Offset), Un-EaredXSQ3347
Black Painted 75 x 75mm (533mm Offset), EaredXSQ3348 + ears
Black Painted 75 x 75mm (533mm Offset), Un-EaredXSQ3348
Black Painted 75 x 75mm (610mm Offset), EaredXSQ3349 + ears
Black Painted 75 x 75mm (610mm Offset), Un-EaredXSQ3349
Black Painted 100 x 100mm (56mm Offset), EaredXSQ4440 + ears
Black Painted 100 x 100mm (56mm Offset), Un-EaredXSQ4440
Black Painted 100 x 100mm (75mm Offset), EaredXSQ4441 + ears
Black Painted 100 x 100mm (75mm Offset), Un-EaredXSQ4441
Black Painted 100 x 100mm (115mm Offset), EaredXSQ4442 + ears
Black Painted 100 x 100mm (115mm Offset), Un-EaredXSQ4442
Black Painted 100 x 100mm (150mm Offset), EaredXSQ4443 + ears
Black Painted 100 x 100mm (150mm Offset), Un-EaredXSQ4443
Black Painted 100 x 100mm (230mm Offset), EaredXSQ4444 + ears
Black Painted 100 x 100mm (230mm Offset), Un-EaredXSQ4444
Black Painted 100 x 100mm (305mm Offset), EaredXSQ4445 + ears
Black Painted 100 x 100mm (305mm Offset), Un-EaredXSQ4445
Black Painted 100 x 100mm (380mm Offset), EaredXSQ4446 + ears
Black Painted 100 x 100mm (380mm Offset), Un-EaredXSQ4446
Black Painted 100 x 100mm (457mm Offset), EaredXSQ4447 + ears
Black Painted 100 x 100mm (457mm Offset), Un-EaredXSQ4447
Black Painted 100 x 100mm (533mm Offset), EaredXSQ4448 + ears
Black Painted 100 x 100mm (533mm Offset), Un-EaredXSQ4448
Black Painted 100 x 100mm (610mm Offset), EaredXSQ4449 + ears
Black Painted 100 x 100mm (610mm Offset), Un-EaredXSQ4449

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
How do I measure the projection for a square offset?
Measure horizontally from the face of the wall behind the upper pipe to the face behind the lower pipe. That distance is the projection; choose the nearest size from 56mm to 610mm.
Can I have ears on a square offset?
Yes. Choose eared to fix the offset to the wall at its socket, or un-eared where the run is fixed with separate brackets.
Is the Square Pipe Offset suitable for a listed building?
Yes. It is a traditional cast iron fitting made to BS 460:2002 in the profile found on period square downpipe runs, and it can be supplied in a linseed oil paint finish, which conservation officers usually prefer. We can advise on matching existing pipework; call 0333 987 4452.
How much does the Square Pipe Offset cost and how quickly can it be delivered?
Prices for each size and finish are shown on this page, ex VAT. Stocked items are usually dispatched within 5 to 7 working days, or around 6 to 7 weeks with a linseed oil finish. For project quantities please call 0333 987 4452 or use the contact form.
