Shop / Cast Iron Gutters & Pipes / Cast Iron Square Pipes and Fittings / Square Pipe Anti Splash Shoe Plain

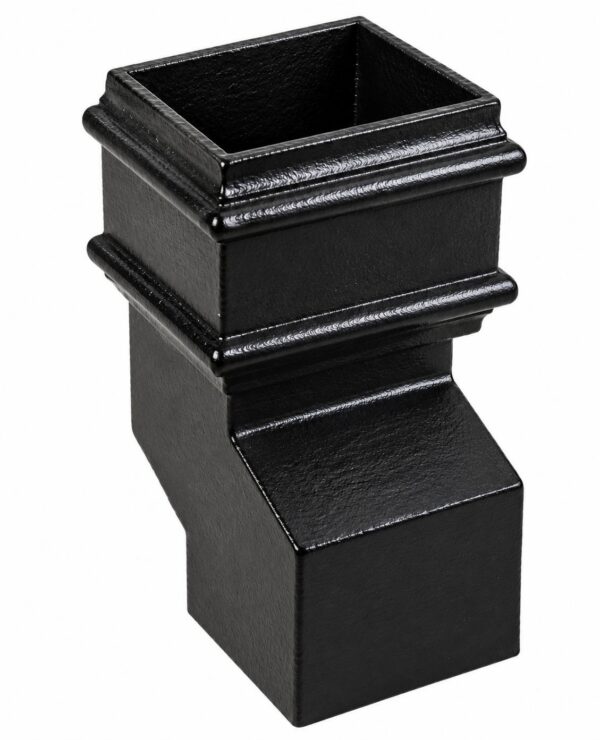

Square Pipe Anti Splash Shoe Plain
CODE SQASSPL Category Cast Iron Square Pipes and Fittings

Square Pipe Anti Splash Shoe Plain

£142.96 – £288.81Price range: £142.96 through £288.81 +VAT

Clear

The Square Pipe Anti-Splash Shoe Plain is a termination fitting for cast iron square downpipes designed to prevent water splashing back at the base of the pipe run. The extended outlet disperses the flow at reduced velocity, limiting the splash that can cause staining to wall bases and surrounding paving on heritage buildings. The plain version connects using separate wall brackets or pipe clips.

Specified on period and listed buildings where the pipe discharges onto a hard surface and splash management is required. Available in three sizes: 75×75mm (3″×3″), 100×100mm (4″×4″), and 125×125mm (5″×5″). Supplied in primed or factory black finish. Manufactured in cast iron to BS 460:2002. For specification support, call 0333 987 4452.

Additional information

Size

75mm x 75mm, 100mm x 100mm, 125mm x 125mm

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
All FAQ
What building types is the Rectangular Box Cast Iron Hopper Head Plain No.46 (H460) suited to?

What building types is the Rectangular Box Cast Iron Hopper Head Plain No.46 (H460) suited to?

The H460 is well suited to Georgian, Regency, and Victorian buildings where a plain, undecorated rectangular hopper is the appropriate choice — particularly listed properties, conservation area buildings, and institutional or commercial buildings in historic town centres. Its clean, restrained form makes it equally appropriate on modern heritage-style construction where period accuracy is required without ornamental detail.

What pipe connection sizes do your cast iron hopper heads accept?

What pipe connection sizes do your cast iron hopper heads accept?

The Strayton H42A accepts round, square, and rectangular pipe connections. Round: 65mm, 75mm, and 100mm. Square: 75×75mm, 100×100mm, and 125×125mm. Rectangular: 100×75mm, 125×100mm, and 150×100mm. Please specify your required connection size when ordering.

How does a hit and miss vent work?

How does a hit and miss vent work?

A hit and miss vent has a sliding plate on the back of the grille that can be opened, partially restricted, or closed entirely without removing the vent from the wall. This allows airflow to be controlled from inside the building, making it suitable for underfloor void ventilation and through-wall ventilation where adjustable airflow is needed.

How do I order a rooflight opener handle?

How do I order a rooflight opener handle?

Rooflight opener handles can be ordered directly through tuscanfoundry.com. For volume orders or project-specific queries, please call 0333 987 4452 or use the contact form on our website.

What is the lead time for bespoke rise and fall gutter brackets?

What is the lead time for bespoke rise and fall gutter brackets?

Our bespoke rise and fall gutter brackets — including fascia, side rafter, and top rafter variants for Osma Roofline and Osma SuperLine systems — are manufactured to order. The standard lead time is 10–14 working days from receipt of a confirmed order. If you have a programme deadline, please call us on 0333 987 4452 and we will advise on current availability.

What pipe connection sizes does the Regent Cast Iron Hopper Head No.1 accept?

What pipe connection sizes does the Regent Cast Iron Hopper Head No.1 accept?

The H1 is available to accept round pipe connections in 65mm, 75mm, 100mm, and 150mm diameters. The 65mm and 75mm variants measure 305mm wide by 197mm deep and 210mm high. The 100mm variant measures 355mm wide by 230mm deep and 240mm high. A 150mm connection option is also available — please contact the team for dimensions.

How do I get a price for a cast iron airbrick?

How do I get a price for a cast iron airbrick?

Prices are shown on each product page. For project quantities, bespoke specifications, or conservation-related queries, please call us on 0333 987 4452 or use the contact form on our website.

What round pipe connection sizes does the Regent Corner Hopper H1A accept?

What round pipe connection sizes does the Regent Corner Hopper H1A accept?

The H1A is available with round pipe connections in 65mm, 75mm, 100mm, and 150mm diameters. Please specify your required connection size when ordering, as this determines the SKU. If you are unsure of the correct pipe size for your project, our team can advise — call 0333 987 4452.

Is a chrome rooflight opener compatible with Lumen Rooflights?

Is a chrome rooflight opener compatible with Lumen Rooflights?

Yes. Both the satin and polished chrome telescopic rooflight hand winder openers are compatible with Lumen Rooflights and most timber-framed skylights. Call 0333 987 4452 if you need to confirm compatibility with a specific model.

What building types is the School Board Airbrick suited to?

What building types is the School Board Airbrick suited to?

The School Board Airbrick suits Victorian and Edwardian institutional, civic, and residential buildings where the square-grid airbrick pattern was standard — including school buildings, civic halls, estate housing, terrace houses, and warehouses. It is also appropriate on listed buildings and conservation area properties as a like-for-like replacement for worn square-grid cast iron vents.
