Price range: £355.70 through £825.20 ex VAT (£426.84 – £990.24 inc VAT)
Cast iron plain (un-eared) pipe for rectangular downpipes, 100x75mm to 150x100mm, in 1829mm, 1219mm, 914mm and 610mm lengths, primer or black painted finish.
Palletised UK delivery from £80. Please ensure suitable access and means of unloading on site. See delivery rates.

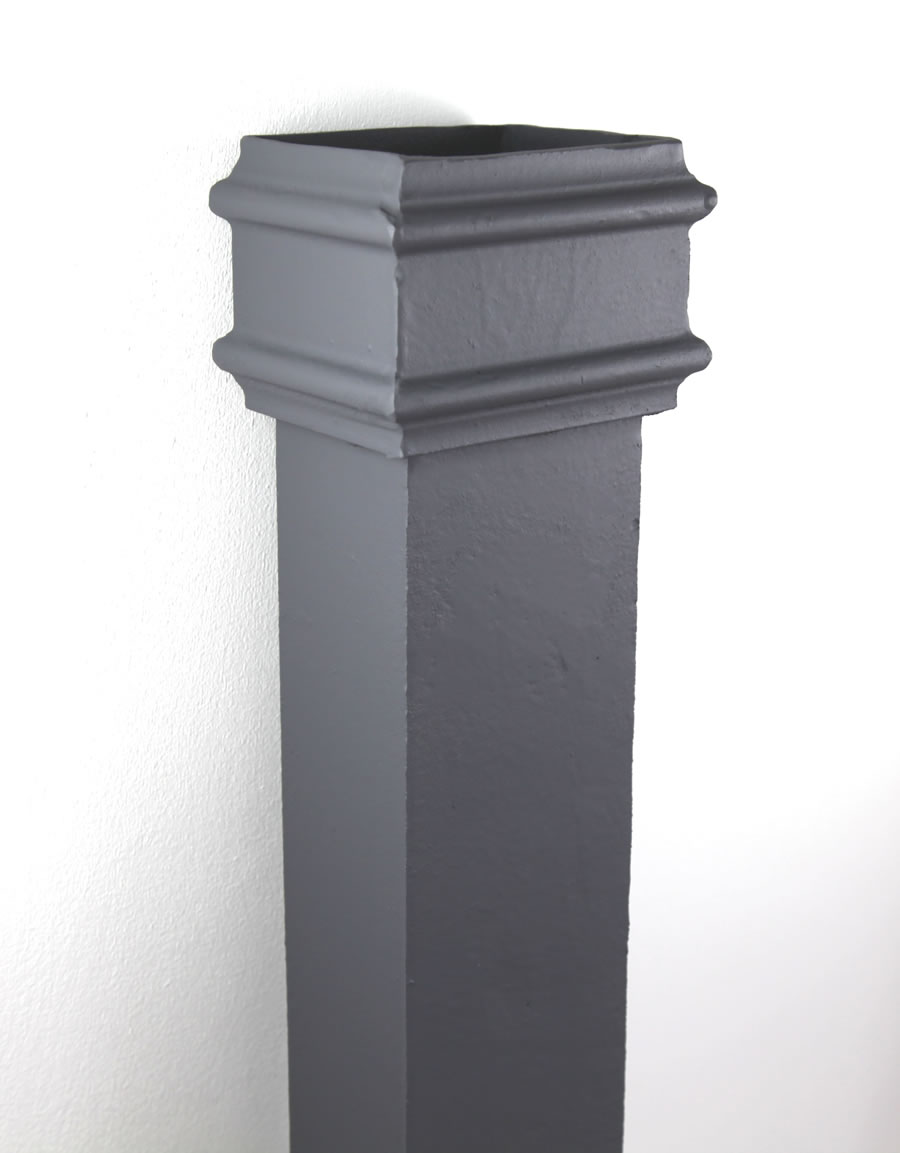

The Rectangular Pipe (Plain) is a length of cast iron rectangular downpipe with a moulded socket and no cast-on ears. It is fixed with build-in holderbats or with plain or ornamental earbands.
Plain pipe is used where the original installation was fixed with holderbats built into the masonry joints, or where ornamental earbands are part of the elevation. It suits Georgian, Regency and Victorian buildings where the downpipe is a deliberate part of the facade.
Lengths of 1829mm, 1219mm, 914mm and 610mm let you build a run with the fewest cuts. Pipes can be cut on site.
All fittings in our rectangular range are cast iron to BS 460:2002, made to the same moulded profile so pipes and fittings line up neatly on the elevation. Every fitting is supplied either in primer, ready for painting on site, or in factory black. For listed buildings and conservation areas we also offer hand-applied linseed oil paint in heritage colours, which stays breathable and flexible and is straightforward to maintain. Stocked items are usually dispatched within 5 to 7 working days; allow around 6 to 7 weeks where a linseed oil finish is specified.
Rectangular pipe sizes: 100mm x 75mm (4″ x 3″), 125mm x 70mm, 125mm x 100mm (5″ x 4″) and 150mm x 100mm (6″ x 4″).
Suitable for listed buildings, conservation areas and heritage restoration. For specification support or a project quotation, call 0333 987 4452.
| Size/Finish | Primer 100 x 75mm (4"x3") x 1829mm, Primer 100 x 75mm (4"x3") x 1219mm, Primer 100 x 75mm (4"x3") x 914mm, Primer 100 x 75mm (4"x3") x 610mm, Primer 125 x 70mm (5"x2.75") x 1829mm, Primer 125 x 70mm (5"x2.75") x 1219mm, Primer 125 x 70mm (5"x2.75") x 914mm, Primer 125 x 70mm (5"x2.75") x 610mm, Primer 125 x 100mm (5"x4") x 1829mm, Primer 125 x 100mm (5"x4") x 1219mm, Primer 125 x 100mm (5"x4") x 914mm, Primer 125 x 100mm (5"x4") x 610mm, Primer 150 x 100mm (6"x4") x 1829mm, Primer 150 x 100mm (6"x4") x 1219mm, Primer 150 x 100mm (6"x4") x 914mm, Primer 150 x 100mm (6"x4") x 610mm, Black Painted 100 x 75mm (4"x3") x 1829mm, Black Painted 100 x 75mm (4"x3") x 1219mm, Black Painted 100 x 75mm (4"x3") x 914mm, Black Painted 100 x 75mm (4"x3") x 610mm, Black Painted 125 x 70mm (5"x2.75") x 1829mm, Black Painted 125 x 70mm (5"x2.75") x 1219mm, Black Painted 125 x 70mm (5"x2.75") x 914mm, Black Painted 125 x 70mm (5"x2.75") x 610mm, Black Painted 125 x 100mm (5"x4") x 1829mm, Black Painted 125 x 100mm (5"x4") x 1219mm, Black Painted 125 x 100mm (5"x4") x 914mm, Black Painted 125 x 100mm (5"x4") x 610mm, Black Painted 150 x 100mm (6"x4") x 1829mm, Black Painted 150 x 100mm (6"x4") x 1219mm, Black Painted 150 x 100mm (6"x4") x 914mm, Black Painted 150 x 100mm (6"x4") x 610mm |
|---|
Yes. All our mild steel brackets are supplied in either silver or black zinc plate. This coating protects the metal however, both will need painting prior to installation.
We have chosen to use zinc plating for two reasons; firstly that it is a more environmentally friendly than galvanising and secondly that it does not block up the threaded part of the rise and fall cups in the way that galvanising does.
Size selection depends on the distance between the mounting point and the rooflight frame, and the desired throw (opening distance). Our telescopic openers are available in 150mm, 250mm, and 300mm; the screw-jack stay is available in 300mm with a 250mm throw. For guidance on sizing for your specific rooflight, please call 0333 987 4452 or use the contact form.
Our hopper heads are available with a wide range of pipe connections to suit round, square, and rectangular downpipes. The Calnethorpe No.11 accepts round 65mm, 75mm, and 100mm; square 75×75mm, 100×100mm, and 125×125mm; and rectangular 100×75mm, 125×100mm, and 150×100mm. Connection options vary by model — please contact us to confirm availability for your chosen hopper.
Most old buildings have cast iron rainwater systems that should be maintained and preserved however; these inherent benefits make cast iron an ideal choice for both traditional and modern installations. It is not uncommon to see modern alternative products marketed with terms like low maintenance or easy to install and cost effective. It has even been said that ‘plastic guttering systems provide a way of achieving a traditional look with modern convenience
As well as being easier to produce, the material enabled eaves gutters to be installed more simply, since lead could only be used in this location as a lining for timber gutters. Many modern materials focus on replicating the appearance of cast iron but those materials can vary rarely offer any of the benefits. Cast iron gutters and pipes offer great strength and durability, a proven history of long life, low noise operation and fire resistance.
Most old buildings have cast iron rainwater systems that should be maintained and preserved however; these inherent benefits make cast iron an ideal choice for both traditional and modern installations. It is not uncommon to see modern alternative products marketed with terms like low maintenance or easy to install and cost effective. It has even been said that ‘plastic guttering systems provide a way of achieving a traditional look with modern convenience’.
These terms tend to refer to possible cost savings rather than any real product benefits. It is also difficult to quantify the benefits of modern convenience over traditional build quality. It is worth remembering that all rainwater goods will require some element of maintaining to ensure they are unblocked by debris and remain functional. No rainwater system cleans itself.
Today most suppliers of cast iron rainwater systems offer products in both primer or pre-painted with a 10 year protective coating. When describing modern materials, the term ‘cost effective’ is used rather than simply saying cheap. There is no doubt that the initial cost of many modern materials is less than cast iron but you might be surprised to know that over its lifespan, cast iron will cost around a third of plastic.
The polished chrome telescopic rooflight hand winder opener is available in multiple sizes. The telescopic mechanism adjusts to accommodate varying rooflight positions and throw requirements. For a full list of available sizes, visit tuscanfoundry.com or call 0333 987 4452.
The louvre face provides directional airflow and offers some resistance to driven rain entering the subfloor void, making it a practical choice for exposed elevations or properties in areas with significant prevailing wind and rainfall. The square-grid (school board) pattern offers a larger open ventilation area but less weather protection.
The Pultney Tapered Hopper Head is well suited to Georgian and Regency townhouses, Victorian terraces, rural farmhouses, barns, and functional estate buildings where a plain, period-correct hopper is the appropriate specification. It also works well on new heritage-style construction. Its unfussy, chamfered form makes it a versatile choice across a wide range of traditional building types.
The Cast Iron Louvre Airbrick (F020802AFC) is available in 225mm × 75mm, 225mm × 150mm, and 225mm × 225mm — standard brick course heights. All sizes share a consistent depth for straightforward like-for-like replacement of original cast iron louvre airbricks.
The H526 measures 440mm wide x 240mm deep x 460mm high, making it well suited to Victorian and Edwardian townhouses.
The in-house Premier Extra coating is formulated for a life expectancy of around 10 years under normal weather conditions, provided any impact damage or surface scuffing is made good promptly. Coastal locations or higher pollution levels can shorten this, so it's worth asking your local stockist or paint manufacturer for site-specific advice.
