Established 1893   |   BS 460:2002 Certified   |   UK & International Supply   |   Expert Technical Support   |   0333 987 4452

Shop / Soil Pipes / Traditional LCC / LCC Soil Pipe Expanding

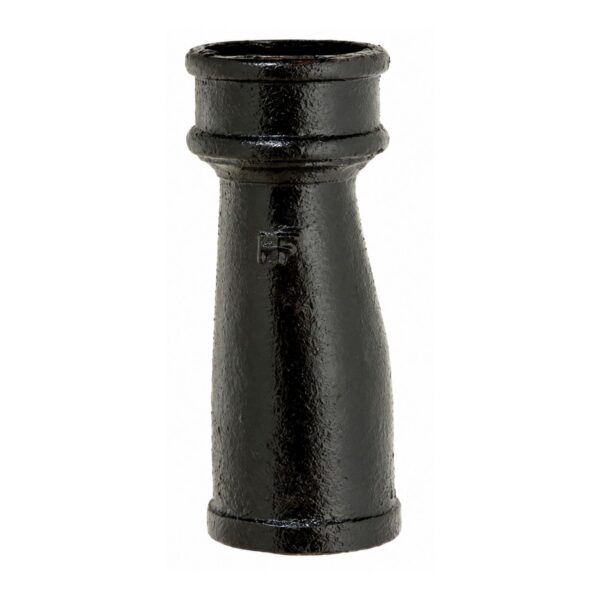

LCC cast iron soil pipe expanding piece
CODE S4052 Category Traditional LCC

LCC Soil Pipe Expanding

£89.80 – £256.30Price range: £89.80 through £256.30 ex VAT (£107.76 – £307.56 inc VAT)

A cast iron expanding piece for increasing the diameter of a traditional LCC soil stack.

Sizes: 50mm to 75mm, 50mm to 100mm, 75mm to 100mm and 100mm to 150mm.

Clear

UK delivery from £30. Fittings are despatched boxed. See delivery rates.

The LCC expanding piece increases the diameter of a cast iron soil stack in the direction of flow, joining a smaller pipe into a larger one within the socket-and-spigot system.

It is used where a waste or vent stack joins a larger soil stack, where an existing smaller-bore pipe must connect to a new section of larger pipe, or where the stack size increases below a group of branch connections. The smaller end takes the spigot of the pipe above; the larger end is a spigot for the socket below.

For reducing in the direction of flow, use the LCC diminishing piece. Both are cast to match the rest of the traditional LCC range.

Cast iron to BS 416-1:1990, supplied with a black bitumen coating as standard. Bitumen cannot be reliably overpainted; where the stack is to be painted, ask about our Traditional Express push-fit system.

Suitable for listed buildings and conservation area work. For specification advice, a full schedule or a quotation, call 0333 987 4452 or use the contact form.

Comparing push-fit and caulked soil pipe? Read our Traditional Express vs LCC guide or the soil pipe FAQs.

Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.

Additional information

Size

75mm x 50mm, 100mm x 50mm, 100mm x 75mm, 150mm x 100mm

Cross-reference

75mm x 50mmS3052
100mm x 50mmS4052
100mm x 75mmS4053
150mm x 100mmS6052

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is the difference between an expanding and a diminishing piece?
An expanding piece increases the pipe diameter in the direction of flow; a diminishing piece reduces it. Both join two sizes within the LCC socket-and-spigot system.
Which sizes does the expanding piece come in?
75mm x 50mm, 100mm x 50mm, 100mm x 75mm and 150mm x 100mm, the larger figure being the outlet size.
Is the LCC Soil Pipe Expanding suitable for a listed building?
Yes. Cast iron socket-and-spigot soil pipe is the original material for external soil stacks on period buildings, and the correct like-for-like replacement where cast iron must be retained. It is made to BS 416-1:1990.
What finish does the LCC Soil Pipe Expanding come in?
It is supplied with a black bitumen coating. Bitumen cannot be reliably overpainted, so if the stack is to be painted in a colour, our Traditional Express push-fit system is the better choice.
How do I get a price for the LCC Soil Pipe Expanding?
Prices for each size are shown on this page. For a full schedule or project quotation, please call 0333 987 4452 or use the contact form.
