Price range: £65.10 through £231.00 ex VAT (£78.12 – £277.20 inc VAT)
Coupling-jointed cast iron soil and waste system, compatible with BS 416 pipework. 87.5° Single Unequal Branch, available in 70mm x 50mm, 100mm x 50mm, 100mm x 70mm, 150mm x 100mm. Cast iron, supplied factory coated.
Product codes: MS3020 (70mm × 50mm), MS4020 (100mm × 50mm), MS4021 (100mm × 70mm), MS6030 (150mm × 100mm).
UK delivery from £30. Fittings are despatched boxed. See delivery rates.
The Tuscan Mechanical BS416 Soil range is a coupling-jointed cast iron soil and waste system, dimensionally compatible with BS 416 pipework. Plain-ended pipes and fittings are joined with bolted ductile iron couplings, so there are no caulked or sealed sockets. A stack goes together quickly, and individual fittings can be taken out later without disturbing the rest of the run. Conversion couplings join it to existing socketed LCC pipe, which makes it a practical choice for repairs and extensions to older stacks as well as new work.

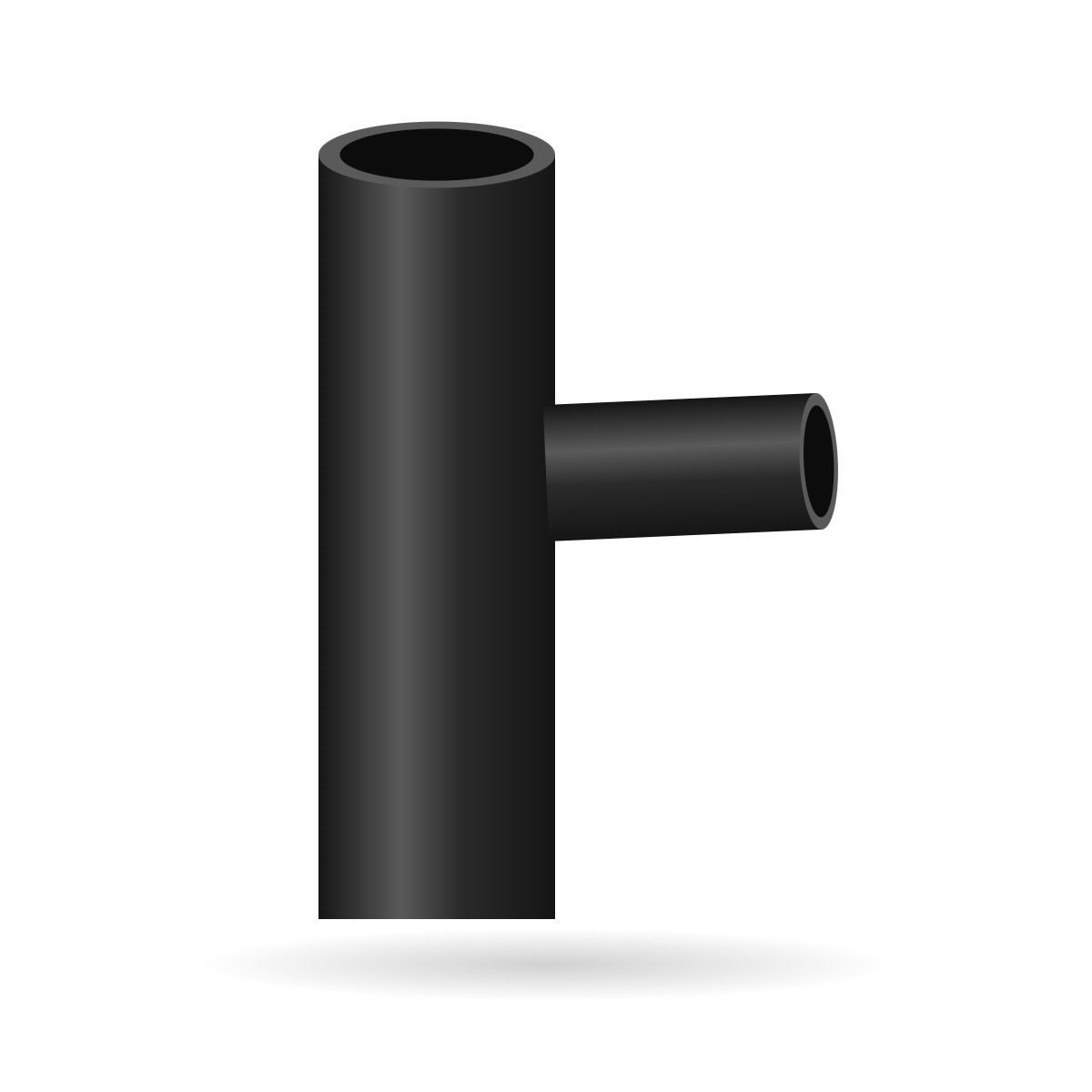

An 87.5° single branch with a smaller inlet than the main run, for example 100mm × 50mm. It brings a smaller pipe into the stack or drain without a separate taper.
Available in 4 sizes, from 70mm × 50mm to 150mm × 100mm. Nominal weights run from 1.5 kg (70mm × 50mm) to 6.5 kg (150mm × 100mm).
Typical use: Waste and branch connections into a larger stack or drain.
| Size | Product code | Nominal weight |
|---|---|---|
| 70mm × 50mm | MS3020 | 1.5 kg |
| 100mm × 50mm | MS4020 | 2.2 kg |
| 100mm × 70mm | MS4021 | 2.5 kg |
| 150mm × 100mm | MS6030 | 6.5 kg |
Often used with: 87.5° Single Equal Branch, Double Spigot Pipe 3m, Ductile Iron Coupling with Continuity, Taper Pipe.
Comparing systems? Our guide to choosing a cast iron soil pipe system sets out how LCC, Traditional Express, mechanical BS 416 and EN 877 differ.
Prices are per item, excluding VAT and delivery. Stock items are usually dispatched within 5 to 7 working days. For a full stack or drainage schedule, or advice on the right fittings, call 0333 987 4452 or use the contact form.
It is available in 70mm × 50mm (MS3020), 100mm × 50mm (MS4020), 100mm × 70mm (MS4021), 150mm × 100mm (MS6030).
The first figure is the main run and the second is the branch. A 100mm × 50mm branch fits a 100mm stack and takes a 50mm branch pipe.
The 87.5° branch is the standard choice for bringing a horizontal branch pipe into a vertical stack. The branch pipe is laid to a slight fall, so the junction sits just short of a right angle.
| Size | 70mm x 50mm, 100mm x 50mm, 100mm x 70mm, 150mm x 100mm |
|---|
