Established 1893   |   BS 460:2002 Certified   |   UK & International Supply   |   Expert Technical Support   |   0333 987 4452

Shop / Cast Iron Gutters & Pipes / Cast Iron Rectangular Pipes & Fittings / Rectangular Pipe Plinth Offset 135°

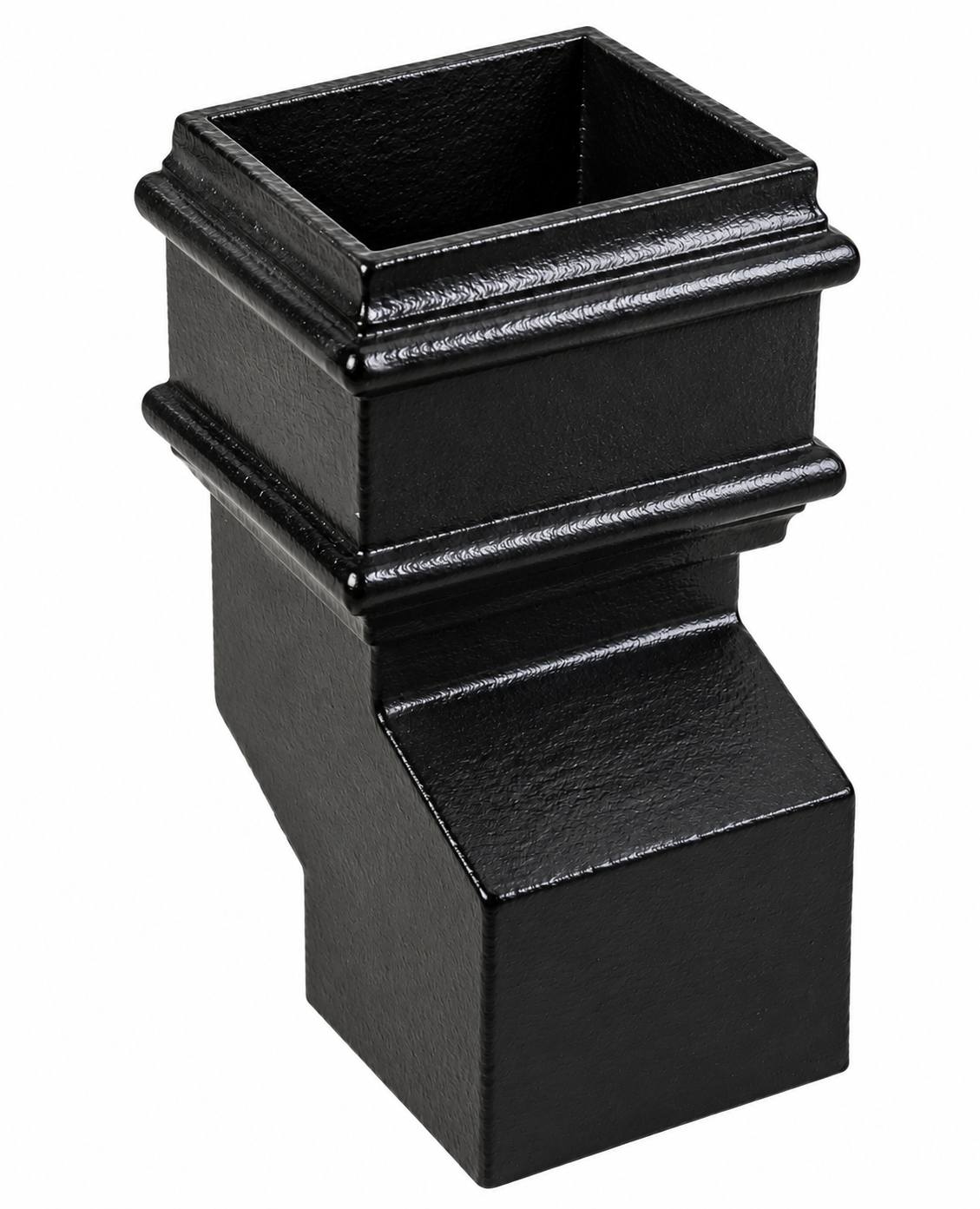

Cast iron rectangular downpipe 135 degree plinth offset, plain, Tuscan Foundry Products
How to measure the projection of a cast iron rectangular downpipe 135 degree plinth offset

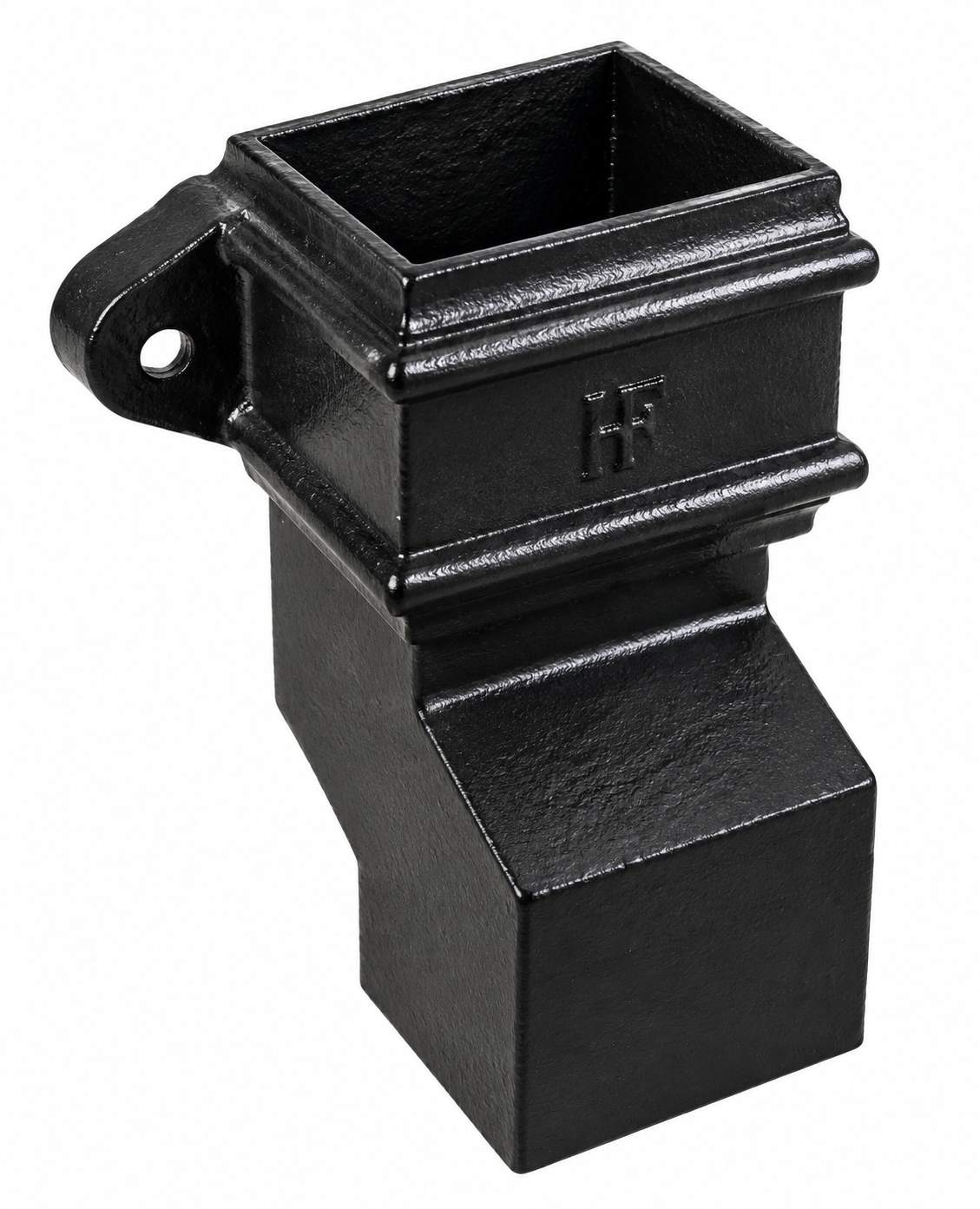

Cast iron rectangular downpipe 135 degree plinth offset with fixing ear, Tuscan Foundry Products
CODE RTPO Category Cast Iron Rectangular Pipes & Fittings

Rectangular Pipe Plinth Offset 135°

£269.50 – £778.40Price range: £269.50 through £778.40 ex VAT (£323.40 – £934.08 inc VAT)

Cast iron 135 degree plinth offset with 75mm, 115mm or 150mm projection for rectangular cast iron downpipes, eared or un-eared, in primer or black painted finish, for period, listed and traditional buildings.

Plinth offset (135°): steeper bends step the pipe out in less height, for clearing a shallow plinth. Projection is measured horizontally between the centre lines of the upper and lower pipe. See the measuring diagram in the gallery, or our guide to measuring an offset. For projections over 150mm, use a standard 112.5° offset.

Clear

UK delivery from £30. Fittings are despatched boxed. See delivery rates.

The Rectangular Pipe Plinth Offset 135° carries a rectangular cast iron downpipe out over a projecting plinth, string course or base course, using 135 degree bends either side of the offset. Available with a 75mm, 115mm or 150mm projection, eared with an integral fixing ear or un-eared for runs fixed with holderbats or earbands.

Cast to BS 460:2002 for 100mm x 75mm (4″ x 3″), 125mm x 70mm (5″ x 2.75″), 125mm x 100mm (5″ x 4″) and 150mm x 100mm (6″ x 4″) rectangular cast iron rainwater pipe, supplied in primer or black painted finish. Linseed oil and heritage colour finishes are available on request. For specification support, call 0333 987 4452.

Additional information

Size/Finish

Primer 100 x 75mm (75mm Projection), Primer 100 x 75mm (115mm Projection), Primer 100 x 75mm (150mm Projection), Primer 125 x 70mm (75mm Projection), Primer 125 x 70mm (115mm Projection), Primer 125 x 70mm (150mm Projection), Primer 125 x 100mm (75mm Projection), Primer 125 x 100mm (115mm Projection), Primer 125 x 100mm (150mm Projection), Primer 150 x 100mm (75mm Projection), Primer 150 x 100mm (115mm Projection), Primer 150 x 100mm (150mm Projection), Black Painted 100 x 75mm (75mm Projection), Black Painted 100 x 75mm (115mm Projection), Black Painted 100 x 75mm (150mm Projection), Black Painted 125 x 70mm (75mm Projection), Black Painted 125 x 70mm (115mm Projection), Black Painted 125 x 70mm (150mm Projection), Black Painted 125 x 100mm (75mm Projection), Black Painted 125 x 100mm (115mm Projection), Black Painted 125 x 100mm (150mm Projection), Black Painted 150 x 100mm (75mm Projection), Black Painted 150 x 100mm (115mm Projection), Black Painted 150 x 100mm (150mm Projection)

Eared/Un-Eared

Eared, Un-Eared

Cross-reference

Primer 100 x 75mm (75mm Projection), EaredRT4341P + ears
Primer 100 x 75mm (75mm Projection), Un-EaredRT4341P
Primer 100 x 75mm (115mm Projection), EaredRT4342P + ears
Primer 100 x 75mm (115mm Projection), Un-EaredRT4342P
Primer 100 x 75mm (150mm Projection), EaredRT4343P + ears
Primer 100 x 75mm (150mm Projection), Un-EaredRT4343P
Primer 125 x 70mm (75mm Projection), EaredRT5341P + ears
Primer 125 x 70mm (75mm Projection), Un-EaredRT5341P
Primer 125 x 70mm (115mm Projection), EaredRT5342P + ears
Primer 125 x 70mm (115mm Projection), Un-EaredRT5342P
Primer 125 x 70mm (150mm Projection), EaredRT5343P + ears
Primer 125 x 70mm (150mm Projection), Un-EaredRT5343P
Primer 125 x 100mm (75mm Projection), EaredRT5441P + ears
Primer 125 x 100mm (75mm Projection), Un-EaredRT5441P
Primer 125 x 100mm (115mm Projection), EaredRT5442P + ears
Primer 125 x 100mm (115mm Projection), Un-EaredRT5442P
Primer 125 x 100mm (150mm Projection), EaredRT5443P + ears
Primer 125 x 100mm (150mm Projection), Un-EaredRT5443P
Primer 150 x 100mm (75mm Projection), EaredRT6441P + ears
Primer 150 x 100mm (75mm Projection), Un-EaredRT6441P
Primer 150 x 100mm (115mm Projection), EaredRT6442P + ears
Primer 150 x 100mm (115mm Projection), Un-EaredRT6442P
Primer 150 x 100mm (150mm Projection), EaredRT6443P + ears
Primer 150 x 100mm (150mm Projection), Un-EaredRT6443P
Black Painted 100 x 75mm (75mm Projection), EaredXRT4341P + ears
Black Painted 100 x 75mm (75mm Projection), Un-EaredXRT4341P
Black Painted 100 x 75mm (115mm Projection), EaredXRT4342P + ears
Black Painted 100 x 75mm (115mm Projection), Un-EaredXRT4342P
Black Painted 100 x 75mm (150mm Projection), EaredXRT4343P + ears
Black Painted 100 x 75mm (150mm Projection), Un-EaredXRT4343P
Black Painted 125 x 70mm (75mm Projection), EaredXRT5341P + ears
Black Painted 125 x 70mm (75mm Projection), Un-EaredXRT5341P
Black Painted 125 x 70mm (115mm Projection), EaredXRT5342P + ears
Black Painted 125 x 70mm (115mm Projection), Un-EaredXRT5342P
Black Painted 125 x 70mm (150mm Projection), EaredXRT5343P + ears
Black Painted 125 x 70mm (150mm Projection), Un-EaredXRT5343P
Black Painted 125 x 100mm (75mm Projection), EaredXRT5441P + ears
Black Painted 125 x 100mm (75mm Projection), Un-EaredXRT5441P
Black Painted 125 x 100mm (115mm Projection), EaredXRT5442P + ears
Black Painted 125 x 100mm (115mm Projection), Un-EaredXRT5442P
Black Painted 125 x 100mm (150mm Projection), EaredXRT5443P + ears
Black Painted 125 x 100mm (150mm Projection), Un-EaredXRT5443P
Black Painted 150 x 100mm (75mm Projection), EaredXRT6441P + ears
Black Painted 150 x 100mm (75mm Projection), Un-EaredXRT6441P
Black Painted 150 x 100mm (115mm Projection), EaredXRT6442P + ears
Black Painted 150 x 100mm (115mm Projection), Un-EaredXRT6442P
Black Painted 150 x 100mm (150mm Projection), EaredXRT6443P + ears
Black Painted 150 x 100mm (150mm Projection), Un-EaredXRT6443P

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • General
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
  • Soil Pipes
All FAQ
What is a plinth offset?
A short offset with 135° bends that steps the foot of a downpipe out over a projecting plinth or base course, keeping the pipe clear of the masonry.
Which projections are available?
75mm, 115mm and 150mm. Measure horizontally from the wall face above the plinth to the face of the plinth.
What is the difference between eared and un-eared?
Eared fittings have integral fixing ears cast on the socket and are screwed directly to the wall. Un-eared fittings have a plain socket and are fixed with holderbats or earbands.
Is the Rectangular Pipe Plinth Offset 135° suitable for a listed building?
Yes. It is a traditional cast iron fitting made to BS 460:2002 in the moulded profile found on period rectangular downpipe runs. It can be supplied in primer, black, or hand-applied linseed oil paint in heritage colours for conservation work.
