Shop / Brackets and Fittings / Cast Iron / RB501G46 – Side Rafter Rise and Fall Bracket for G46 Gutter
Side rafter rise and fall bracket for Notts Og cast iron guttering
CODE RB501G46 Categories Bespoke Gutter Brackets, Brackets and Fittings, Cast Iron, Cast Iron G46 Moulded Ogee Gutter, Cast Iron Gutters & Pipes

RB501G46 – Side Rafter Rise and Fall Bracket for G46 Gutter

£30.25 – £32.45Price range: £30.25 through £32.45 +VAT

Side rafter rise and fall bracket for G46 cast iron gutter.
Sizes available:

100mm x 75mm
125mm x 75mm

We also manufacture side rafter rise and fall brackets for moulded and Og guttering made by: Osma, Marley, Hunter and Lindab

Clear

The RB501G46 is a side rafter rise and fall bracket for the G46 moulded cast iron gutter. Where there is no fascia board — on open eaves, or where the rafter face is the only available fixing point — the RB501G46 mounts directly to the side face of the rafter and provides adjustable support at the correct height for the gutter run. The bracket cup is shaped specifically for the G46 moulded section.

Available in both G46 profile sizes: 125mm (5″) and 150mm (6″). Zinc-plated steel finish. The threaded rise and fall cup allows precise fall setting at each bracket position independently of the rafter pitch — important on the large Victorian and Edwardian buildings where the G46 is the standard profile and long gutter runs require accurate gradient management.

Specified on listed buildings and heritage restoration projects where the G46 moulded pattern is the historically correct profile. The RB501G46 is the G46 equivalent of the RB501 bracket range.

Compatibility: G46 moulded cast iron gutter 125mm and 150mm only. For specification support, call 0333 987 4452.

Additional information

Size

-J- 100mm x 75mm, -M- 125mm x 100mm

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
All FAQ
What pipe connection sizes do your cast iron hopper heads accept?

What pipe connection sizes do your cast iron hopper heads accept?

The Paxton H82 accepts round, square, and rectangular pipe connections. Round: 65mm, 75mm, and 100mm. Square: 75×75mm, 100×100mm, and 125×125mm. Rectangular: 100×75mm, 125×100mm, and 150×100mm. Bespoke adaptations including double pipe connections are also available on request. Please confirm your required connection type when ordering.

Can the louvre airbrick be used to replace an existing cast iron ventilation grille?

Can the louvre airbrick be used to replace an existing cast iron ventilation grille?

Yes. The Louvre Airbrick is dimensioned to standard brick course openings and is suitable for direct replacement of worn, broken, or missing original cast iron louvre grilles. If you are unsure of the size required, measure the opening in the brickwork rather than the existing damaged grille.

What building types is the Paxton H82 hopper head suited to?

What building types is the Paxton H82 hopper head suited to?

The Paxton H82 is a large-format hopper with decorative collar mouldings, making it particularly well suited to late Victorian and Edwardian buildings where the rainwater system forms part of the architectural composition. Typical applications include commercial heritage buildings, civic buildings, large detached houses, institutional premises, and warehouse conversions where a more substantial fitting is appropriate.

Please can you advise whether we will require 1/2″ or 3/4″ BSP connections for our new cast iron radiator.

Please can you advise whether we will require 1/2″ or 3/4″ BSP connections for our new cast iron radiator.

All of our cast iron radiators are availbale as standard with a 1/2″ BSP (15mm) connection. We are though also able to supply many of our radiators and valves with 3/4″ BSP connections. Due to the size proportions of some radiators and valves 3/4″ connections may be more suitable.

How do I order a rooflight opener handle?

How do I order a rooflight opener handle?

Rooflight opener handles can be ordered directly through tuscanfoundry.com. For volume orders or project-specific queries, please call 0333 987 4452 or use the contact form on our website.

What sizes are available for the School Board Airbrick?

What sizes are available for the School Board Airbrick?

The School Board Airbrick (F020801AFC) is available in three standard sizes: 225mm × 75mm, 225mm × 150mm, and 225mm × 225mm. These correspond to one-, two-, and three-brick-course heights and allow ventilation requirements to be met across a range of subfloor and wall opening sizes.

What sizes and weights are available for the Ornamental Airbrick?

What sizes and weights are available for the Ornamental Airbrick?

The Ornamental Airbrick (OAB) is available in three sizes: 225mm × 75mm (2.8kg), 225mm × 150mm (4.1kg), and 225mm × 225mm (5.8kg). All sizes have a uniform depth of 75mm, making them consistent to install across a subfloor ventilation course.

How long is the drive in spike on your rise and fall gutter bracket?

How long is the drive in spike on your rise and fall gutter bracket?

Our standard spike or sturt length is 300mm (12″). Other sizes are available upon request.

What pipe connection sizes does the Regent Cast Iron Hopper Head No.1 accept?

What pipe connection sizes does the Regent Cast Iron Hopper Head No.1 accept?

The H1 is available to accept round pipe connections in 65mm, 75mm, 100mm, and 150mm diameters. The 65mm and 75mm variants measure 305mm wide by 197mm deep and 210mm high. The 100mm variant measures 355mm wide by 230mm deep and 240mm high. A 150mm connection option is also available — please contact the team for dimensions.

What building types is the Satin Chrome Rooflight Hand Winder Opener suited to?

What building types is the Satin Chrome Rooflight Hand Winder Opener suited to?

The satin chrome telescopic rooflight hand winder is well suited to contemporary and transitional interiors where a brushed chrome finish complements modern or minimal ironmongery. It is compatible with Lumen Rooflights and timber-framed skylights.

Related products

  • Fascia-rise-and-fall-bracket-for-cast-iron-half-round-guttering

    RB502 – Fascia Rise and Fall Bracket for Plain Half Round Gutter

    £25.85 – £32.45Price range: £25.85 through £32.45 +VAT
    Select options This product has multiple variants. The options may be chosen on the product page
  • G46 Moulded Gutter Union Clip

    G46 Moulded Gutter Union Clip

    £34.79 – £50.67Price range: £34.79 through £50.67 +VAT
    Select options This product has multiple variants. The options may be chosen on the product page

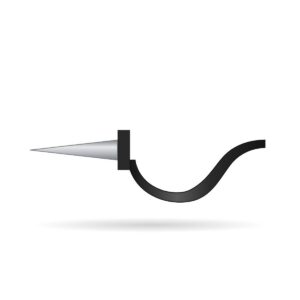

  • Cast Iron 100x75mm G46 Moulded Rise & Fall Bracket G4343
