Technical Drawings

Home > Gallery > Technical Drawings

Technical Drawings

Every profile we cast is backed by a dimensioned drawing — the reference our own pattern shop works to, and the same detail we can share with architects, surveyors and contractors specifying a match. The drawings below cover a selection of standard gutter, downpipe and fitting profiles from our range, each shown in section with full dimensions in millimetres, to BS 460.

If you’re specifying a repair or replacement and need to confirm a profile against existing rainwater goods on site, these drawings are a useful starting point. For a profile not shown here, get in touch and we’ll send what’s available.

Selected drawings

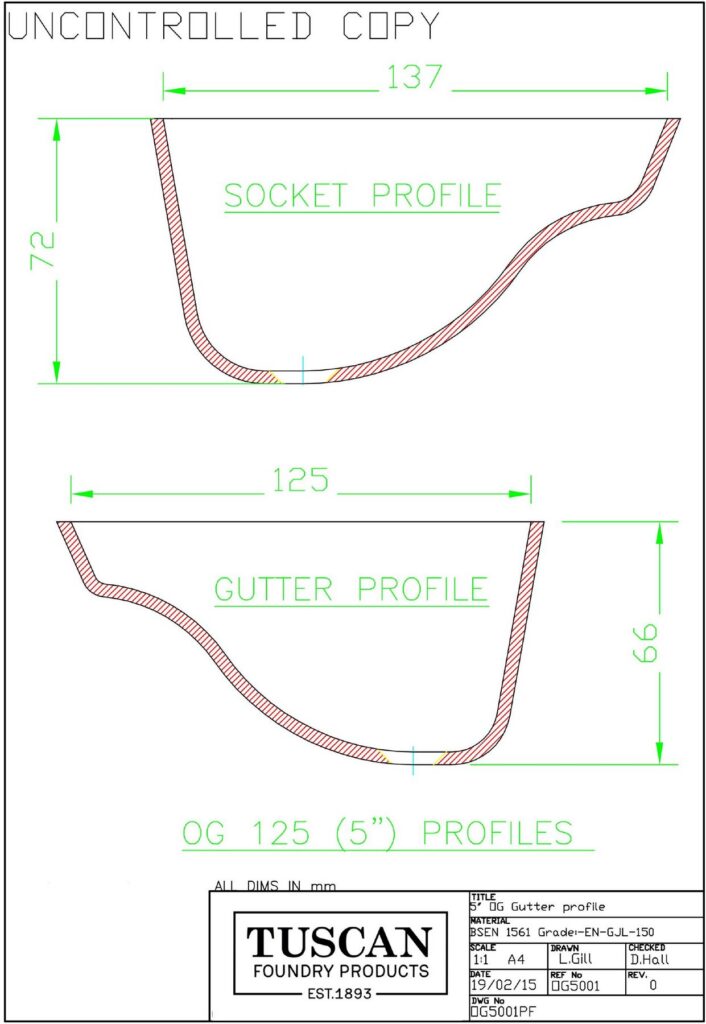

Technical drawing of a 125mm (5") cast iron Ogee gutter profile, socket and spigot

Profile drawing for our 125mm (5″) Ogee gutter, showing socket and spigot ends.

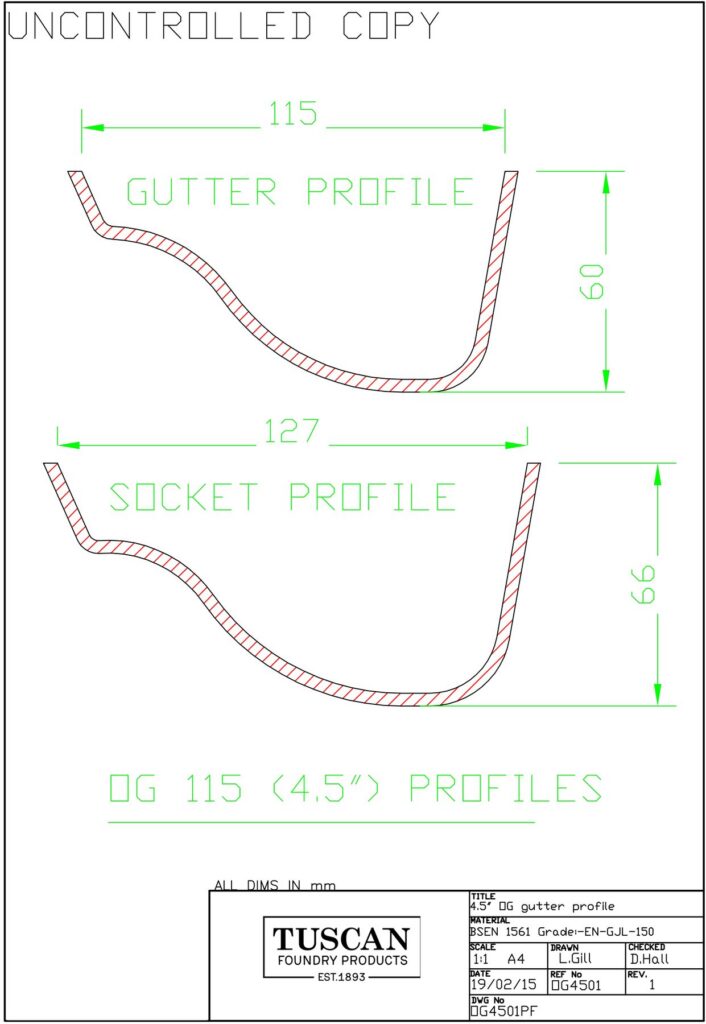

Technical drawing of a 115mm (4.5") cast iron Ogee gutter profile, socket and spigot

Profile drawing for our 115mm (4.5″) Ogee gutter, showing socket and spigot ends.

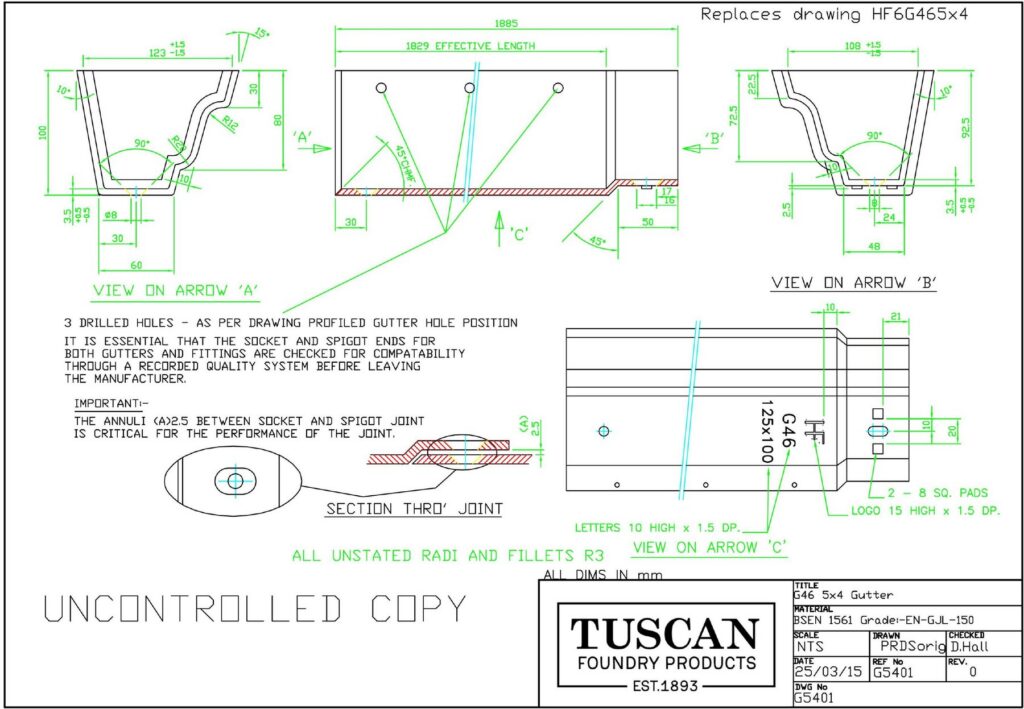

Technical drawing of the G46 moulded Ogee cast iron gutter, 125 x 75mm

Profile drawing for the G46 moulded Ogee gutter, 125 x 75mm.

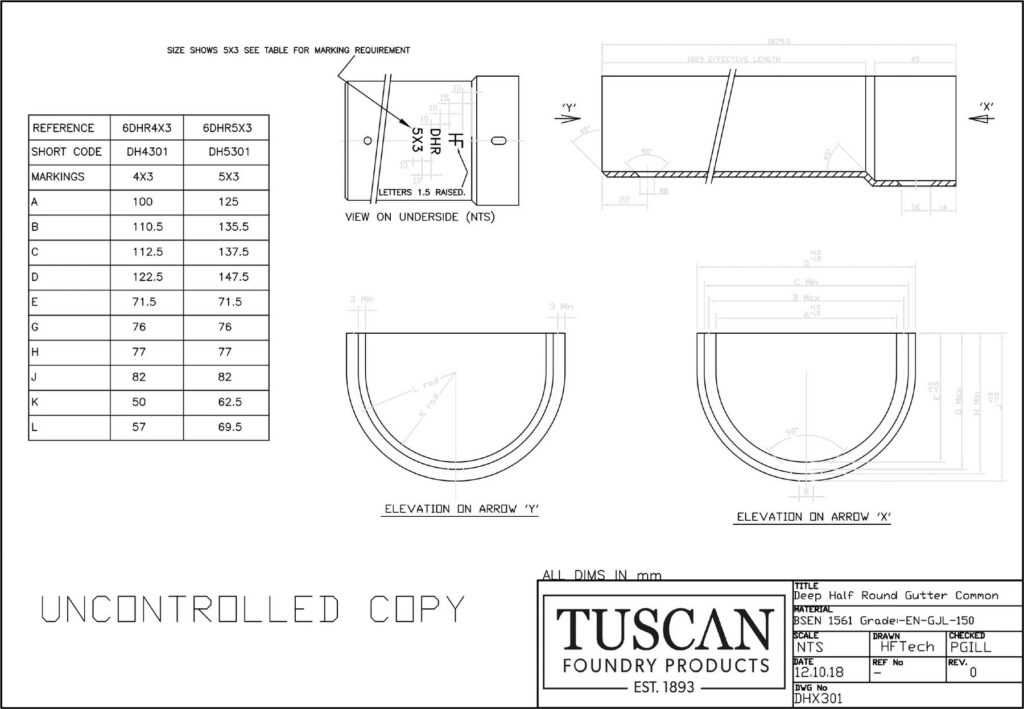

Technical drawing of a cast iron deep half round gutter profile

Profile drawing for our deep half round gutter.

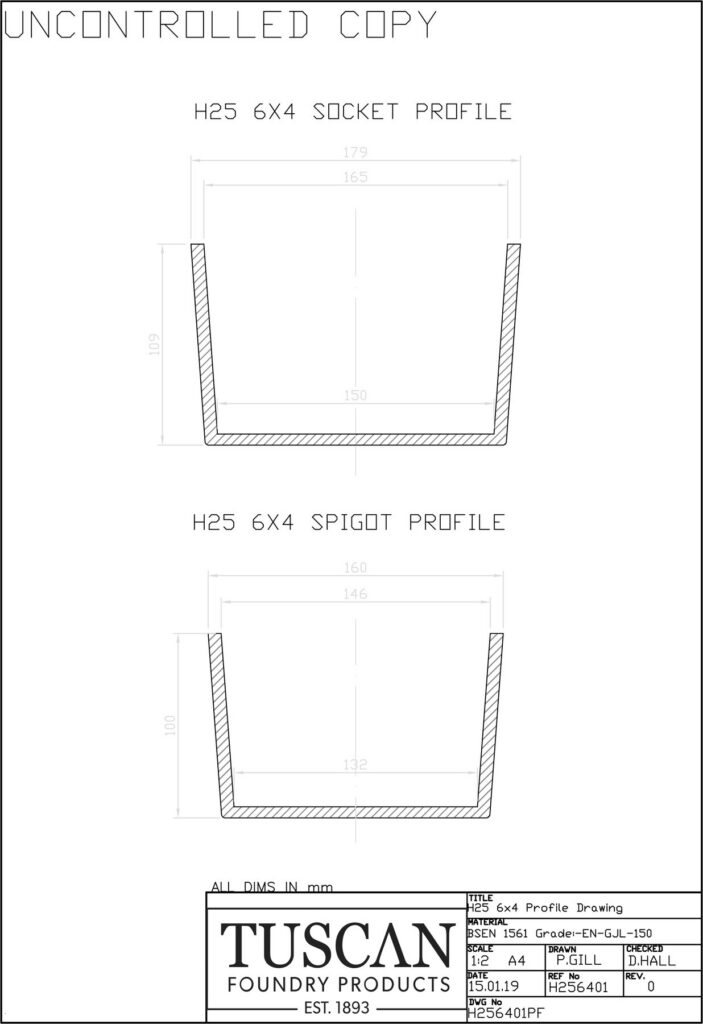

Technical drawing of the H25 cast iron box gutter, 6x4, socket and spigot

Socket and spigot profile drawing for the H25 6×4 box gutter.

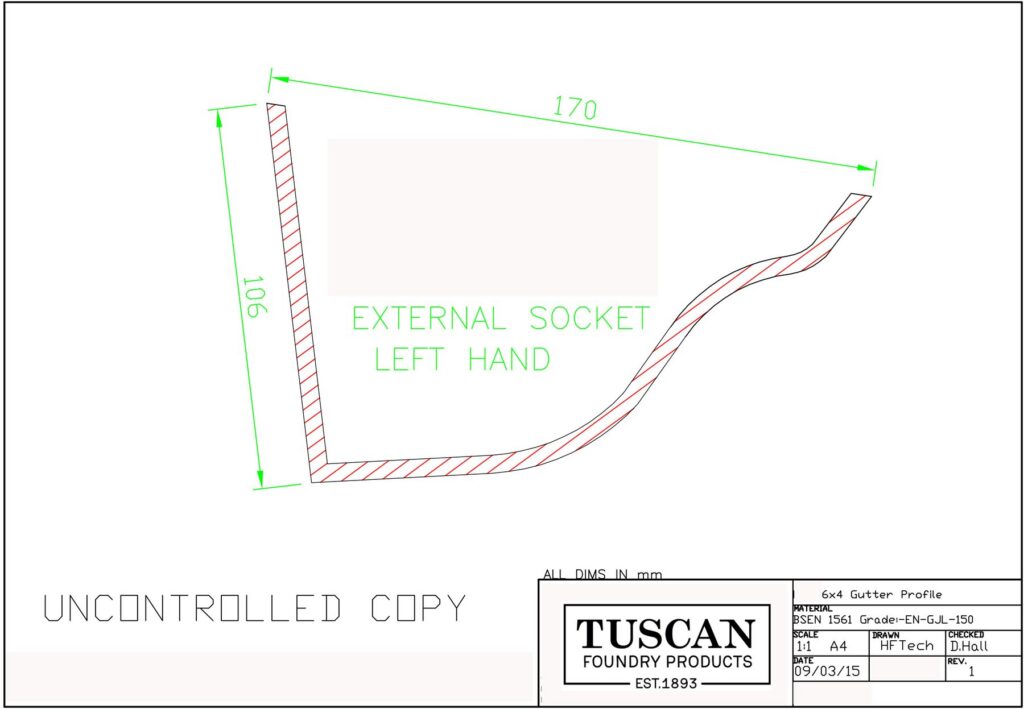

Technical drawing of a 6x4 deep Ogee cast iron gutter, external socket left hand

Profile drawing for the 6×4 deep Ogee gutter, external socket, left hand.

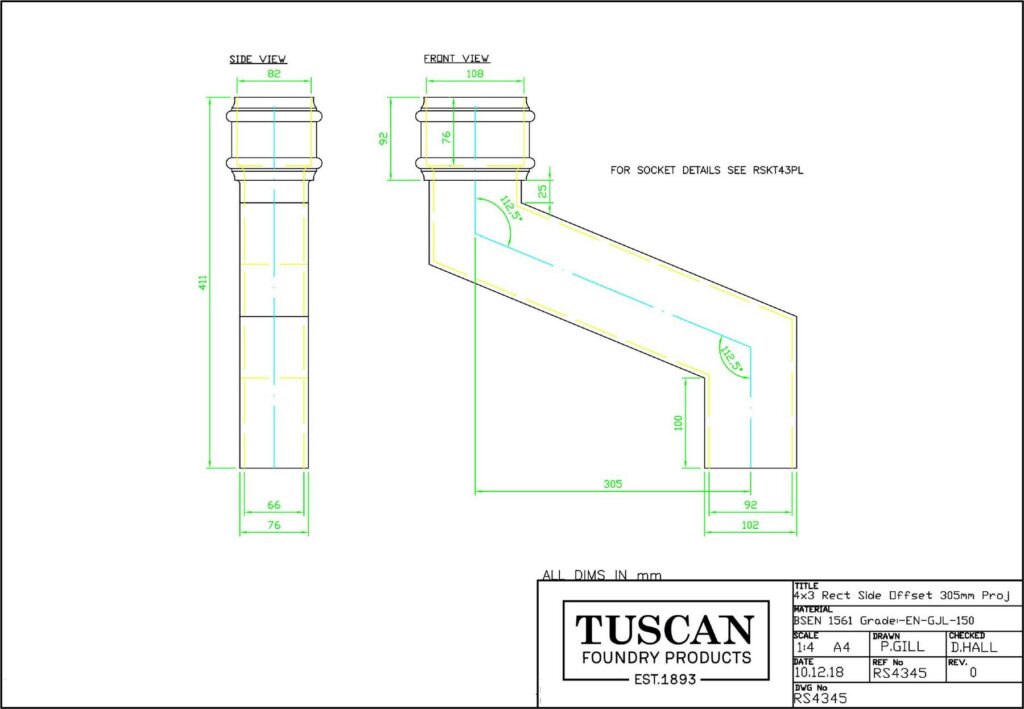

Technical drawing of a cast iron rectangular downpipe side offset, 305mm projection

Dimensioned drawing for a rectangular downpipe side offset, 305mm projection.

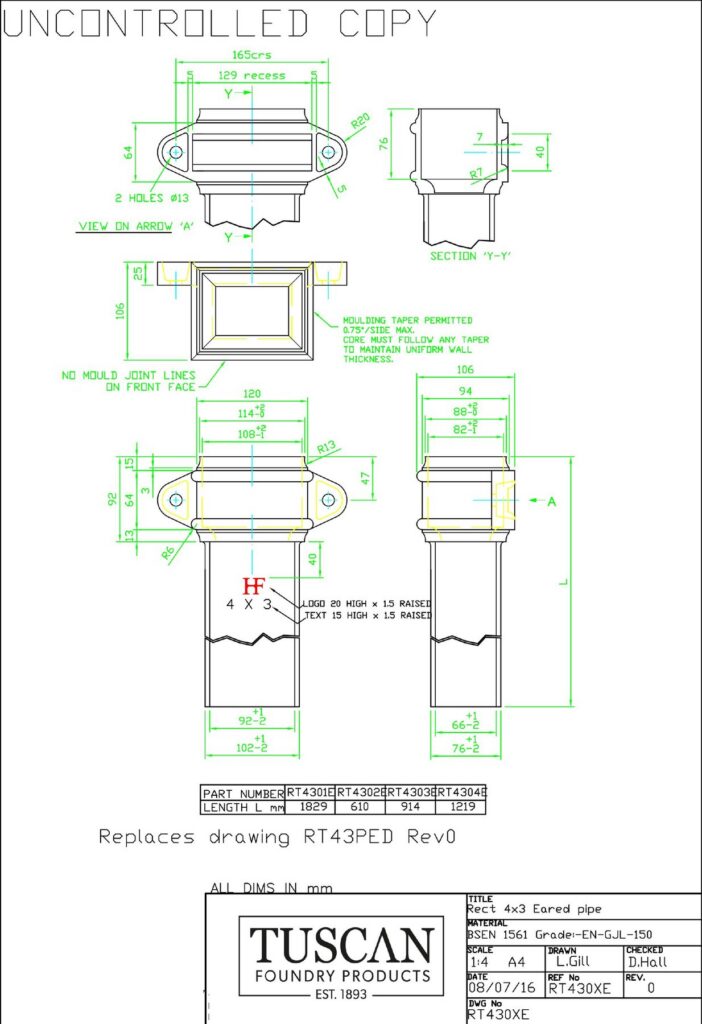

Technical drawing of a cast iron rectangular downpipe, 125 x 75mm

Profile drawing for our rectangular downpipe, 125 x 75mm.

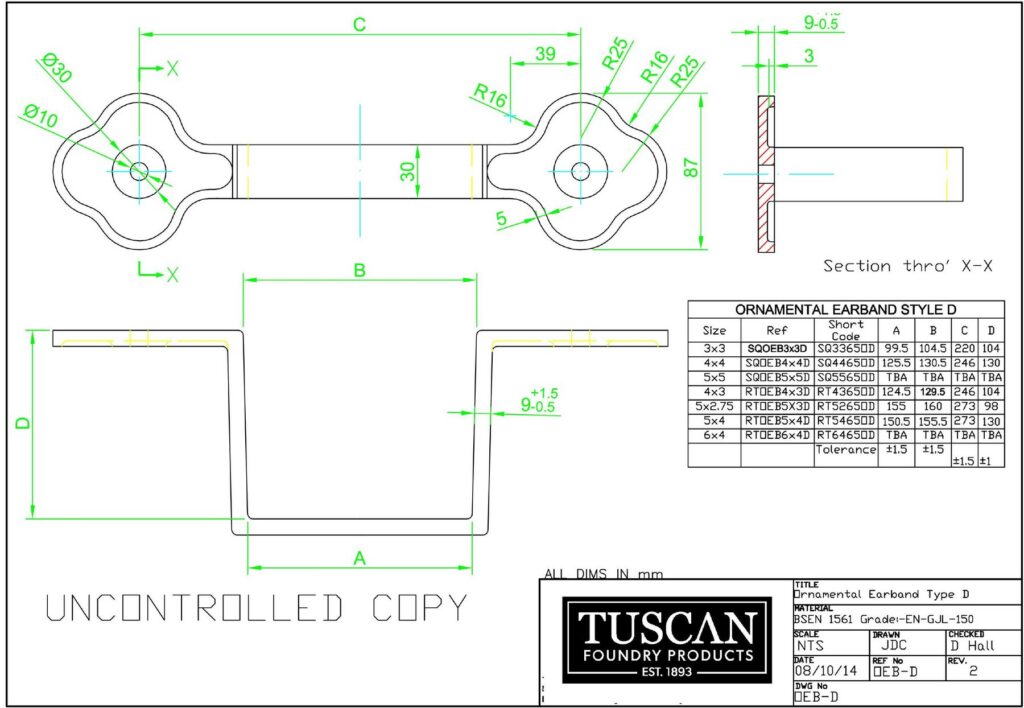

Technical drawing of a cast iron ornamental earband, Type D, for downpipe fixing

Pattern drawing for the ornamental earband, Type D, used to fix rectangular downpipes.

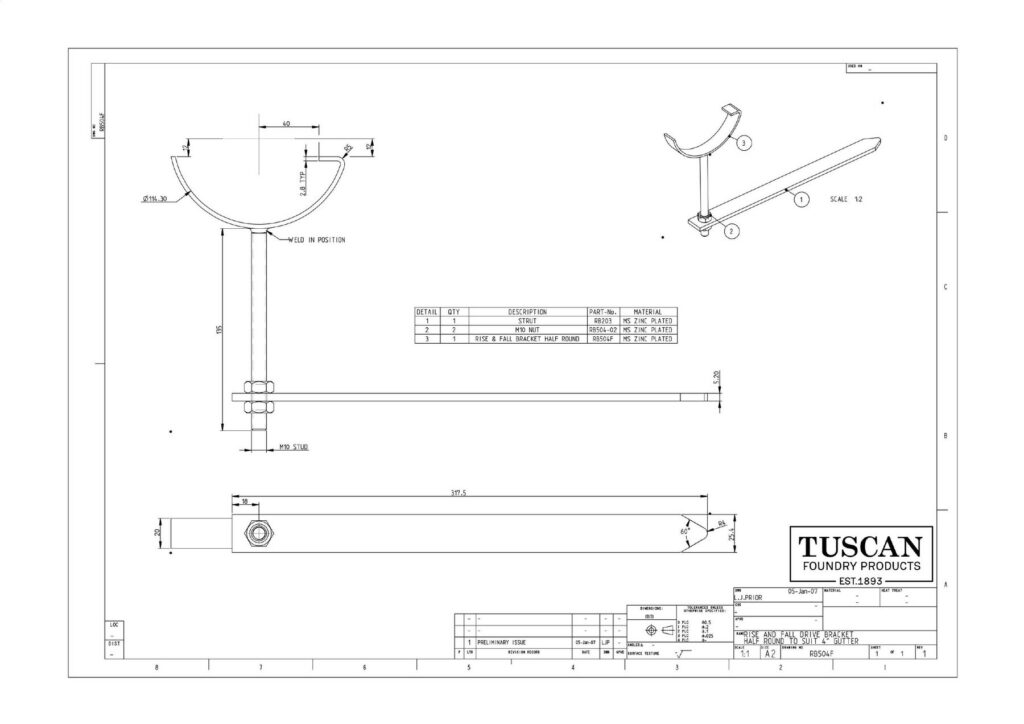

Assembly drawing of a cast iron rise and fall drive bracket for half round gutter

Assembly drawing for a rise and fall drive bracket, half round, to suit a 4 inch gutter.

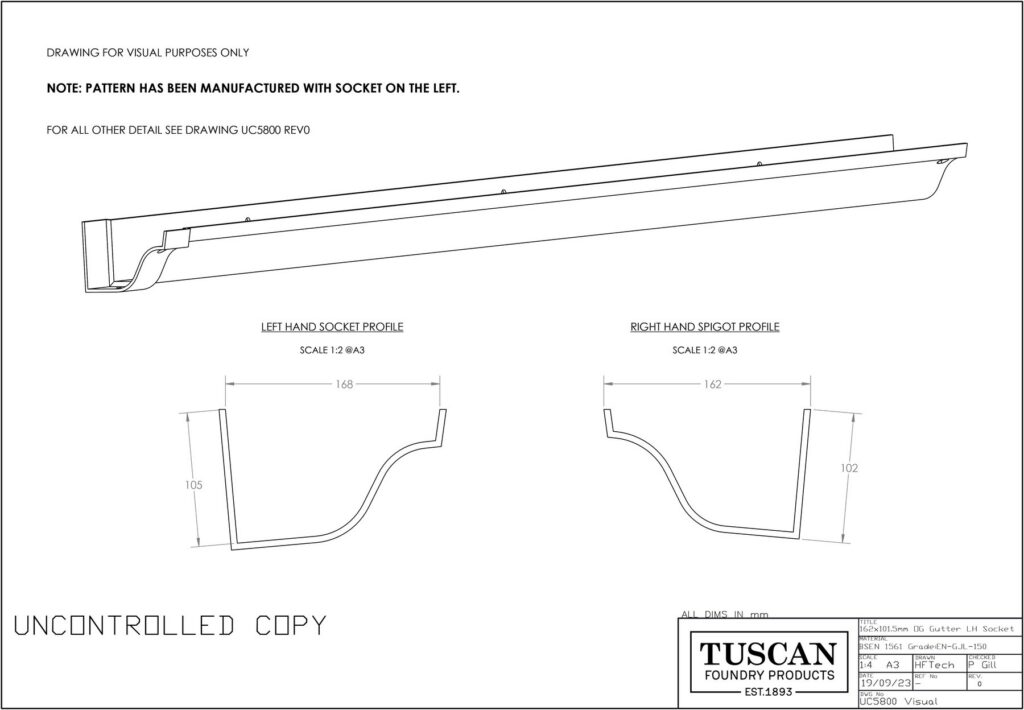

Technical drawing of a 162mm cast iron Ogee gutter, left hand socket

Profile drawing for a 162 x 101.5mm Ogee gutter manufactured with the socket on the left hand side.

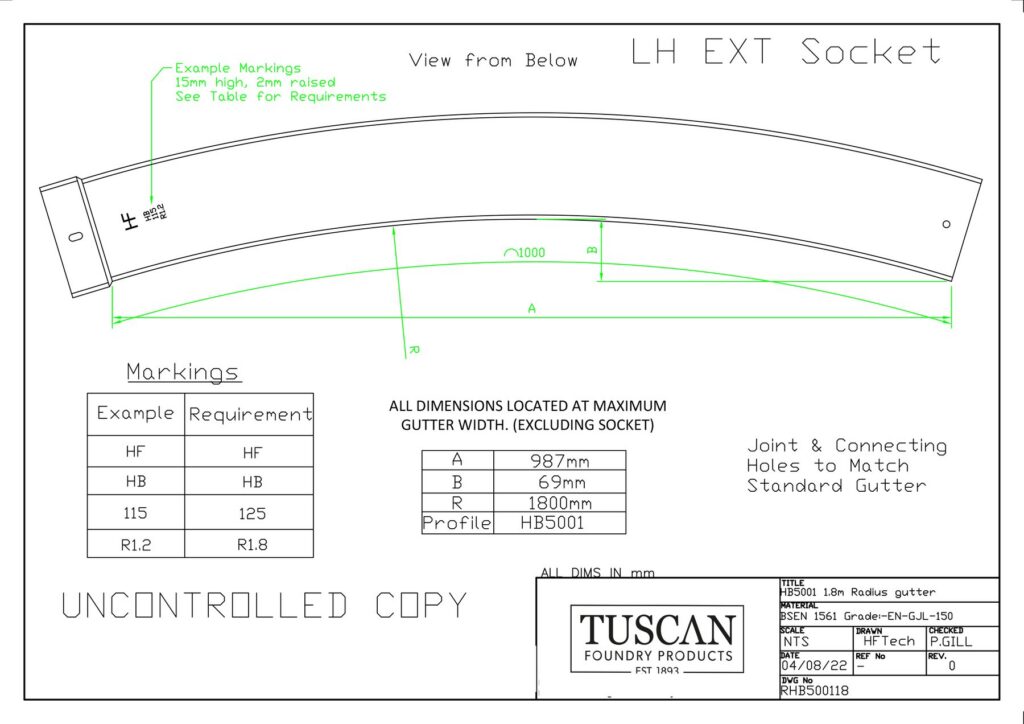

Technical drawing of a curved cast iron beaded gutter, 1800mm radius

Drawing for a curved beaded gutter section, 1800mm radius, left hand external socket.

Frequently asked questions

What do these drawings show?

Each drawing gives the profile section with full dimensions in millimetres, along with the drawing reference used in our pattern shop. Several also show the socket and spigot form, or a 3D view of the finished gutter.

Can I get a drawing for a profile not listed here?

Yes — this is a small selection from our full range. Contact us with the profile name or reference and we’ll send what’s available.

Do these drawings cover bespoke or copy-cast profiles?

These particular drawings cover profiles from our standard range. A copy-casting commission is drawn up separately once we’ve surveyed or received reference material for the pattern in question — see the Bespoke Projects section for more on that process.

Browse our full Gutters & Pipes range, or get in touch if you need a drawing for a specific profile and we’ll confirm what’s available.
