Restoring Cast Iron Guttering: A Guide to Long-Lasting Repairs and Sustainable Paint Choices

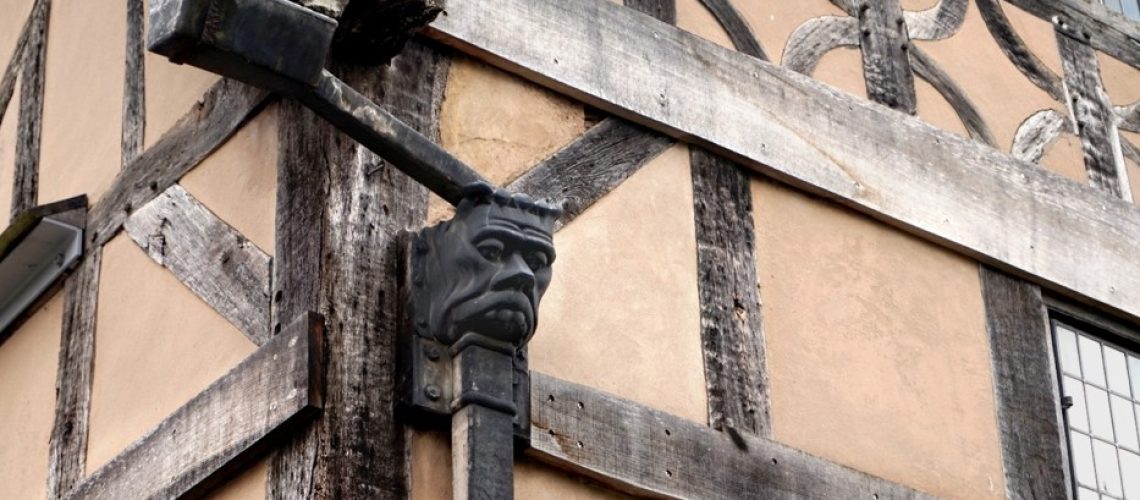

Cast iron guttering, a symbol of traditional British architecture, requires preservation, much as the buildings it adorns do
Paint-finishes-for-restoring-cast-iron-gutters-and-downpipes_historic-finishes

Cast iron guttering, a symbol of traditional British architecture, requires preservation, much as the buildings it adorns do. Both integrity and aesthetics will be upheld through proper maintenance and care. At Tuscan Foundry Products, we recognise the importance of authentic restoration and the value of working with the appropriate tools, techniques and materials.

This article will explain the process of restoring cast iron guttering, including the role of linseed oil paint as a traditional finish.

Preparation of Cast Iron Guttering

Preparation:

The following tools and materials are required for you to begin your restoration:

  • Heavy-duty scraper
  • Wire wheel and grinder
  • Rust converter (e.g., Rust Converter 661)
  • Flexible metal sealant (e.g., hybrid polymer glazing sealant)
  • Linseed Oil Red Oxide Primer
  • Fixing tools like MetaSet epoxy resin and Torx head fasteners

Removal of gutters and offsets makes it easier to clean, de-rust, and repair joints; however, downpipes are often cemented into the ground or walls, and so they can remain in place. Working in small sections avoids exposure to the frequently temperamental British weather.

Stripping and Cleaning the Gutters

For removing rust and old coatings, a Hamilton Prestige heavy-duty scraper, along with a grinder wire brush, is ideal. At Tuscan Foundry, we also recommend using a Sensor 661 rust converter to neutralise corrosion and leave a durable black base coat.

Once the cast iron surface is stripped, apply a degreaser, such as Multi-Solve 461. Rapid evaporation means this solvent doesn’t require rinsing, preserving surface integrity and saving time.

Repairing and Reassembling Cast Iron Gutters

When dismantling gutter sections, it’s essential to:

  • Check for internal moisture buildup at joints.
  • Grind clean all mating surfaces.
  • Reassemble using Tuscan Foundry’s Gutter Jointing Kit, rubber gaskets or a reliable sealant, such as our hybrid polymer glazing sealant.

MetaSet epoxy resin offers an effective solution for structural repairs, particularly for securing downpipes into walls. Hardwood plugs or Fischer fixings also provide excellent strength and security.

Finishing Touches and Painting

After sealing, allow at least 24 hours before painting. We always recommend finishing with two coats of traditional linseed oil red oxide primer, followed by three coats of linseed oil paint.

Linseed oil is a conventional choice, offering unmatched durability and environmental benefits:

Historic-Paint-Finishes-for-Cast-Iron_Linseed-OIl-Paints

Benefits of Historic Linseed Oil Paint

  • Eco-Friendly: Made from natural flaxseed oil, it’s biodegradable and non-toxic.
  • Breathable: Allows moisture to escape, preventing rust from forming under the paint.
  • Durable: Ages gracefully and can last decades with minimal maintenance.
  • Historic Authenticity: Perfect for listed buildings and heritage sites.
Chatworth-House_Peak-District_Derbyshire-listed-buildings

FAQs: Cast Iron Gutter Restoration

  1. Can I leave downpipes in place during restoration?
    Yes, if they are structurally sound and firmly attached, it’s often easier to leave them and remove only the gutters and offsets.
  2. What’s the best way to remove rust from cast iron?
    Use a combination of a wire brush grinder and Rust Converter 661 to neutralise existing rust.
  3. Is linseed oil paint really that effective?
    Absolutely. It’s breathable, sustainable, and proven to protect metal for decades.
  4. Can I use silicone to seal gutter joints?
    We recommend using hybrid polymer glazing sealant or rubber gaskets instead for a more durable bond.
  5. How should I fix a downpipe to a stone wall?
    Use Fischer fixings or MetaSet epoxy resin with Torx head screws for a firm hold.
  6. How long should I wait before painting after sealing?
    Wait at least 24 hours to ensure all sealants and fixatives are fully cured.
  7. Where can I find heritage-grade restoration products?
    Right here at Tuscan Foundry Products. We supply everything from primers to rust converters and authentic linseed oil paints.

Tuscan Foundry Products: Preserving Heritage Through Authentic Craftsmanship

Tuscan Foundry Products remains dedicated to preserving Britain’s architectural heritage through expert craftsmanship and authentic restoration. Our cast iron guttering systems combine traditional design with proven durability, ensuring both structural integrity and historical accuracy. By using time-honoured materials and finishes such as linseed oil paint, we help protect and enhance the timeless character of period and listed buildings. Trust Tuscan Foundry to provide sustainable, heritage-approved solutions that stand the test of time.
