Established 1893   |   BS 460:2002 Certified   |   UK & International Supply   |   Expert Technical Support   |   0333 987 4452

Shop / Heating & Radiators / Victorian Cast Iron Radiators / 4 Column Cast Iron Radiator (785mm h V4-78) Primer
Victorian Cast Iron Radiator
CODE V4-78-PRIMER Category Victorian Cast Iron Radiators

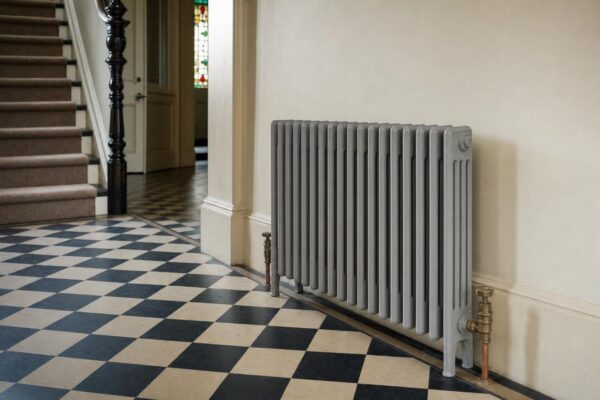

4 Column Cast Iron Radiator (785mm h V4-78) Primer

£135.00 – £1,350.00Price range: £135.00 through £1,350.00 +VAT

Made from quality cast iron our forged radiator delivers heat through out the house. The cast iron radiator combines classic authentic styling with modern reliability and comfort.

Clear

The Victorian 4 Column cast iron radiator at 785mm height (V4-78) is a mid-to-tall height radiator suited to standard-height Victorian and Edwardian rooms. The four-column profile replicates the original cast iron radiator pattern — the proportions and column spacing are true to period originals, making this the appropriate specification for listed buildings and conservation area properties where radiator authenticity matters.

This variant is supplied in white primer — ready for on-site painting in any specified colour. The primer finish is the preferred choice for conservation and restoration projects where a site-applied heritage colour or linseed oil paint finish is required.

Supply and assembly: Supplied in individual sections. Available pre-assembled up to 20 sections ready for installation. Supplied as a floor-standing version with integrated feet as standard — the wall-mounted only version must be requested at time of order. The radiator is supplied with ½” connections. Valves are not included and must be purchased separately if required.

Feet positions: Up to 20 sections — 2 feet, one at each end. Odd numbers 21–39 sections — 3 feet, one at each end and one centrally. Even numbers 22–40 sections — 4 feet, one at each end and 2 evenly spaced. Wall bracket requirements increase proportionally for larger radiators.

For specification support or a project quotation, call Tuscan Foundry Products on 0333 987 4452.

Additional information

Sections

3 Sections, 4 Sections, 5 Sections, 6 Sections, 7 Sections, 8 Sections, 9 Sections, 10 Sections, 11 Sections, 12 Sections, 13 Sections, 14 Sections, 15 Sections, 16 Sections, 17 Sections, 18 Sections, 19 Sections, 20 Sections, 21 Sections, 22 Sections, 23 Sections, 24 Sections, 25 Sections, 26 Sections, 27 Sections, 28 Sections, 29 Sections, 30 Sections

FAQ Categories

  • Cast Iron Airbricks
  • Cast Iron Airvents
  • Cast Iron Hopper Heads
  • Gutter & Pipe Brackets
  • Gutters & Pipes
  • Heating
  • Rooflight Openers
All FAQ
What building types is the Rectangular Box Cast Iron Hopper Head Plain No.46 (H460) suited to?

What building types is the Rectangular Box Cast Iron Hopper Head Plain No.46 (H460) suited to?

The H460 is well suited to Georgian, Regency, and Victorian buildings where a plain, undecorated rectangular hopper is the appropriate choice — particularly listed properties, conservation area buildings, and institutional or commercial buildings in historic town centres. Its clean, restrained form makes it equally appropriate on modern heritage-style construction where period accuracy is required without ornamental detail.

What sizes are your cast iron airbricks available in?

What sizes are your cast iron airbricks available in?

Our cast iron airbricks are available in three standard sizes: 225mm × 75mm (single course), 225mm × 150mm (double course), and 225mm × 225mm (square format). These correspond to the standard airbrick positions used in Victorian and Edwardian brickwork. Each size is available across the School Board, Louvre, and Ornamental pattern ranges.

What sizes and weights are available for the Ornamental Airbrick?

What sizes and weights are available for the Ornamental Airbrick?

The Ornamental Airbrick (OAB) is available in three sizes: 225mm × 75mm (2.8kg), 225mm × 150mm (4.1kg), and 225mm × 225mm (5.8kg). All sizes have a uniform depth of 75mm, making them consistent to install across a subfloor ventilation course.

Is a cast iron airbrick suitable for use on a listed building?

Is a cast iron airbrick suitable for use on a listed building?

Yes. Cast iron airbricks are the appropriate material for listed buildings and conservation area properties where the original ventilation grilles were cast iron. They maintain the character and material authenticity required by most conservation officers and listed building consent conditions. We recommend confirming the specific pattern with your conservation officer before ordering.

How does a hit and miss vent work?

How does a hit and miss vent work?

A hit and miss vent has a sliding plate on the back of the grille that can be opened, partially restricted, or closed entirely without removing the vent from the wall. This allows airflow to be controlled from inside the building, making it suitable for underfloor void ventilation and through-wall ventilation where adjustable airflow is needed.

How do I get a price for cast iron airbricks?

How do I get a price for cast iron airbricks?

Prices are shown on each product page. For project quantities, specification advice, or a formal quotation, please call 0333 987 4452 or use the contact form.

What finishes are available on your cast iron hopper heads?

What finishes are available on your cast iron hopper heads?

Our cast iron hopper heads are available in a standard primed and black-painted finish, ready for on-site topcoats. Heritage colour finishes and factory-applied linseed oil paint are available on request. Linseed oil paint is a vapour-permeable, period-appropriate finish particularly well suited to listed buildings and conservation area properties.

What is a corner hopper head and when do I need one?

What is a corner hopper head and when do I need one?

A corner hopper head collects rainwater from two gutters running at right angles and channels it into a single downpipe. They are typically required at internal roof valleys, on hipped roofs, and wherever two runs of gutter converge at a corner. The Regent H1A is designed specifically for this application and is sized to suit the most common gutter profiles.

Is a cast iron hopper head suitable for use on a listed building?

Is a cast iron hopper head suitable for use on a listed building?

Yes. Cast iron rainwater goods are widely accepted by conservation officers and historic environment bodies as the appropriate material for listed buildings. Tuscan Foundry's hopper heads are manufactured in solid cast iron to BS 460 specification and are suitable for all listed building grades. A linseed oil paint finish is also available, which is particularly appropriate for conservation projects.

Is a brass rooflight opener handle suitable for a listed building?

Is a brass rooflight opener handle suitable for a listed building?

Yes. Polished brass ironmongery is historically appropriate for period buildings and is generally acceptable to conservation officers for listed building projects. If you require confirmation for your specific scheme, we are happy to advise — call 0333 987 4452.
